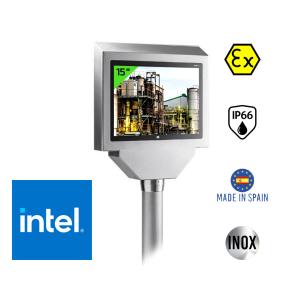

Ce panel PC assure une excellente communication avec des options comme Ethernet Gigabit, USB 3.1, HDMI, audio, Wi-Fi, 4G/LTE, GPS, Bluetooth, le tout dans un format sans ventilateur conçu pour les zones industrielles exigeantes.

| Caractéristique |
Valeur |
| technologie tactile |
Technologie tactile capacitive projetée multipoint IK08 |
| taille écran |
15" |
| résolution |
1024 x 768 |
| rétroéclairage |
LED |
| luminosité |
300 cd/m² |
| angle de vision |
176° / 176° |
| durée de vie des LED |
70 000 h |
| processeur |
Intel Atom® x5-E3940 Quad Core 1,60 GHz |
| mémoire |
2 Go extensible jusqu’à 8 Go |
| disque dur |
SSD 60/120/240 Go ou SATA 500 Go / 1 To |
| carte graphique |
Intel® HD Graphics |
| chipset |
Processeur SoC E3940 (TDP 10W/9,5W) |
| système d’exploitation |
Windows 10 Pro, Windows 10 IoT Enterprise, Linux |
| ports USB |
3 x USB 3.1 / 1 x USB 2.0 |
| réseau |
2 x Ethernet Gigabit Intel® |
| vidéo |
1 x HDMI |
| audio |
1 x sortie audio |
| extensions |
1 x Mini-PCIe / 1 x M.2 M-key (2242) / 1 x M.2 B-key (3042) |
| dimensions |
429 x 506 x 100 mm |
| poids |
9,2 kg |
| fixation |
VESA 100 x 100 |
| options |
écran haute luminosité, ports USB/COM supplémentaires, 3G/LTE + GPS, WiFi + Bluetooth |
| protection & matériau |
IP66 en acier inoxydable 316L |
| température de fonctionnement |
de 0 à 55 °C |
| température de stockage |
de 0 à 85 °C |
| humidité |
de 0 % à 95 % sans condensation |
| alimentation |
9-36 VDC (avec adaptateur externe 110-220V / 12VDC) |
| format |
| 4 |
3 |
| contraste |
| 2000 |
1 |
| ports série |
| aucun (en option |
1 x RS-232 / 1 x RS-232/422/485) |
| Système d'exploitation |
Linux, Windows 10 IoT, Windows 10 Pro |
| Processeur |
Pentium / Celeron / ATOM |
| Montage |
VESA |
| Indice de protection |
IP66 |
| Architecture |
Fanless |
| Dalle tactile |
Capacitif (multi-touch) |
| ATEX |
Oui
|
| SKU |
IRTEXW150SLT1DA |
| Marque |
IronTech
|
