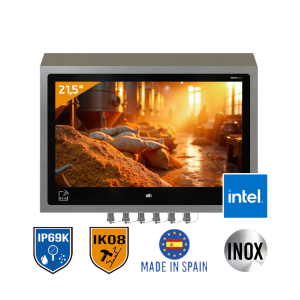

Son écran tactile capacitif projeté (PCAP), protégé IK08, assure une interface utilisateur fiable et précise, même en milieux humides ou exigeants. Ce Panel PC est personnalisable avec jusqu’à 5 ports IP69K (USB, Ethernet, ports série en option), et propose des extensions via ports M.2 pour modules LTE/GPS ou Wi-Fi/Bluetooth. Il est compatible avec Windows 10/11 Pro, Windows IoT Enterprise et Linux, pour une intégration souple et durable dans toute infrastructure industrielle à faible consommation.

| Caractéristique |
Valeur |
| technologie tactile |
Technologie tactile capacitive projetée IK08 |
| taille écran |
21,5" |
| résolution |
1920 x 1080 |
| rétroéclairage |
LED |
| luminosité |
250 cd/m² |
| angle de vision |
178/178 |
| durée de vie LED |
30 000 h |
| processeur |
Intel® N97 Quad Core 3,6 GHz |
| mémoire |
4 Go DDR5 évolutifs jusqu’à 16 Go |
| stockage |
SSD 60/120/240/480 Go ou SATA 500 Go / 1 To |
| carte graphique |
Intel® UHD Graphics |
| chipset |
N97 SoC intégré |
| système d’exploitation |
Windows 10/11 Pro, Windows 10/11 IoT Enterprise, Linux |
| ports USB |
1 x USB 3.2 (Gen 2) Type-A, 1 x USB 3.2 (Gen 2) Type-C, 4 x USB 2.0 |
| ports série |
en option 5 x RS-232 / 1 x RS-232/422/485 |
| ethernet |
2 x Intel® Gigabit Ethernet |
| vidéo |
2 x HDMI |
| audio |
1 x sortie audio / 1 x microphone |
| extension |
1 x M.2 2230 E-key, 1 x M.2 3042/3052 B-key, modem 3G/LTE+GPS en option, Wi-Fi 2,4/5GHz + Bluetooth en option |

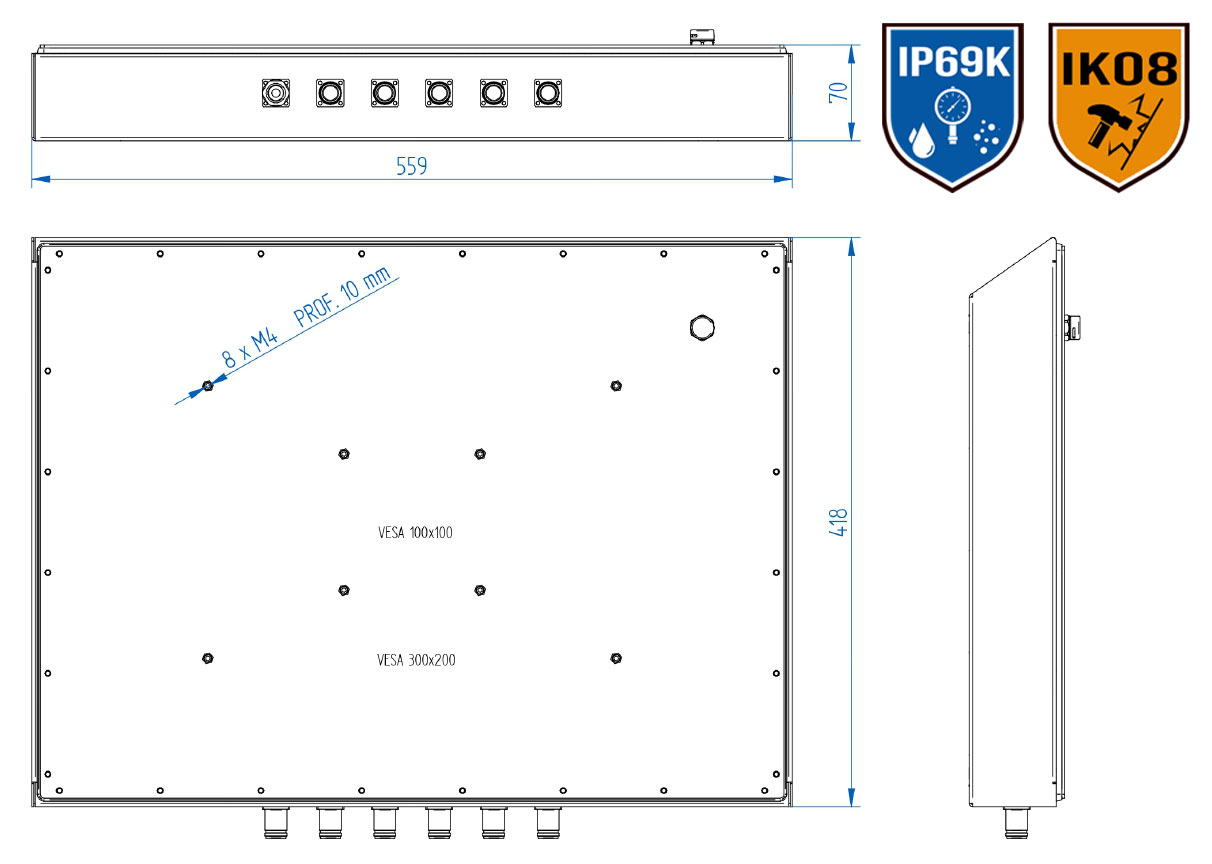

| dimensions |
559 x 418 x 70 mm |
| poids |
15 kg |
| montage |
VESA 100 x 100 |
| protection |
IP69K, boîtier en inox 316L |
| tension d’alimentation |
9-28Vdc (alimentation externe 110-220Vac / 12Vdc) |
| format |
| 16 |
9 |
| contraste |
| 5000 |
1 |
| Taille |
21.5" |
| Système d'exploitation |
Linux, Windows, Windows 10 IoT, Windows 10 Pro, Windows 11 |
| Fonctionnalités |
Ethernet RJ45, HDMI, Port USB, Port série |
| Montage |
VESA |
| Indice de protection |
IP69K |
| Architecture |
Fanless |
| Dalle tactile |
Capacitif (multi-touch) |
| Température extrême |
Oui
|
| Connectique M12 |
Oui
|
| INOX |
Oui
|
| SKU |
IRTW69215SL2XDA |
| Marque |
IronTech
|
