Ce Panel PC se distingue également par sa connectivité industrielle renforcée : ports USB 3.2, double Ethernet, options série (RS-232/422/485), Wi-Fi/Bluetooth, modem LTE/GPS et sorties HDMI/DP. Il est propulsé par un processeur Intel® Core™ i5 de 11e génération et accepte jusqu’à 64 Go de RAM, tout en restant silencieux et peu énergivore.

| Caractéristique |
Valeur |
| technologie tactile |
Technologie tactile capacitive projetée IK08 |
| taille écran |
21,5" |
| résolution |
1920 x 1080 |
| rétroéclairage |
LED |
| luminosité |
250 cd/m² |
| angle de vision |
178/178 |
| durée de vie LED |
30 000 h |
| processeur |
Intel® Core™ i5-1135G7 2,4 GHz (11e génération) |
| mémoire |
2 Go DDR4 évolutifs jusqu’à 64 Go |
| stockage |
SSD M.2 NVMe 120/240/480 Go ou SATA 500 Go / 1 To |
| carte graphique |
Intel® HD Graphics |
| chipset |
Intel® Tiger Lake i5-1135G7 SoC |
| système d’exploitation |
Windows 10 Pro, Windows 10 IoT Enterprise, Linux |
| ports USB |
4 x USB 3.2 (Gen 2) |
| ports série |
en option 2 x RS-232 / 2 x RS-232/422/485 |
| ethernet |
2 x Intel® Gigabit Ethernet |
| vidéo |
2 x HDMI / 2 x DisplayPort |
| audio |
1 x sortie audio / 1 x microphone |
| extension |
1 x M.2 E-Key (USB2.0 / PCIe x1), modem 3G/LTE+GPS en option, Wi-Fi 2,4/5GHz + Bluetooth en option |

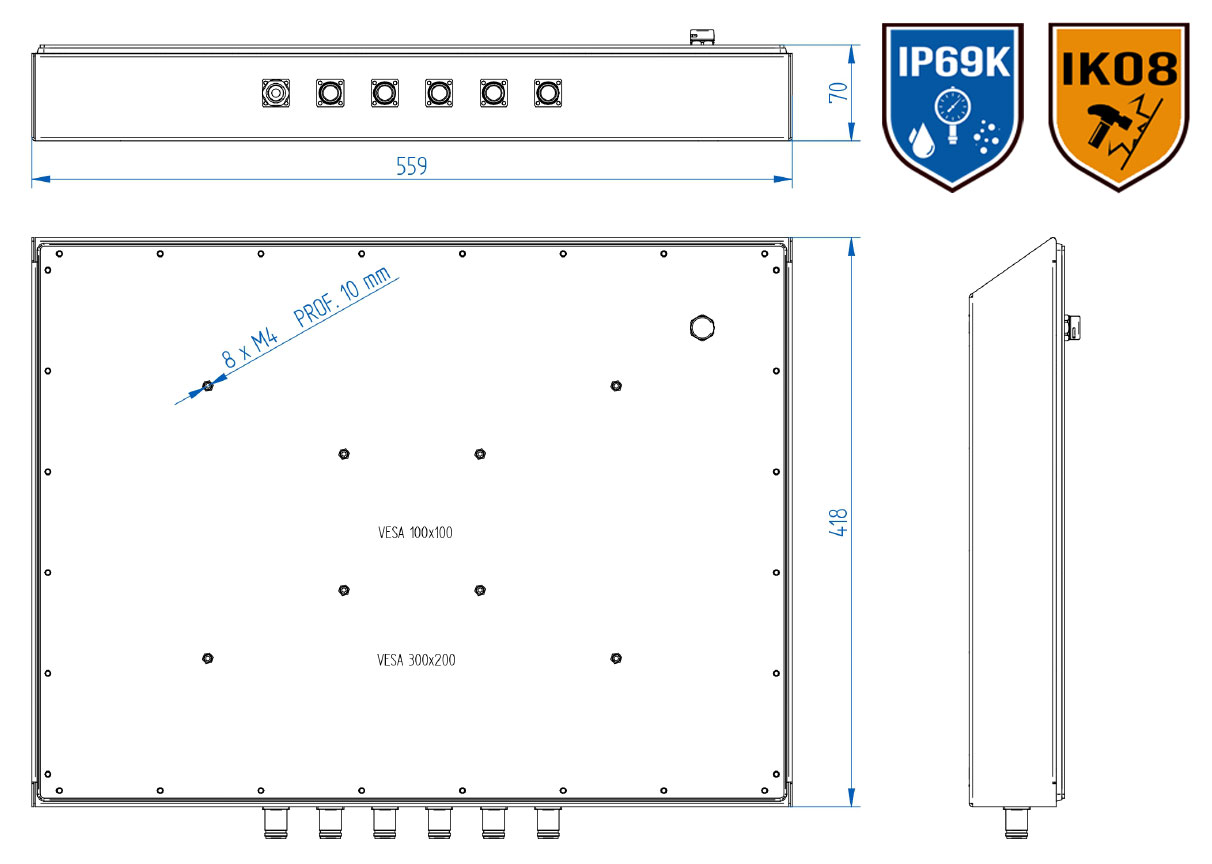

| dimensions |
559 x 418 x 70 mm |
| poids |
15 kg |
| montage |
VESA 100 x 100 |
| protection |
IP69K, boîtier en acier inoxydable 316L |
| tension d’alimentation |
9-24Vdc (alimentation externe 110-220Vac / 12Vdc) |
| tension d’alimentation optionnelle |
24Vdc |
| format |
| 16 |
9 |
| contraste |
| 5000 |
1 |
| Taille |
21.5" |
| Système d'exploitation |
Linux, Windows, Windows 10 IoT, Windows 10 Pro |
| Processeur |
Intel i5 |
| Montage |
VESA |
| Indice de protection |
IP69K |
| Architecture |
Fanless |
| Dalle tactile |
Capacitif (multi-touch) |
| Interface de communication |
Ethernet, Série, USB |
| Nombre de ports ethernet |
2 ports |
| Température extrême |
Oui
|
| Connectique M12 |
Oui
|
| Nombre de ports séries |
2 |
| Rétro-éclairage |
Oui
|
| INOX |
Oui
|
| SKU |
IRTW69215SLW7DA |
| Marque |
IronTech
|
Documentations techniques
