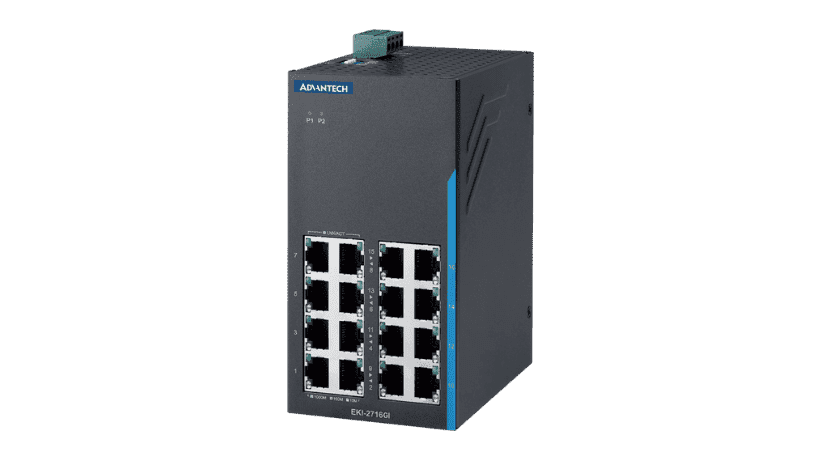

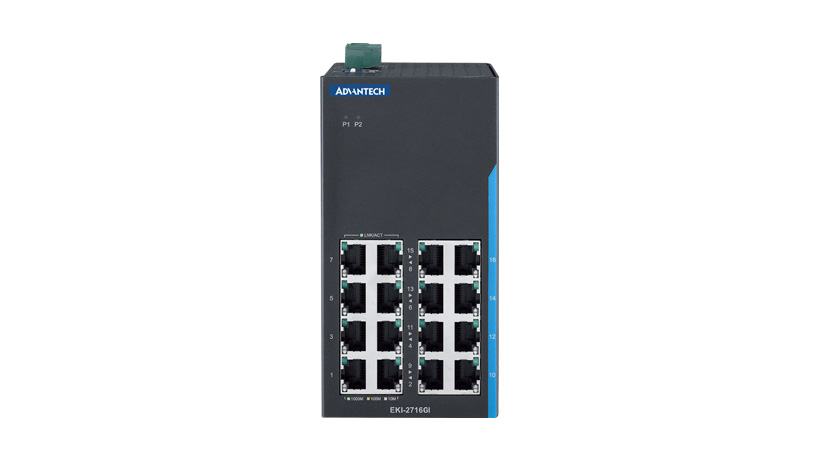

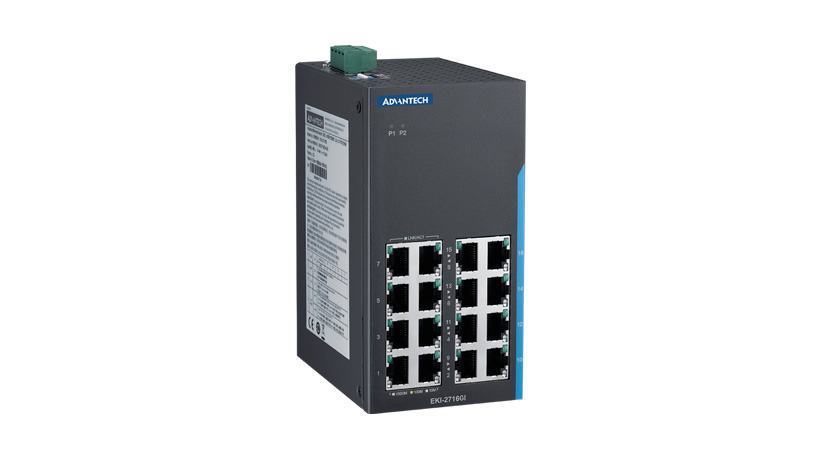

Switch rail DIN EKI-2716GI-A Advantech

Caractéristique	Valeur
Certification
EMI	CE, FCC Class A, BSMI
EMS	EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)
Safety	UL 62368
Environnement
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Operating Temperature	-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
Fiber Port Number	-
Fiber Port Interface	-
Fiber Port Connector Type	-
Fiber Transmission Distance	-
Fiber Transmission Speed	-
RJ-45 Port Number	16
RJ-45 Port Connector Type	RJ-45
RJ-45 Transmission Distance	100 m
RJ-45 Transmission Speed	10/100/1000 Mbps
Mécanisme
Mounting (DIN-rail)	Yes
Mounting (Stack)	-
Mounting (Panel)	-
Mounting (Wall)	Yes
Mounting (Rack Mount)	-
Mounting (Pole Mount)	-
Dimensions (W x H x D)	72 x 140 x 105 mm
Enclosure (Plastic)	-
IP Rating	IP30
Weight	0.7 kg
PoE Information
PoE Port Number	-
PoE Budget	-
PoE Output	-
Support PoE	No
Alimentation

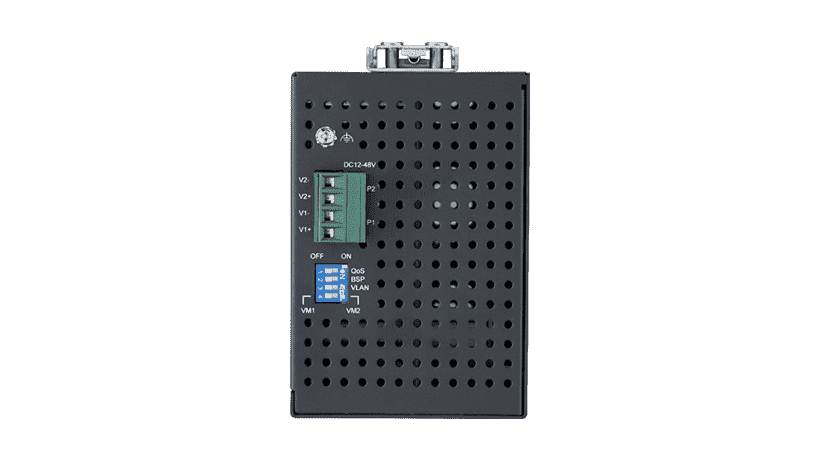

Power Connector Type	4-pin removable terminal (power)
Power Consumption	Max. 9.6W
Power Input (AC)	-
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	-
Power Input (Battery)	-
Power Operating Current	0.8A @ 12 V
Redundant Dual Inputs	Yes
Propriétés du commutateur
Jumbo Frame	10K bytes
MAC Table Size	8K
Packet Buffer Size	4.1M bit
Switch Fabric Speed	32Gbps
Garantie
Warranty Period	5 years
Protection
Overload Current	Present
Reverse Polarity	Present
Dimensions	160x235x100mm
Poids	1200g
SKU	EKI-2716GI-A
Marque	Advantech

EKI-2716GI.STEP - 3D Model
Mis à jour le 01/07/2026 (GLB)

Fiche technique constructeur
Mis à jour le 30/03/2026 (PDF)

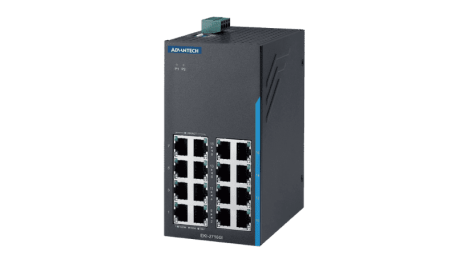

EKI-2716GI-A Switch Industriel non managé x16 LAN GB rail DIN
