| Ports RJ45 10/100/1000Mbps |
8 |
| Ports SFP 100/1000Mbps |
2 |
| Consommation |
Jusqu'à 360W avec module d'extension |
| Console |
1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Alimentation |
Redondante |
| Nombre de port max a ajouter par extension |
8 |
| Dimensions |
152x76x127mm |
| Poids |
6.6kg |
| Nombre de queues |
8 |
| Nombre de VLAN |
256 |
| Nombre de routes IPv4 |
2000 |
| Nombre de routes IPv6 |
512 |
| Nombre d'instances Spanning tree |
128 |
| ACL |
1.5k |
| DRAM |
2GB |
| Jumbo Frames |
8996 bytes |
| Consommation |
32W |
| Fonction L2 |
IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, and RSTP |
| Multicast |
IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier |
| Management |
WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF |
| Sécurité |
Port security, 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, dynamic ARP inspection, IP source guard, guest VLAN, MAC authentication bypass, 802.1x multidomain authentication, storm control - unicast, multicast, broadcast, SCP, SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, Access Lists (PACL,VACL,RACL), SUDI 2099 (Secure Unique Device identifier), Full Flexible NetFlow (FNF), MACsec-128 |
| Qualité de service (QoS) |
Ingress policing, rate limit, egress queuing and shaping, auto QoS |
| IPv6 |
IPv6 host support, SNMP over IPv6, HTTP/HTTP(s) over IPv6, SNMP over IPv6, Syslog over IPv6, DHCPv6 relay source, DHCPv6 bulk lease query (RFC 5460), IPv6 stateless Auto Config, SCP/SSH, Radius, TACACS+, NTP over IPv6, IPv6 VRF aware BGPv6, IPV6 ND cache expire, IPv6 support for TFTP, IPv6 DNS transport, IPv6 QoS, IPv6 FHS RA Guard, IPv6 FHS DHCPv6 Guard |
| Routing L3 |
Inter-VLAN routing, Static routing |
| Ethernet industriel |
CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power) , PROFINET |
| Redondance |
Resilient Ethernet Protocol (REP) ring, PROFINET-Media Redundancy Protocol (MRP), REP Preferred, Fast REP |
| Utilitaires |
Utility Dying gasp, SCADA protocol classification - GOOSE messaging, MODBUS TCP/IP |
| Automatisme |
YANG, NETCONF, RESTCONF |
| IOx |
1 compatible container docker |
| Protocole de routing |
OSPF (v4 and v6), BGP (v4 and v6), RIP (V1 and V2), ISIS (v4 and v6), EIGRP (v4 and v6), Policy based routing(PBR), VRRP(v4 and v6), HSRP(v4 and v6) |
| Virtualisation |
Vrf-lite |
| Sécurité |
MACsec-256 |
| Multicaste IP |
PIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), PIM sparse dense mode, MSDP, Multicast routing BSR (IPv4/IPv6), Auto RP(IPv4), Embedded RP(IPv6) |
| Compatible Cisco DNA |
Oui (Advantage et essentials) |
| Visibilité |
Cisco DNA assurance, Device 360 avec licence advantage |
| Système de contrôle automatisme |
IEC 62443-4-1, IEC 62443-4-2 |
| Conformité émissions électromagnétique |
FCC 47 CFR Part 15 subpart B Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 Class A, ICES 003 Class A, CNS 13438 Class A3, KN 32 Class A3, EN 300 386 |
| Conformité immunité electromagnétique |
CISPR 24, EN 55024, KN 353, EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV), EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP), EN 61000-4-4 Electromagnetic Fast Transients (4kV), EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP), EN 61000-4-6 Conducted RF (10Vrms UTP), EN 61000-4-8 Power Frequency Magnetic Field (1000A/m), EN 61000-4-10 Pulsed Magnetic Field (30 A/m), EN 61000-4-16 Conducted CM Disturbances (30V, Cont/ 300V, 1 sec), EN 61000-4-17 Ripple Immunity DC Power (10%), EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz), EN-61000-4-29 DC Voltage Dips and Interruptions |
| Standards industriels |
EN 61000-6-2 Industrial Immunity, EN 61000-6-4 Industrial Emissions, EN 61000-6-1 Light Industrial Immunity, EN 61326-1 Measurement, Control and Laboratory Equipment, IEEE 1613 Electric Power Stations Communications Networking, EN/IEC 61850-3 Electric Substations Communications Networking, EN50121-4 Railway – Signaling and Telecommunications Apparatus, ODVA Industrial EtherNet/IP, NEMA TS 2-20163, IP30 |
| Certification |
UL/CSA 60950-1,CB to IEC 60950-1, UL/CSA 62368-1, CB to IEC 62368-1, UL/CSA 61010-2-201, UL121201(Class l, Div 2, groups A-D), CSA 213 (Class l, Div 2, groups A-D), UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC), IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC), EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) |
| Température de fonctionnement |
-40°C à +70°C |
| Résistance à l'humidité |
IEC 60068-2-78, IEC 60068-2-30 |
| Résistance au chocs et vibrations |
IEC 60068-2-27, MIL-STD-810, Method 514.4 |
| Résistance à la corrosion |
IEC 60068-2-52, IEC 60068-2-60 |
| Nombre de ports ethernet |
2 ports, 8 ports |
| Ports SFP |
2 ports |
| Manageable ? |
Manageable |
| Débit |
10/100/1000Mbps |
| Température extrême |
Oui
|
| Fibre optique |
Mono-mode, Multi-mode |

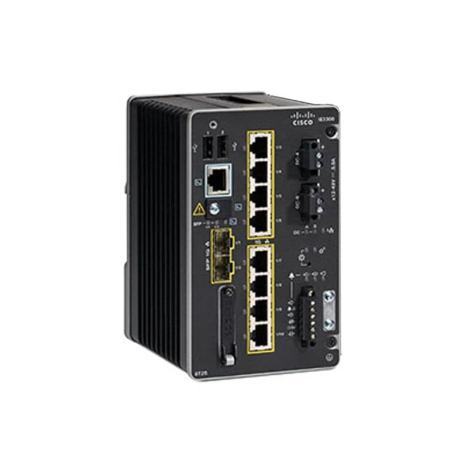

| SKU |
IE-3300-8T2S |
| Marque |
CISCO
|
