| Ports réseaux RJ45 |
8 (Max 16) |
| Ports réseaux PoE/PoE+ |
8 (Max 16) |
| Débit des ports réseaux |
10/100/1000Mbps |
| Ports SFP |
2 |
| Débit ports SFP |
100/1000Mbps |
| Puissance totale PoE |
240W (avec module d'extension) |
| Puissance totale PoE+ |
480W (avec module d'extension) |
| Alarmes |
2 en entrée, 1 en sortie |
| Port console |
1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Alimentation |
redondante (2) |
| Dimensions |
152x112x135mm |
| Poids |
2.3kg |
| Fixation |
Wall, Rail DIN |
| Nombre de queues réseau |
8 |
| MAX Adresse |
8K |
| Groupe IGMP multicast |
1K |
| Nombre de VLANs |
256 |
| Routing indirect IPV4 |
2000 |
| Routing indirect IPv6 |
512 |
| Instances STP (Spanning Tree Protocole) |
128 |
| DRAM |
4GB |
| Flash |
1.5GB |
| Jumbo Frames |
2000 bytes |
| Alimentation sans PoE |
9.6 a 60VDC |
| Alimentation avec PoE |
48V (redondante) |
| Alimentation en PoE+ |
54V (redondante) |
| Consommation sans PoE |
47W |
| Fonctionnalités de switching L2 |
IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PaGP, LACP VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, and RSTP |
| Multicast |
IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier |
| Gestion |
WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF |
| Sécurité |
Port security, 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, dynamic ARP inspection, IP source guard, guest VLAN, MAC authentication bypass, 802.1x multidomain authentication, storm control - unicast, multicast, broadcast, SCP, SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, Access Lists(PACL/RACL/VACL), SUDI 2099 (Secure Unique Device identifier), Full Flexible NetFlow |
| Qualité de service (QoS) |
Ingress policing, rate limit, egress queuing/shaping, auto QoS |
| IPv6 |
IPv6 host support, SNMP over IPv6, HTTP/HTTP(s) over IPv6, SNMP over IPv6, Syslog over |
| Routing L3 |
Inter-VLAN routing, Static routing |
| Ethernet industriel |
CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power), PROFINET |
| Redondance |
Resilient Ethernet Protocol (REP) ring, PROFINET-Multi Ring Protocol (MRP), REP Prefrerred, Fast REP, Parallel redundancy protocol (PRP)2 , PTP over PRP |
| Utilitaires |
Utility Dying gasp, SCADA protocol classification – GOOSE messaging, MODBUS TCP/IP |
| Automatisme |
YANG, NETCONF, RESTCONF |
| Management industriel |
Layer 2 switching with 1/1 switch Network Address Translation (L2NAT) |
| Système d'exploitation |
IOx (Compatible Docker) |
| Protocoles IP de routing |
OSPF (v4 and v6), BGP (v4 and v6), ISIS (v4 and v6), RIP (v1 and v2), EIGRP (v4 and v6), Policy based routing (PBR), VRRP (v4 and v6), HSRP (v4 and v6) |
| Virtualisation |
Vrf-lite |
| Sécurité |
MACsec-256, SGT/SGACL |
| Multicast IP |
PIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), and PIM sparse-dense mode, MSDP, Multicast routing BSR (IPv4/IPv6), Auto RP (IPv4), Embedded RP (IPv6) |
| Spécifications automatisme industriel |
IEC 62443-4-1, IEC 62443-4-2 |
| Conformité émissions électromagnétique |
FCC 47 CFR Part 15 subpart B Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 Class A, ICES 003 Class A, CNS 13438 Class A3, KN 32 Class A3, EN 300 386 |
| Conformité immunité electromagnétique |
CISPR 24, EN 55024, KN 353, EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV), EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP), EN 61000-4-4 Electromagnetic Fast Transients (4kV), EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP), EN 61000-4-6 Conducted RF (10Vrms UTP), EN 61000-4-8 Power Frequency Magnetic Field (1000A/m), EN 61000-4-10 Pulsed Magnetic Field (30 A/m), EN 61000-4-16 Conducted CM Disturbances (30V, Cont/ 300V, 1 sec), EN 61000-4-17 Ripple Immunity DC Power (10%), EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz), EN-61000-4-29 DC Voltage Dips and Interruptions |
| Standards industriels |
EN 61000-6-2 Industrial Immunity, EN 61000-6-4 Industrial Emissions, EN 61000-6-1 Light Industrial Immunity, EN 61326-1 Measurement, Control and Laboratory Equipment, IEEE 1613 Electric Power Stations Communications Networking, EN/IEC 61850-3 Electric Substations Communications Networking, EN50121-4 Railway – Signaling and Telecommunications Apparatus, ODVA Industrial EtherNet/IP, NEMA TS 2-20163, IP30 |
| Certification |
UL/CSA 60950-1,CB to IEC 60950-1, UL/CSA 62368-1, CB to IEC 62368-1, UL/CSA 61010-2-201, UL121201(Class l, Div 2, groups A-D), CSA 213 (Class l, Div 2, groups A-D), UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC), IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC), EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) |
| Température de fonctionnement |
-40°C à +70°C |
| Résistance à l'humidité |
IEC 60068-2-78, IEC 60068-2-30 |
| Résistance au chocs et vibrations |
IEC 60068-2-27, MIL-STD-810, Method 514.4 |
| Résistance à la corrosion |
IEC 60068-2-52, IEC 60068-2-60 |
| Nombre de ports ethernet |
16 ports, 2 ports, 24 ports, 8 ports |
| Ports SFP |
2 ports |
| Manageable ? |
Manageable |
| Débit |
10/100/1000Mbps |
| Température extrême |
Oui
|
| PoE |
Oui
|
| Fibre optique |
Mono-mode, Multi-mode |

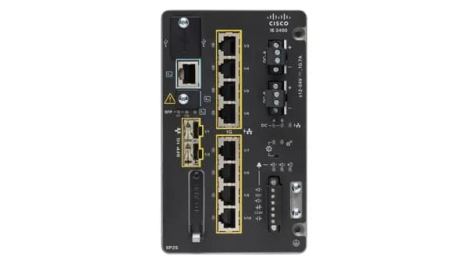

| SKU |
IE-3400-8P2S |
| Marque |
CISCO
|
