| Écran |
17 pouces, format 4-3, résolution SXGA 1280 x 1024 |
| Processeur |
Intel N97, Quad Core 2.0GHz, 6M Cache |
| Écran tactile |
résistif 5 points |
| Mémoire |
1 x DDR5-4800MHz avec 8 Go installés par défaut (extensible jusqu’à 16 Go) |
| Affichage supplémentaire |
1 x DP - 1 x USB-C |
| Ports LAN |
2 ports LAN Intel 2.5GbE |
| Ports USB |
2 x USB 3.2, 1 x USB-C |
| Interfaces COM |
2 x RS232-422-485, 1 x RS232 |
| Entrée audio |
1 x sortie ligne (Line-out) |
| Stockage |
1 x M.2 2242 Key B (SATA) |
| Entrée d’alimentation |
DC 24V |
| Taille LCD |
17" |
| Résolution |
SXGA 1280 x 1024 |
| Luminosité |
400cd-m² |
| Contraste |
1000-1 |
| Couleurs |
16,7 millions |
| Angle de vision |
80° (U), 80° (D), 85° (L), 85° (R) |
| Rétroéclairage |
LED |
| Transmission lumineuse |
78% |
| Interface |
USB |
| BIOS |
AMI BIOS |
| Technologie |
Intel® Platform Trust Technology (Intel® PTT) |
| Bouton d’alimentation |
Oui |
| Alimentation |
Entrée DC 24V avec bloc terminal à 3 broches |
| USB |
2 x USB 3.2 Type A, 1 x USB Type C (prend en charge DP1.4a Alt. mode jusqu’à 4K@60Hz) |
| Ethernet |
2 x RJ45 (10-100-1000-2500Base-T Ethernet compatible, support WoL et PXE) |
| Affichage |
1 x DP1.4a (jusqu’à 4K@60Hz) |
| COM |
DB9 pour COM1 & COM2 (RS232-422-485 avec contrôle de flux automatique), DB9 pour RS232 |
| Audio |
oui (sortie) |
| Codec audio |
Realtek ALC888S-VD |
| Mini-PCIe |
emplacement mini-PCIe pour carte de connexion sans fil (voir fiche technique) |
| M.2 |
1 x M.2 2242 Key B (SATA), 1 x M.2 2230-3042-3052 Key B (PCIe x1, USB 3.0, USB 2.0, SIM) pour 5G-LTE |
| Slot SIM |
oui, 1 x Nano SIM |
| Couleur |
Aluminium Pantone 400C - RAL 090 80 10, boîtier noir ou argent |
| Protection IP |
IP65 (avant) |
| Montage |
Panneau, mural, sur pied, VESA 100mm x 100mm |
| Alimentation |
24V DC ± 20%, mode AT-ATX, option adaptateur AC-DC 60W |
| Vibration |
2Grms |
| Choc |
20G |
| Température de fonctionnement |
0°C à 50°C (environnement ambiant avec circulation d’air) |

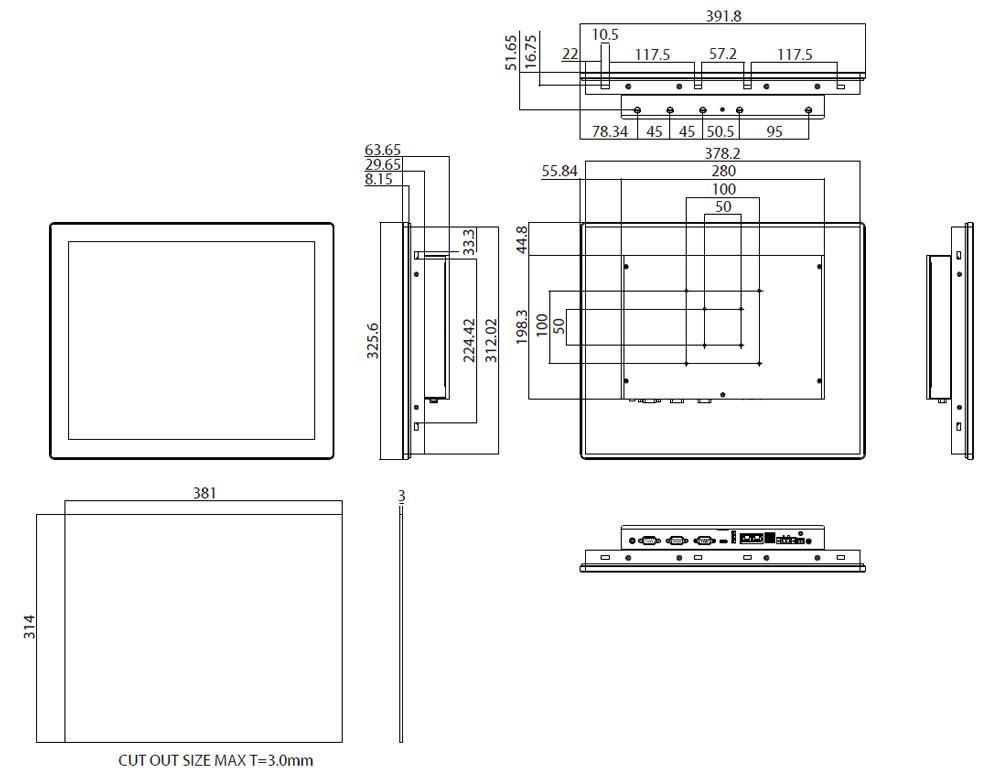

| Dimensions |
391.8 x 325.6 x 63.65 mm (cadre fin) |
| Poids |
5,4 kg |
| CE |
EN55032, EN55035 |
| FCC |
Classe A |
| Systèmes d’exploitation |
Windows 10 64-bit |
| Système d'exploitation |
Windows 10 Pro |
| Processeur |
Pentium / Celeron / ATOM |
| Montage |
Encastrable, Fixation murale, VESA |
| Indice de protection |
IP65 |
| Architecture |
Fanless |
| Dalle tactile |
Résistif |
| Interface de communication |
Ethernet, Série, USB |
| Nombre de ports ethernet |
2 ports |
| Nombre de ports séries |
3 |
| SKU |
APPC 1760-A01 |
| Marque |
Nexcom
|
