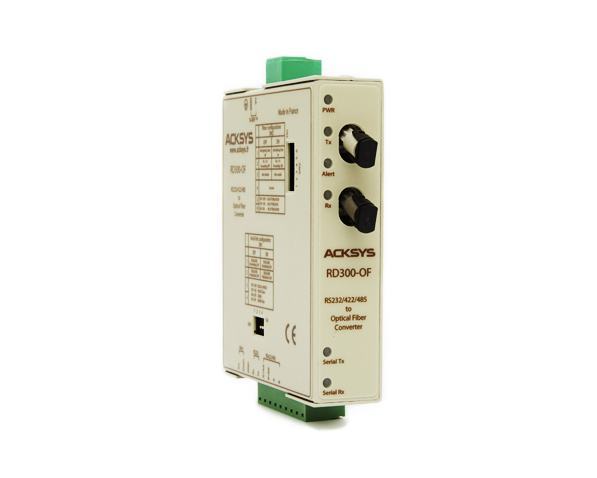

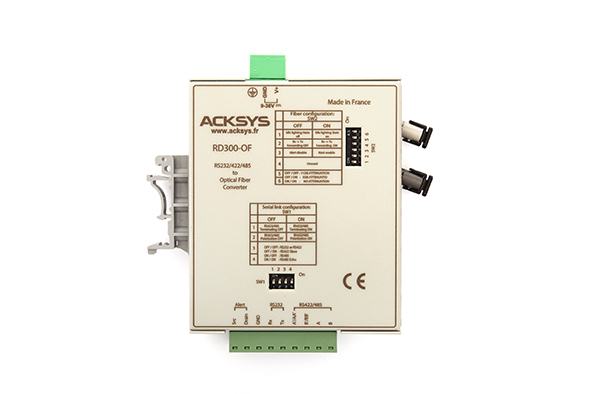

RD300-OF Media Converter: RS232/422/485 <-> Multimode FO (silica, ST connectors), din rail format
- 3-in-1 serial interface: RS232/RS422/RS485
- Serial connection up to 2Mbps in RS422/RS485, 1 Mbps in RS232
- Stable and error-free communication even in the case of EMI/RFI interference
- Transmission up to 5000 m on 100/140 µm fiber, ST-type connectors
- Automatic and integrated line reversal management in RS485 mode
- Supports Half-duplex and Full-duplex modes, bidirectional transmission
- TxD & RxD activity LEDs for copper & fiber optic serial connection plus fiber break diagnostics
- Wide range DC power supply (+9VDC to 36 VDC)
- Point-to-point mode
- ESD & HF protection on copper connection
- Compact & robust metal casing, CE standards, Din Rail 35 mm mounting
