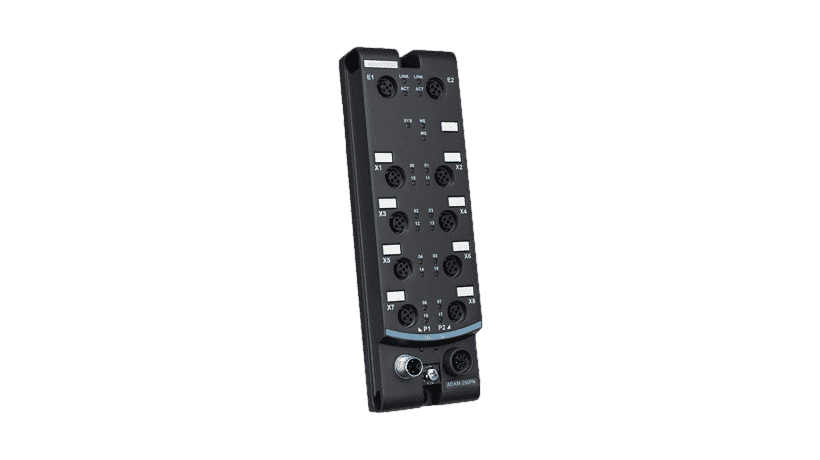

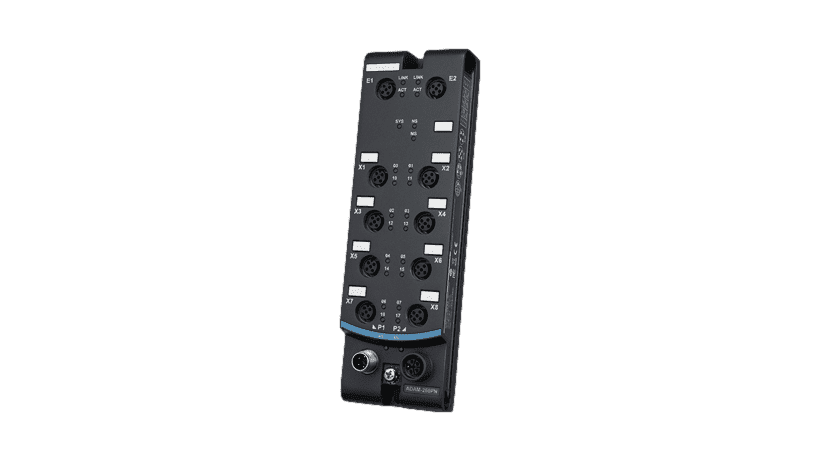

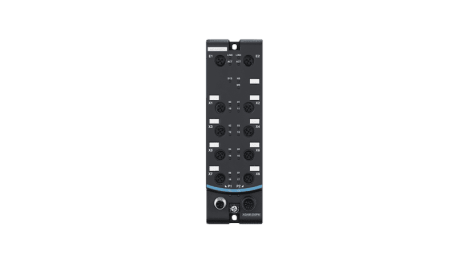

ADAM-250PN-A Industrial I/O Module 16-ch DIO with IP67 and PROFINET Modbus/TCP

The Advantech ADAM-250PN-A with 16-ch DIO M12 I/O Module is a rugged and reliable solution for distributed machine-mount applications in harsh environments . This IP67-rated module, simplifies installation by eliminating the need for protective cabinets.

Key Features:

• 16-channel configurable digital I/O with 2-port power and Ethernet daisy chain
• Certified IP67 for resistance to EMC, vibration, dust, oil, and humidity
• Supports PROFINET, Modbus/TCP, and MQTT protocols
• IEC 61131-2 Type 3 sink DI and fast response source DO
• Integrated I/O and power diagnostic functions with DO safety value protection
• LED indicator for monitoring system, network, diagnostic, and power status
• Compatible with M12 Screw lock and Push-pull fast-locking connections
• Built-in power supply for sensors, actuators, and encoders from each I/O port
• Conformal Class B (RT), 1ms
• Compliance with EN 50155 (EN 50121-3-2 & EN 50121-4)

The module's rugged design allows for cabinet-free installation on machine fronts, side walls, or other demanding environments. It features comprehensive I/O power diagnostics and offers protection functions for enhanced operational safety.
