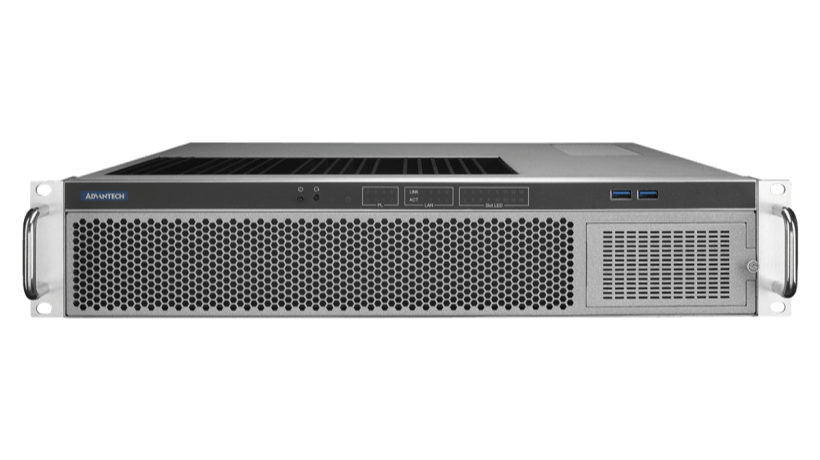

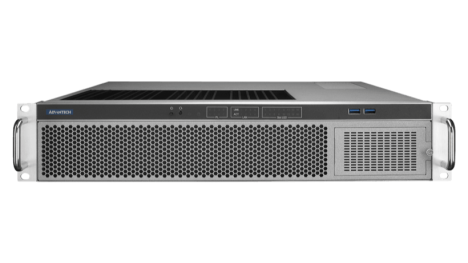

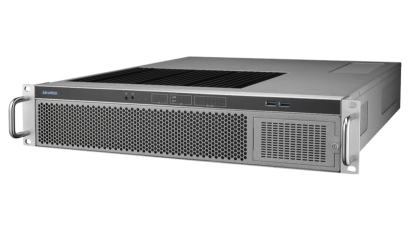

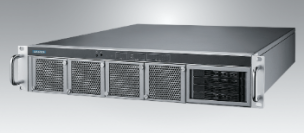

| Design |
sturdy fanless industrial chassis |
| Processors |
Intel Core i7 13th and 14th generation depending on configuration |
| Intel Core i7-14700T |
20 cores, including 8 P-cores and 12 E-cores, base frequency of 1.30 GHz, Intel Smart Cache of 33 MB |
| Intel Core i7-14701TE |
8 P-cores, base frequency of 2.10 GHz, Intel Smart Cache of 33 MB |
| Intel Core i7-13700TE |
16 cores, including 8 P-cores and 8 E-cores, base frequency of 1.10 GHz, Intel Smart Cache of 30 MB |
| Processor TDP |
limited to 25 W |
| Chipset |
Intel R680E |
| Virtualization |
support announced by the manufacturer |
| Memory |
dual-channel DDR4 with ECC, up to 64 GB |
| Memory slots |
2 DDR4 SO-DIMM sockets, assembly in Advantech CTOS center according to the datasheet |
| Ethernet controllers |
1 Intel I210 and 3 Intel I226 |
| Ethernet interfaces |
4 RJ45 ports, announced speeds of 10/100/1,000 Mbit/s, isolation of 2,500 V |
| Remote management |
iBMC on LAN1, Intel AMT on LAN2, and SNMP |

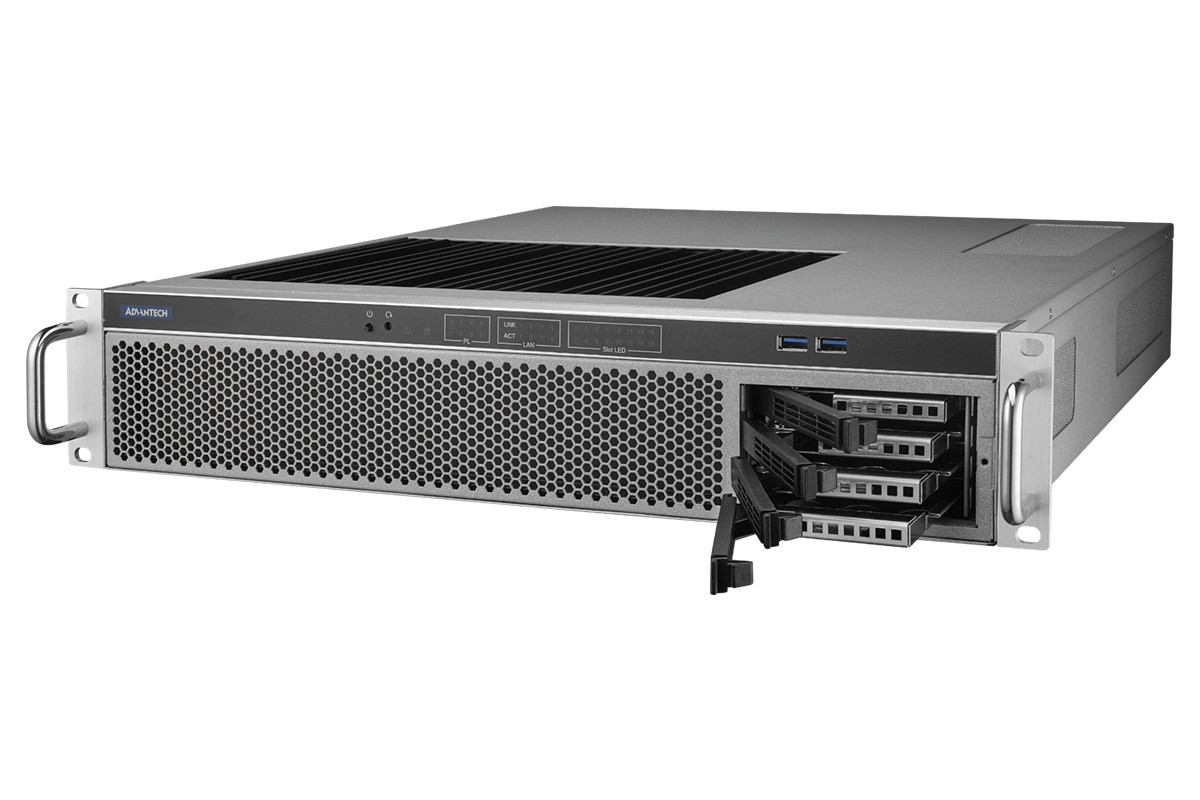

| SATA storage |
4 slots for 2.5-inch SATA SSD, maximum height of 9.5 mm |
| M.2 storage |
1 M.2 2280 M-Key slot for PCIe Gen3 x4 or SATA NVMe SSD |
| External USB |
5 USB 3.2 Gen1 ports, including 3 at the rear and 2 at the front |
| Internal USB |
1 USB 2.0 port |
| Serial interfaces |
2 RS-232/422/485 ports on DB9 connectors, isolation of 2,500 V, speed from 50 to 115,200 bit/s |
| Display |
4 DP++ 1.2 outputs, up to 4K at 60 Hz |
| Proprietary extension |
1 PCI/PCIe proprietary slot |
| Standard PCIe extensions |
1 PCIe x16 Gen4 slot and 3 PCIe x4 Gen3 slots, low profile format |
| Optional extensions available |
RJ45 ports, SFP ports, isolated serial ports, isolated digital I/Os, HSR/PRP, PCIe, Mini-PCIe, PCI-104, and IRIG-B |
| Network redundancy |
HSR/PRP support via optional expansion card |
| Compatible operating systems |
Windows 11, Windows 10, Windows Server 2022, and Linux Ubuntu 22.04 |
| Referenced software options |
Windows 11 IoT Enterprise 64-bit for Intel Core i7, Windows 10 IoT Enterprise 2021 LTSC 64-bit for Intel Core i7, Windows Server 2022 64-bit with 16-core license, Ubuntu 22.04 64-bit |
| Power supply |
150 W module, input 100 to 240 V AC or 100 to 240 V DC |

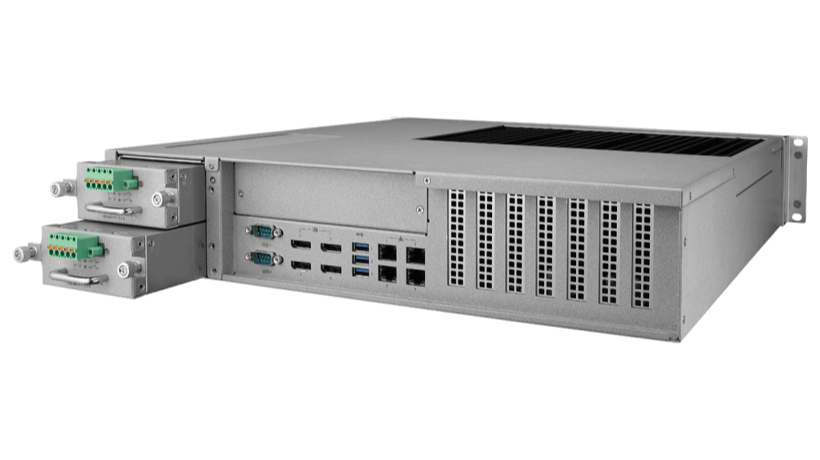

| Power supply redundancy |
2 hot-swappable module configuration, with 1 module provided and a second optional |
| Operating temperature |
from -25 to +70 °C depending on the processor and configuration |
| Storage temperature |
from -40 to +85 °C |
| Operating humidity |
95% RH at 40 °C, non-condensing |
| Non-operating humidity |
95% RH at 60 °C, non-condensing |
| Mounting |
19-inch rack, height 2U |
| Dimensions |
approximately 483 mm width, 88 mm height, and 478 mm depth, according to mechanical design |
| Weight |
13 kg |
| Protection rating |
IP20 |
| Electromagnetic compatibility and electrical environment |
CE, FCC, and IEEE 1613 announced by the manufacturer |
| Safety |
CB and UL announced by the manufacturer |
| Approval for substations |
IEC 61850-3 |
| Environmental compliance |
RoHS, directive 2002/95/EC mentioned in the datasheet |
| Shock resistance |
IEC 60068-2-27, 20 G half-sine for 11 ms, with SSD |
| Vibration resistance |
IEC 60068-2-64, random vibrations, 1 octave/minute, 1 hour per axis, with SSD |
| Hardware security |
optional TPM 2.0 module |
| Watchdog |
programmable delay on 256 levels, with intervals from 1 to 255 seconds according to the datasheet |
| Relay Output |
1 channel, Form C changeover contact, 5 A at 125 V AC or 5 A at 30 V DC |
| Maintenance and longevity |
long product lifespan announced for substations, optional 10-year warranty |
| Version ECU-479-V1-S1 |
RPL-S platform, 1 AC/DC power supply, 4 LAN, 4 DP, 1 EP slot and 4 PCIe slots, China origin |
| Version ECU-479-V1-S1U |
RPL-S platform, 1 AC/DC power supply, 4 LAN, 4 DP, 1 EP slot and 4 PCIe slots, Taiwan origin |
| Optional power supply FRU-ECUPWR-100A |
150 W module, input 100 to 240 V AC/DC |
| Network card 96NIC-1G2P-PE-IN3 |
Intel PCIe x4 card with 2 RJ45 ports 100/1,000 Mbit/s |
| Network card PCIE-1131PS-00A1E |
Intel I350 PCIe x4 card with 4 SFP Gigabit ports |
| Module PCA-TPMSPI-00A1 |
TPM 2.0 module on SPI interface |
| Card ECU-P1624D-B |
4 isolated RS-232/422/485 ports with IRIG-B |
| Card ECU-P1628D-B |
8 isolated RS-232/422/485 ports on ECUP slot |
| Card ECU-P1524PE-GAE |
2 SFP Gigabit HSR/PRP ports on ECUP slot |
| Card ECU-P1528RE-B |
8 Gigabit Ethernet RJ45 ports on ECUP slot |
| Card ECU-P1528PE-B |
8 Gigabit Ethernet SFP ports on ECUP slot |
| Card ECU-P1522LPE-A |
2 SFP Ethernet ports with HSR/PRP, low profile PCIe format |
| Card UNOP-1000K-AE |
PCIe expansion card on ECUP slot |
| RAID card 96RC-SAS-4P-PE-AD6 |
Adaptec 3101E-4i SAS PCIe x8, supports RAID 0, 1, and 10 |
| RAID card 96RC-SAS-8P-PE-AD6 |
Adaptec 2100-8i SAS PCIe x8, supports RAID 0, 1, 10, and 5 |
| Kit ECU-KIT-47904 |
ECU-479 cable kit for RAID card |
| Operating System |
Linux, Windows 10 IoT, Windows 11 |
| Mount options |
Rack |
| Design |
Fanless |
| SKU |
ECU-479 |
| Brand |
ADVANTECH
|
Configured and assembled in France
