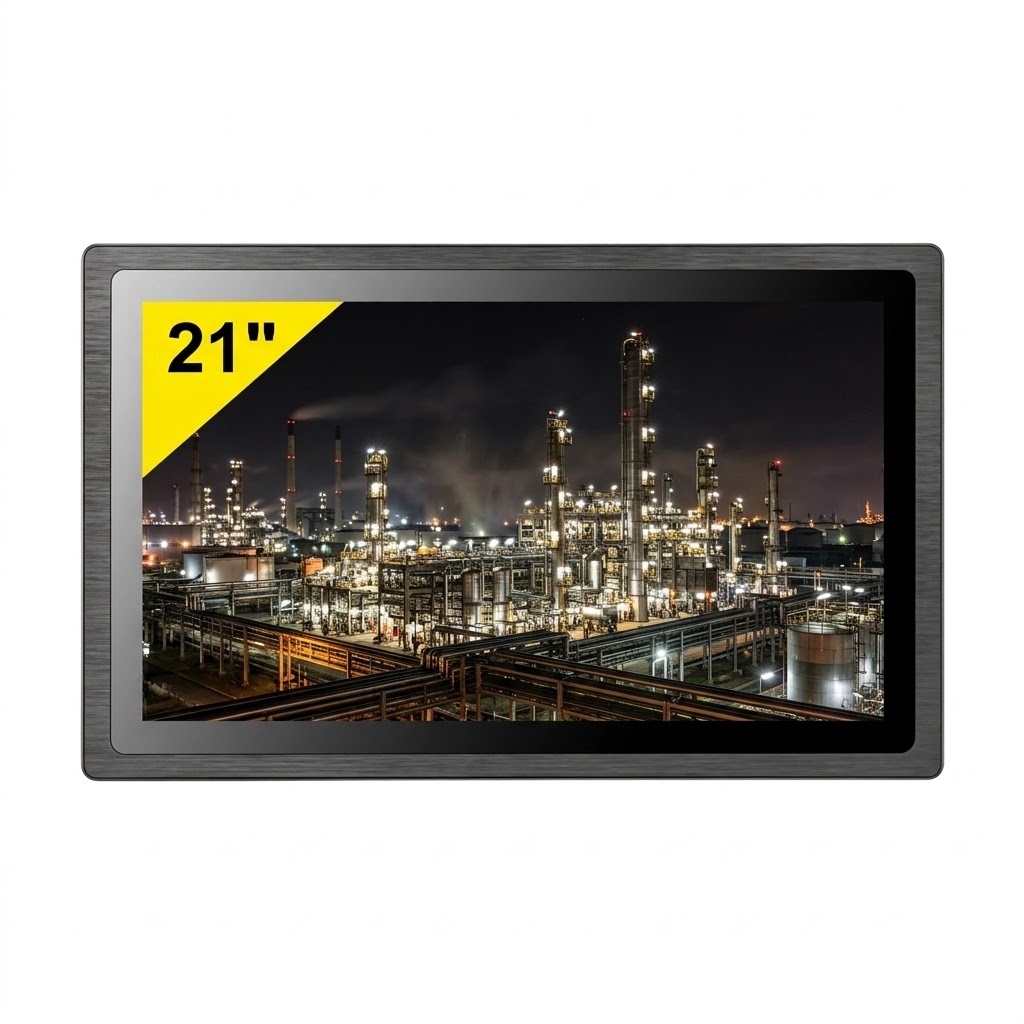

Thanks to its large diagonal, the PPC002-215A2 allows the grouping of several supervision areas on the same screen, while maintaining comfortable readability of the information. In a SCADA application, for example, it can simultaneously display a production overview, measurement curves, alarms, and operating parameters. This display area facilitates data consultation and limits window changes during monitoring or maintenance operations.
| Characteristic |
Value |
| Range |
Series 1 – Ultra-flat |
| Processor |
Intel Celeron J6412, 2.60 GHz |
| RAM |
Up to 16 GB DDR4 |
| Storage |
mSATA, optional M.2 NVMe, up to 1 TB |
| Screen |
TFT LCD 21.5 inches |
| Resolution |
Full HD – 1920 × 1080 pixels |
| Brightness |
cd/m², options 1000 cd/m² and 800 cd/m² (high brightness WT) |
| Touch |
Projected capacitive, resistive, or without touch |
| Network |
2 × Ethernet Gigabit RJ45, galvanic isolation |
| USB |
2 × USB 3.0, 2 × USB 2.0 |
| Serial interfaces |
RS-232, RS-485 |
| Other interfaces |
5 × GPIO, HDMI, VGA, audio |
| Wireless communication |
WLAN, Bluetooth 4.0, optional LTE |
| Power supply |
12 to 36 VDC |
| Cooling |
Fanless, without fan |
| Protection |
Front IP65 |
| Case |
Molded aluminum |
| Mounting |
Flush-mounted, VESA 75 × 75 or 100 × 100 |
| Dimensions |
557 × 345 × 63 mm |
| Weight |
Approximately 6 kg |
| Operating temperature |
-10 °C to +60 °C, other ranges according to options |
| Operating systems |
Windows 10 IoT LTSC, Windows 11 IoT LTSC |
| Format |
| 16 |
9 widescreen |
| CPU |
Pentium / Celeron / ATOM |
| Mount options |
Panel mount, VESA |
| IP |
IP65 |
| Design |
Fanless |
| SKU |
PPC002-215A2 |
| Brand |
WACHENDORFF
|
