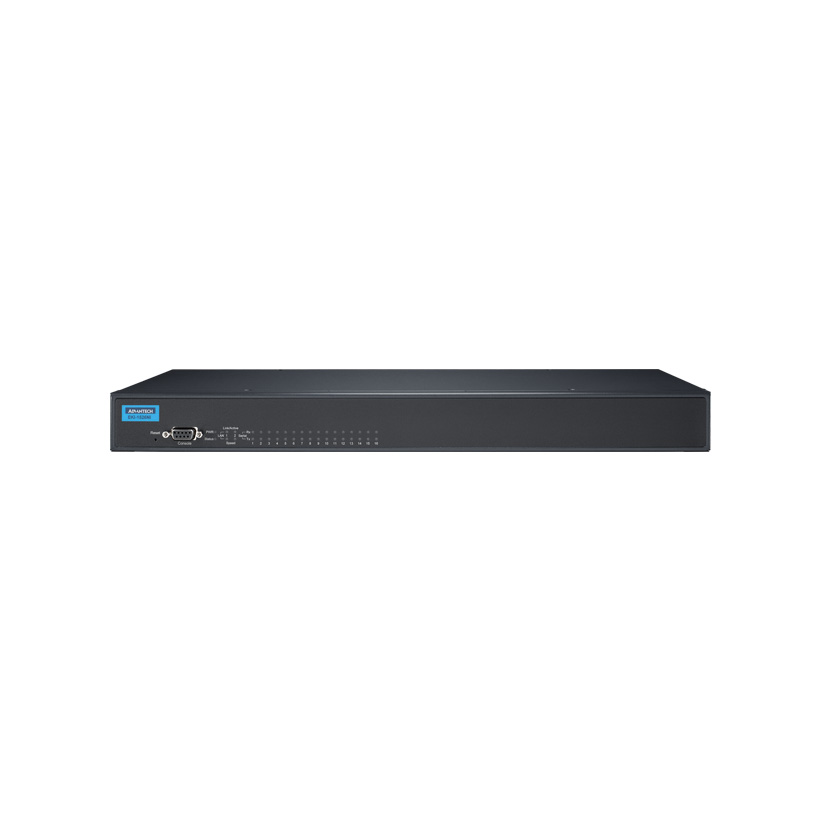

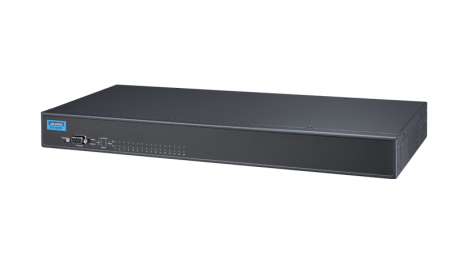

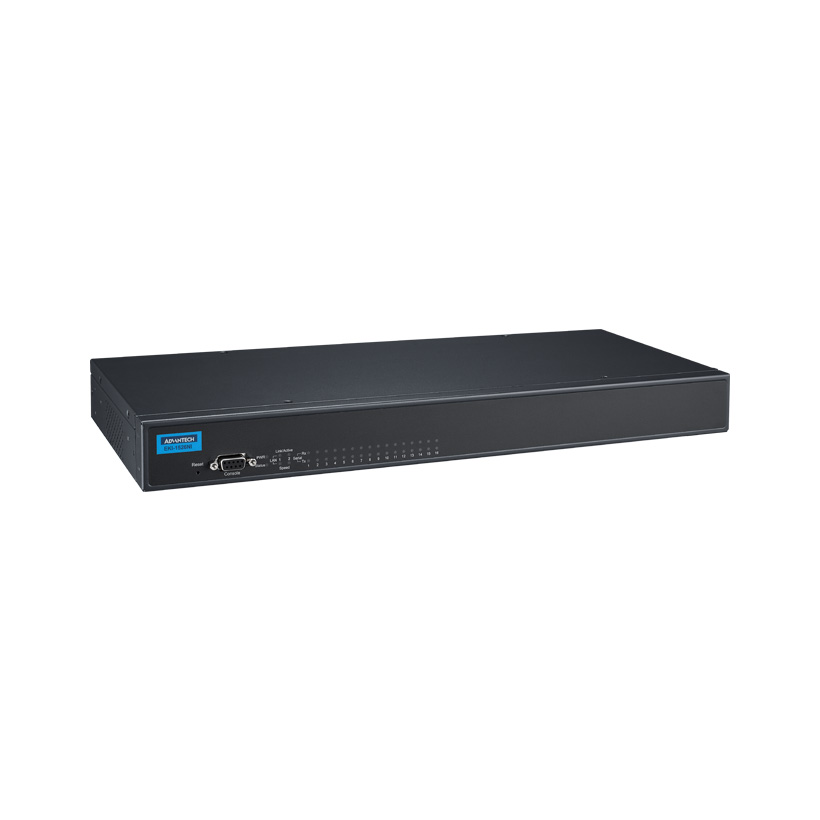

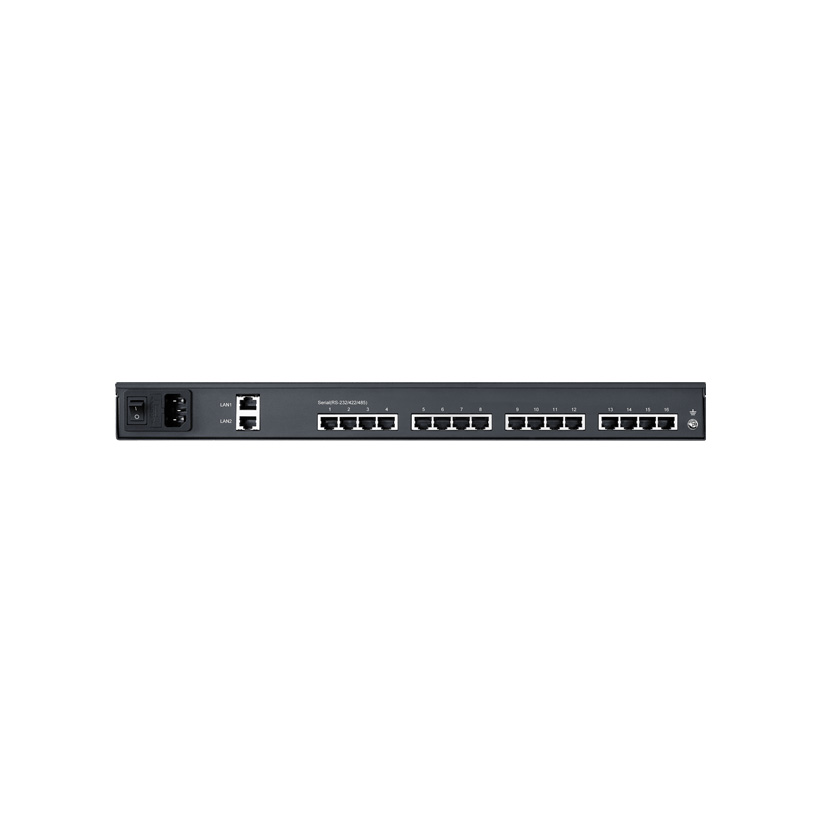

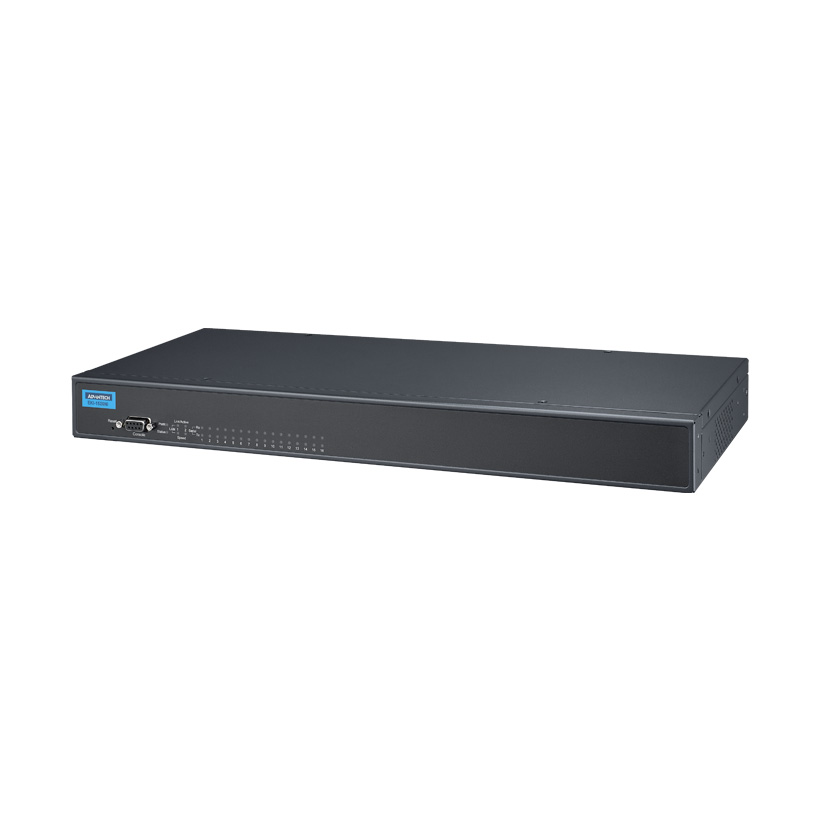

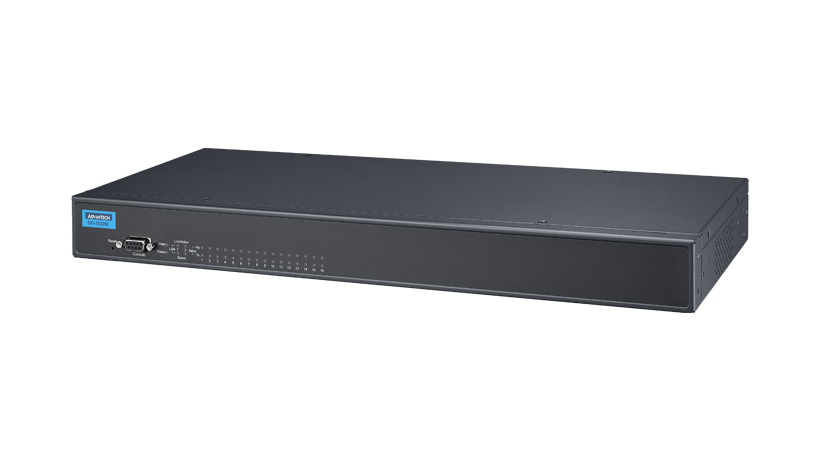

EKI-1526-I1A Serial Device Server 16-port RS-232/422/485 DB9 1U Rackmount

The EKI-1526-I1A is an Advantech secure 16-port RS-232/422/485 device server. It connects serial equipment to TCP/IP networks, ensuring reliable communication with dual Ethernet ports for network redundancy.

Key Features:

• Complies with IEC 62443-4-2 security standards
• 16-port RS-232/422/485 serial communication
• 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
• Supports up to 921.6 kbps baud rate settings
• Secure operation in COM port redirection (Virtual COM), TCP/UDP modes
• Diverse configuration methods: Windows utility, Web Browser, Telnet console, and serial console
• Standard 1U rackmount size
• Wide operating temperature range: -40 ~ 70°C (-40 ~ 158°F)
• Automatic RS-485 data flow control
• Built-in buzzer for easy device location
• Real-time visibility for device communications and system efficiency
• Comprehensive driver support for various Windows and Linux versions
• Secure operation modes include SSH console mode
• Secure network management via SNMPv3 and support for multiple authentication protocols including LDAP and RADIUS

It supports a convenient setup via multiple configuration options including Windows utility and Web Browser, operating securely across various network environments. Demonstrating flexibility, the EKI-1526-I1A's wide temperature range, robust metal enclosure, and comprehensive certifications make it ideal for industrial environments.
