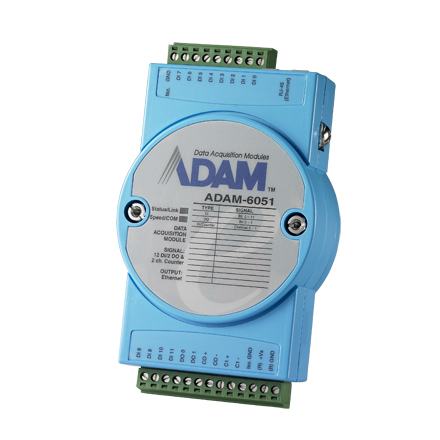

ADAM-6051-D 16 channels Isolated DI/O w/Counter Module
- Digital Input
- Channels 12
- Dry Contact Logic level 0: close to GND Logic level 1: open
- Wet Contact Logic level 0: 0 ~ 3 VDC Logic level 1: 10 ~ 30 VDC
- Supports 3 kHz Counter Input (32-bit + 1-bit overflow)
- Keep/Discard Counter Value when Power-off
- Supports 3 kHz Frequency Input
- Supports Inverted DI Status
- Counter Input
- Channels 2
- Mode Counter, Frequency
- Keep/Discard Counter Value when Power-off
- Maximum Count 4,294,967,295 (32-bit + 1-bit overflow)
- Input Frequency Frequency Mode: 0.2 ~ 4500 Hz
- Counter Mode: 0 ~ 4.5 kHz
- Digital Output
- Channels 2 (sink type), open collector to 30 V, 100 mA maximum load
- Supports 5 kHz Pulse Output
- Supports High-to-Low and Low-to-High Delay
