For an operator workstation, the widescreen facilitates the design of interfaces combining a main work area with a side navigation or settings panel. In an assembly workshop, it can accommodate an illustrated instruction alongside traceability information. On a control station, it allows for the presentation of measurements and their history side by side. The choice between projected capacitive touch, resistive, or non-touch versions adapts the workstation to expected interactions, particularly for control with gloves in the resistive version.
| Characteristic |
Value |
| Processor |
Intel Celeron J6412, announced frequency of 2.60 GHz |
| RAM |
up to 16 GB DDR4 |
| Storage |
up to 1 TB |
| Standard storage interface |
mSATA |
| Optional storage interface |
M.2 NVMe |

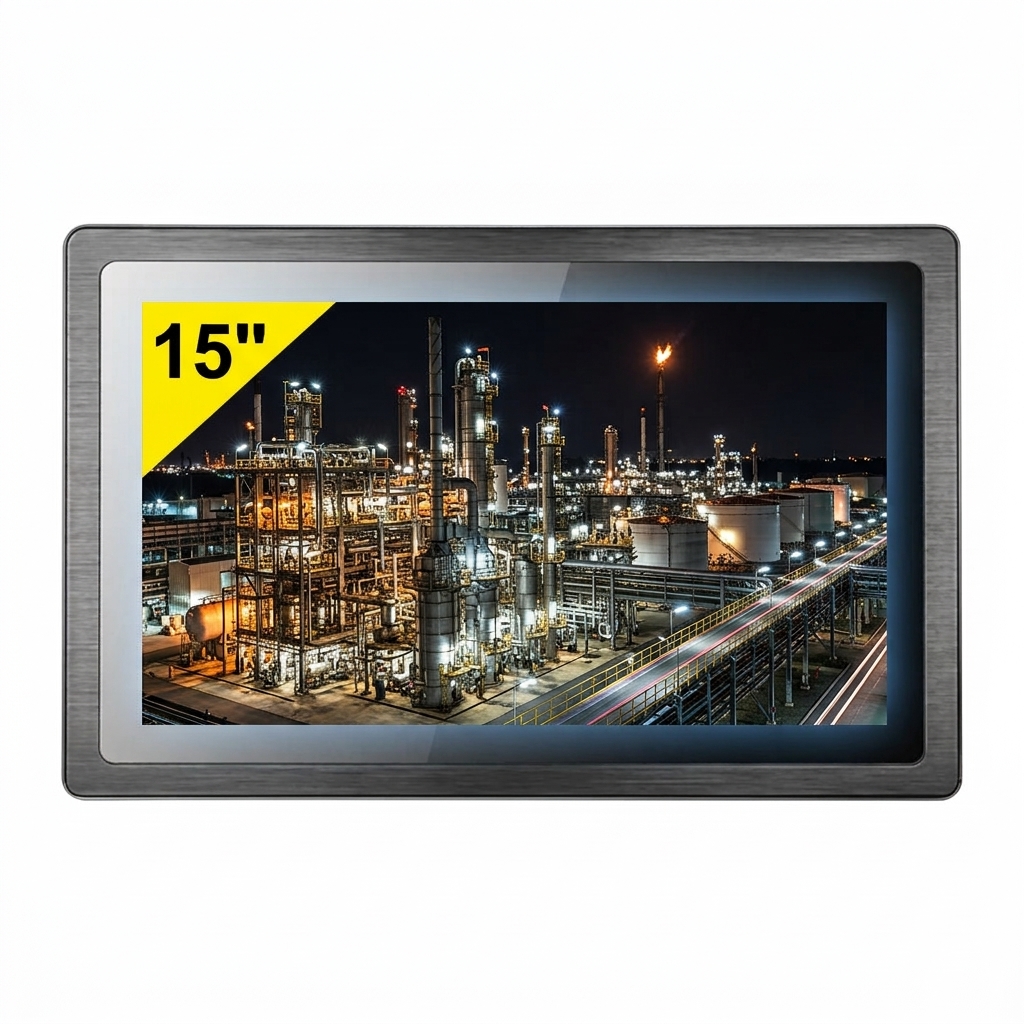

| Screen |
15.6-inch TFT LCD |
| Resolution |
1920 × 1080 pixels, Full HD |
| Standard brightness |
300 cd/m² |
| Optional brightness |
1,000 cd/m² in High Brightness version |
| Colors |
16.7 million |
| Viewing angles |
85° to the left, right, top, and bottom |
| Touchscreen |
projected capacitive, resistive, or without touch function depending on configuration |
| Multi-touch function |
available with projected capacitive touch and a compatible operating system |
| Surface hardness |
6H in projected capacitive, 3H in resistive, 7H without touch |
| Ethernet |
2 galvanically isolated RJ45 Gigabit Ethernet ports |
| USB |
2 USB 3.0 Type-A ports and 2 USB 2.0 Type-A ports |
| DB9 serial interface |
1 RS-232 port |
| 12-pin screw terminal interfaces |
1 RS-485 port, 1 RS-232 port, and 5 GPIO |
| Video outputs |
1 HDMI port and 1 VGA port |
| Audio |
1 3.5 mm jack for audio input/output |
| Wi-Fi |
IEEE 802.11 a/b/g/n/ac/d/e/i/h/w |
| Bluetooth |
version 4.0 |
| SIM slot |
standard SIM format, non-functional in base configuration |
| Cellular communication |
optional LTE |
| Expansion slots |
none |
| Power supply |
12 to 36 V DC |
| Power connectors |
5.5 × 2.5 mm coaxial connector and 2-pin connector |
| Standby consumption |
11.94 W |
| Full load consumption at base frequency |
22.53 W |
| Cooling |
fanless |
| Casing |
die-cast aluminum |
| Front panel |
brushed aluminum, flush design |
| Protection rating |
IP65 at the front |

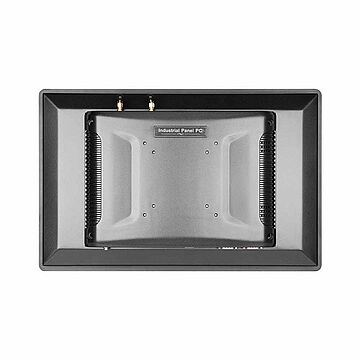

| Mounting |
panel embedded or VESA |
| VESA mounts |
75 × 75 mm and 100 × 100 mm |
| Dimensions |
420 × 269 × 70 mm, width × height × depth |
| Weight |
3.7 kg |
| Standard operating temperature |
−10 to +60 °C |
| Operating temperature with WT option |
−20 to +70 °C |
| Operating temperature in High Brightness version |
−20 to +70 °C |
| Storage temperature |
−20 to +70 °C |
| Relative humidity |
up to 95%, non-condensing |
| Indicated operating systems |
Windows 10 IoT LTSC and Windows 11 IoT LTSC |
| Indicated compliances |
CE, RoHS, FCC, and REACH |
| Display format |
| widescreen 16 |
9 |
| CPU |
Pentium / Celeron / ATOM |
| Mount options |
Panel mount, VESA |
| IP |
IP65 |
| Design |
Fanless |
| SKU |
PPC002-156A2 |
| Brand |
WACHENDORFF
|
