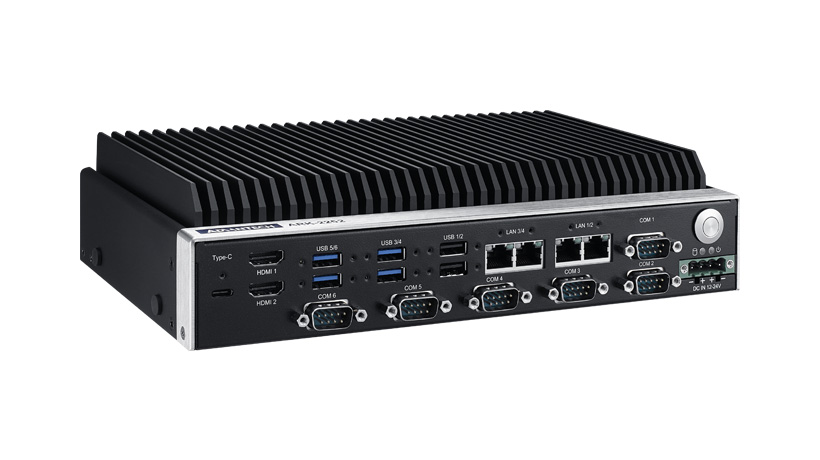

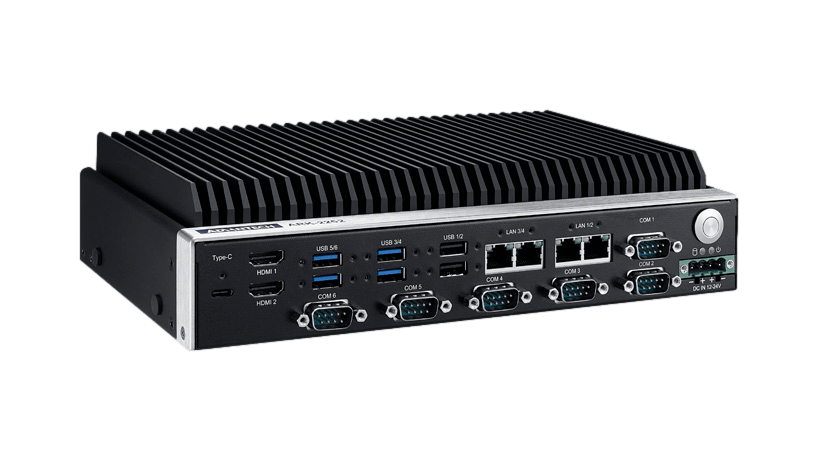

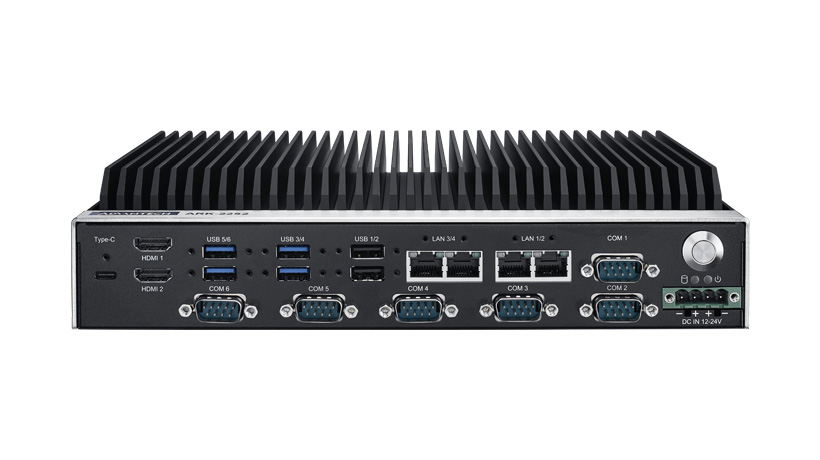

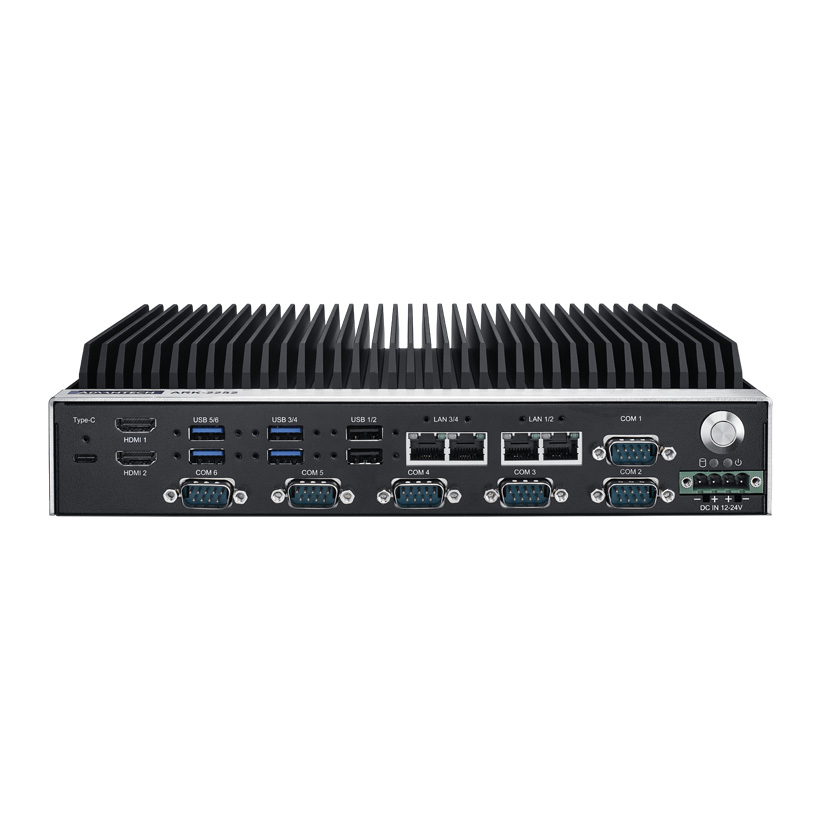

ARK-2252-S9A1U Embedded fanless PC Intel Core Ultra (series 3) with x4 GB LAN, x2 4K HDMI, x1 4K USB-C and x2 CANBus

The ARK-2252-S9A1U is a fanless embedded PC from Advantech designed for applications requiring robust and flexible connectivity.

Key features:

• Intel® Core™ Ultra series 3 Panther Lake processor
• Supports DDR5-6400/7200 CSODIMM memory up to 128 GB
• 4x Intel GbE, 6x serial ports, 2x CANBus
• Support for 3 displays with 2x 4K HDMI, 1x 4K typeC
• Extended operating temperature range from -20 to 60 °C
• Aluminum housing with multiple mounting options

Equipped with an Intel Xe 3 LPG graphics controller and offers versatile Ethernet connections up to 2500 Mbps. It supports multiple expansion options, including M.2 slots and the iDoor module.

The ARK-2252-S9A1U is compatible with Windows Win11 LTSC and Ubuntu 26.04.

Power specifications include an input of 12 ~ 24 VDC, with a typical consumption of 16.8W and a maximum of 36.7W, ensuring efficient power management.

Certifications include UL, CB, and CE/FCC Class B standards.
