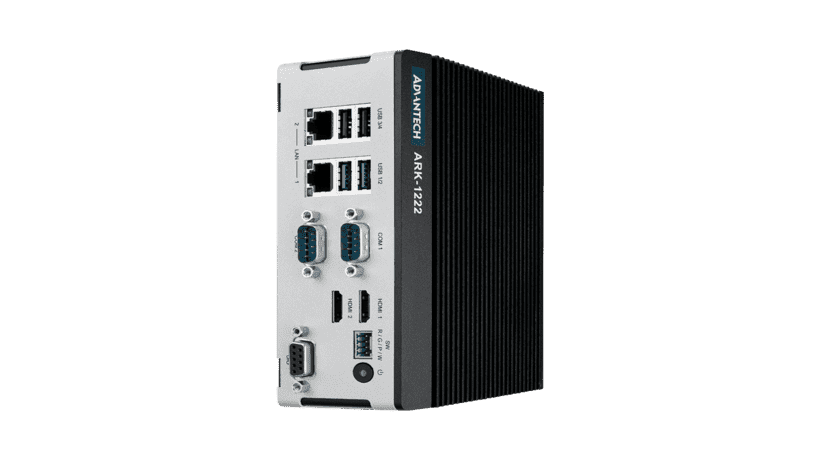

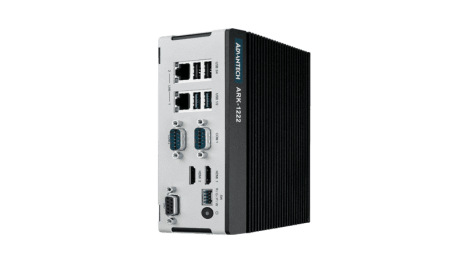

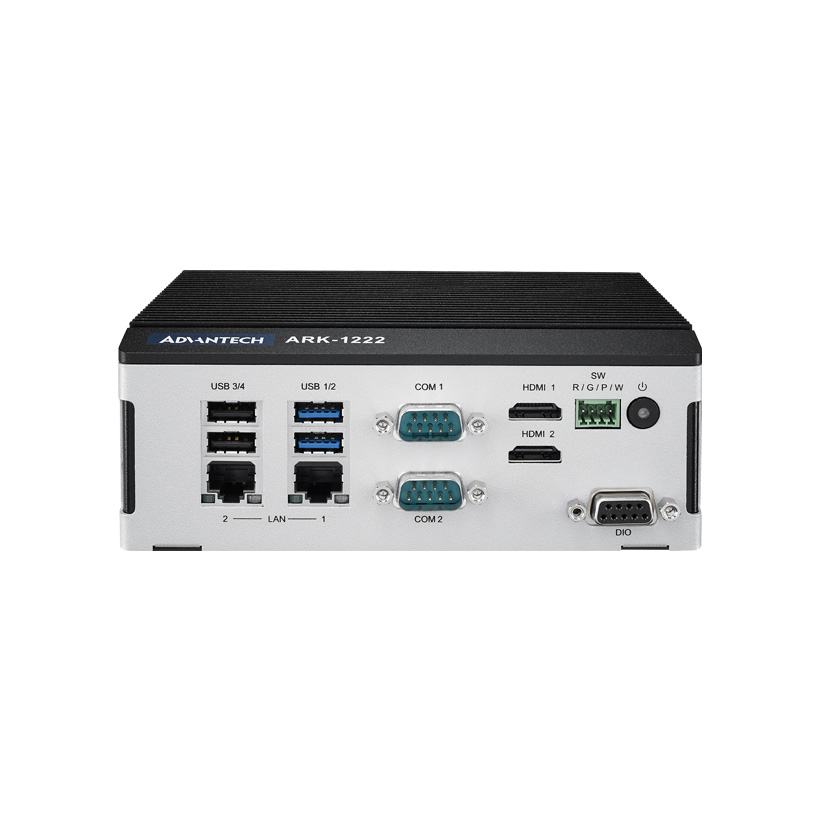

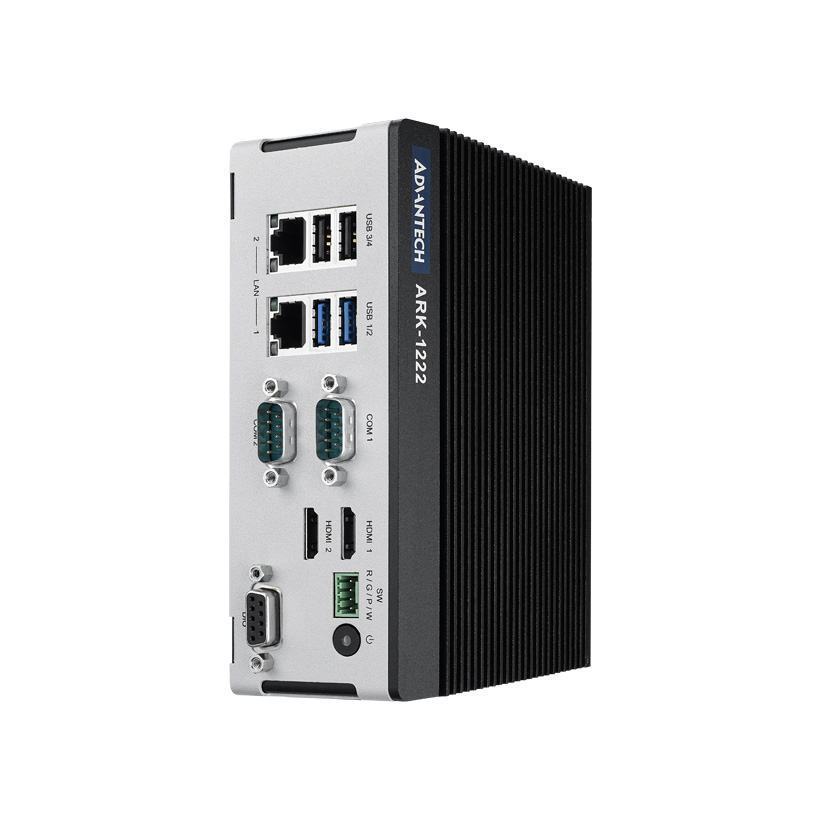

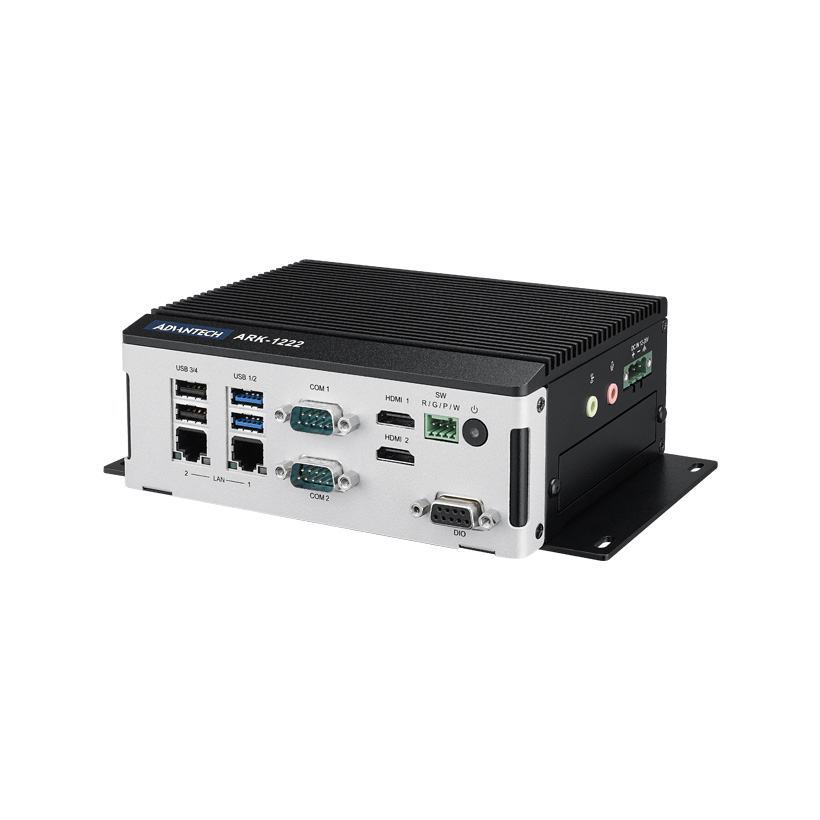

ARK-1222-U0A1U Fanless PC Intel N97 x2 HDMI 4K, x2 LAN, x4 COM, GPIO DIN rail and VESA mounting

Fanless PC Intel N97 x2 HDMI 4K, x2 LAN, x4 COM, GPIO DIN rail and VESA mounting
Fanless PC Intel N97 x2 HDMI 4K, x2 LAN, x4 COM, GPIO DIN rail and VESA mounting
Fanless PC Intel N97 x2 HDMI 4K, x2 LAN, x4 COM, GPIO DIN rail and VESA mounting
Fanless PC Intel N97 x2 HDMI 4K, x2 LAN, x4 COM, GPIO DIN rail and VESA mounting
Fanless PC Intel N97 x2 HDMI 4K, x2 LAN, x4 COM, GPIO DIN rail and VESA mounting
Fanless PC Intel N97 x2 HDMI 4K, x2 LAN, x4 COM, GPIO DIN rail and VESA mounting
Fanless PC Intel N97 x2 HDMI 4K, x2 LAN, x4 COM, GPIO DIN rail and VESA mounting
Fanless PC Intel N97 x2 HDMI 4K, x2 LAN, x4 COM, GPIO DIN rail and VESA mounting
Fanless PC Intel N97 x2 HDMI 4K, x2 LAN, x4 COM, GPIO DIN rail and VESA mounting
logo ADVANTECH Industrial computer manufacturer

This fanless PC Intel N97 is a robust solution designed for industrial applications. Its fanless design and DIN rail mounting make it ideal for environments where reliability and spatial efficiency are essential.

Main Features:

  • Intel N97 and x7433RE Quad Core SoC
  • Two independent 4K HDMI outputs
  • 2 Intel i226-IT LAN ports
  • 4 COM RS-232/422/485 ports
  • 2 USB 3.2 ports and 2 USB 2.0 ports
  • 8-bit programmable GPIO
  • Optional iDoor extension support

This rugged PC supports 2 independent 4K displays via HDMI, making it suitable for digital signage or surveillance applications.

Technical sheet

Ask for a quotation!

J+1 Chronopost delivery

Secured payment

23+ years experience

Experts team

Reknown brands

Sales department available

Monday to Friday, from 9am to 6pm

04 37 69 72 00
Characteristic Value
Environment Vibration During Operation:With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Environment Shock During Operation:With SSD/mSATA: 30G
Processor
CPU Intel N97
Core Number 4
Frequency 2.0 GHz
BIOS AMI EFI 256 Mbit
Memory
Technology DDR5 4800 MHz
Max. Capacity 16 GB built-in
Socket 1 x 262-pin SO-DIMM
ECC Support No
Graphics
HDMI 2
Dual Display HDMI1 + HDMI2
Ethernet
Controller 2
LAN1 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN
LAN2 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN
Audio
Main System Realtek ALC888S, High Definition Audio, Line-out, Mic-in
I/O Interface

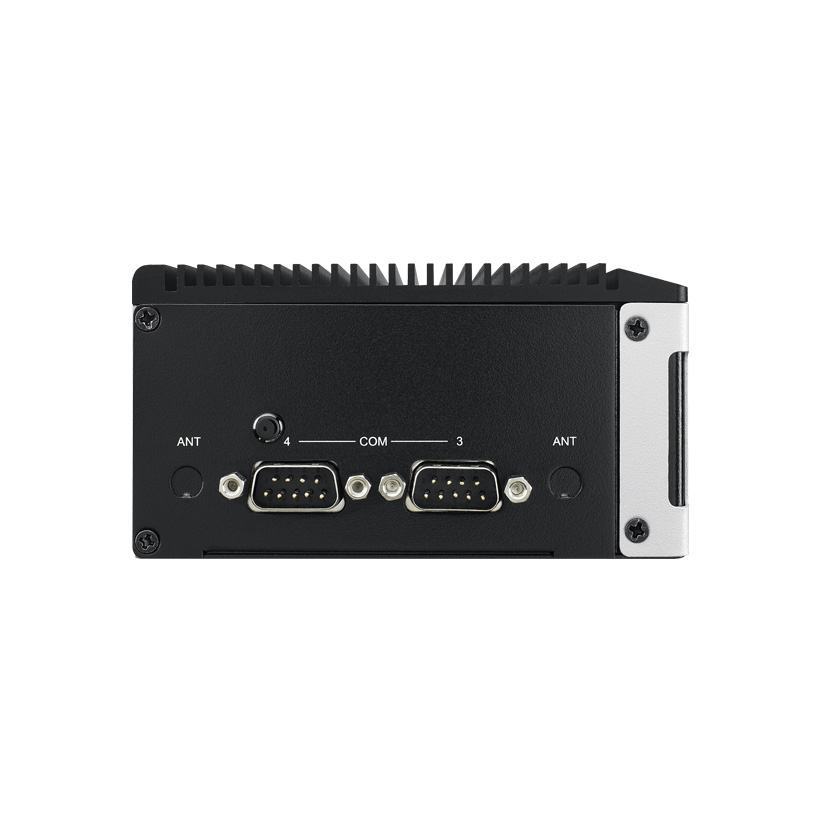

Serial Port 4 x RS-232/422/485 port with auto flow control
Serial 4
USB Interface 2 x USB 3.2, 2 x USB 2.0
GPIO 8-bit
Expansion
Mini PCI Express 1
CAN Bus 2 ports (by optional cable)
Mini PCIe #1 1 x Full-size
M.2 1 x M2. 2230 E key and 1 x M.2 2280 B key with nano SIM holder
Others
TPM TPM 2.0
Watchdog timer 255 levels timer interval, setup by software
Storage
mSATA 1 x Full-size (support either mSATA or miniPCIe)
NVMe 1 x PCIex2 (Share with M.2 2280 B key)
Software Support
Microsoft Windows Windows 10/11 IoT Enterprise LTSC
Linux Ubuntu 24.04
Power Supply
Power Type AT/ATX

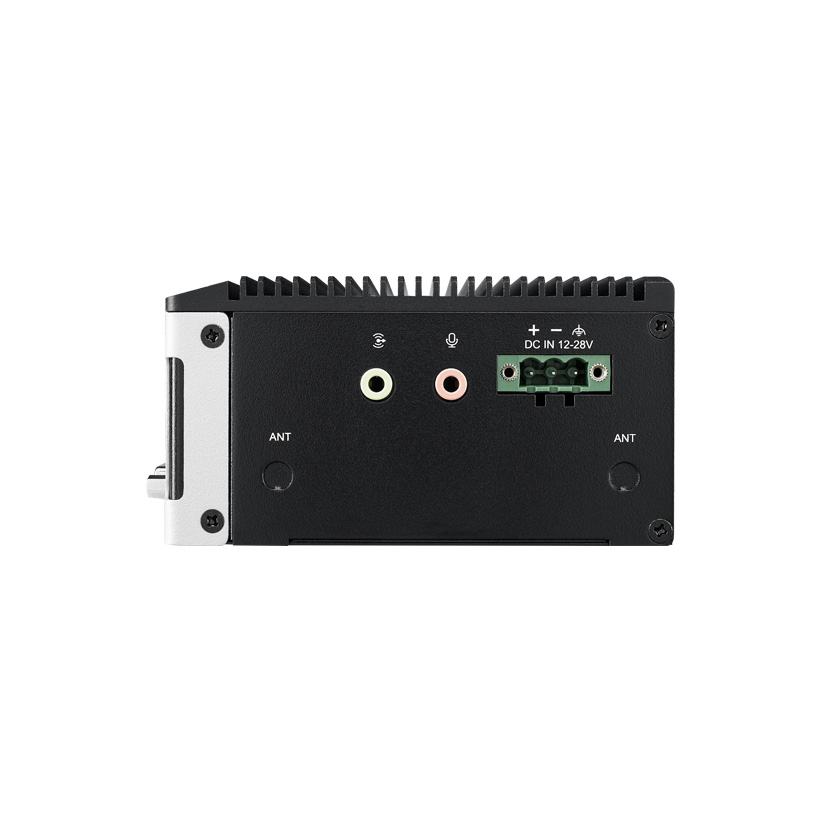

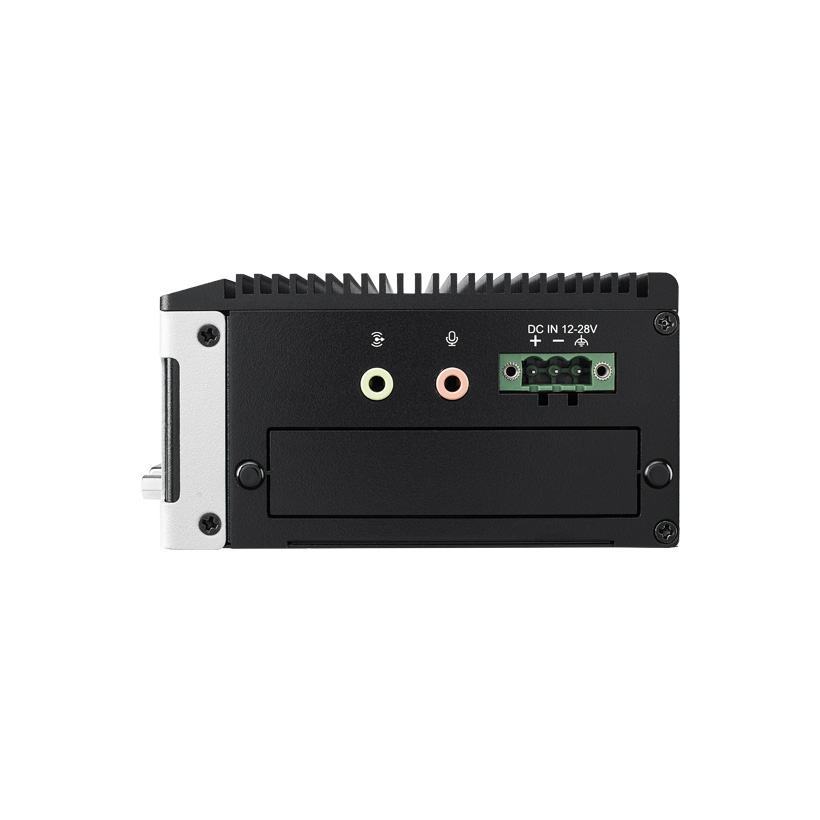

Input Voltage 12 ~ 28 VDC
Power Adaptor AC to DC, 90W (Optional)
Mechanical
Construction Aluminum housing

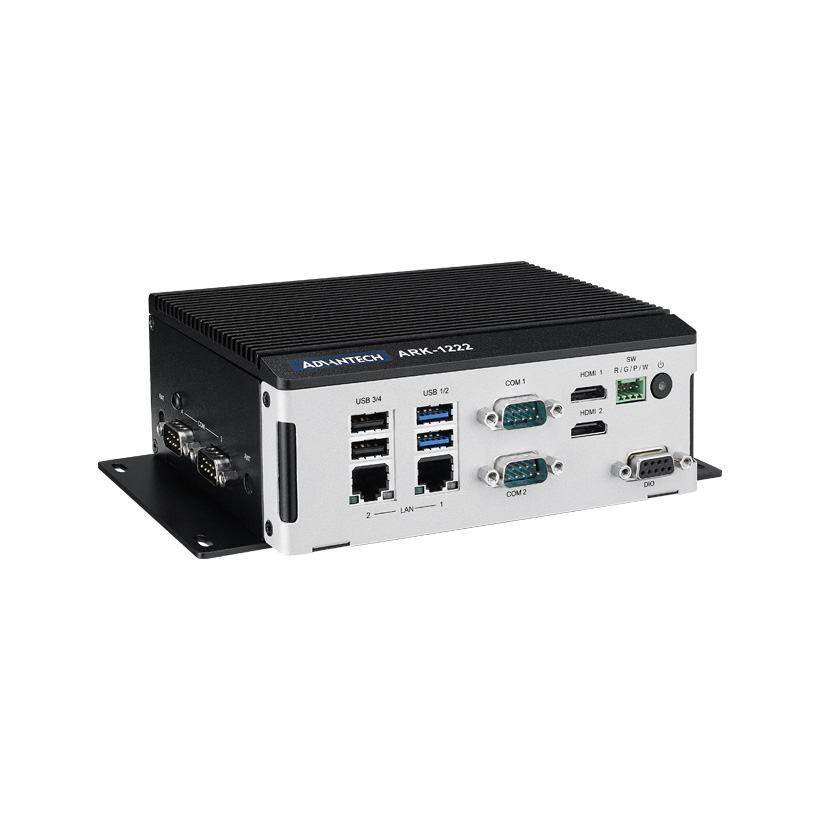

Mounting DIN-Rail/Wall/VESA Mounting Kits (Optional)
Dimensions 60 x 158 x 114 mm (2.34” x 6.22” x 4.49”)
Weight 0.9kg
Environment
Relative Humidity 95% @ 40° C (non-condensing)
Operational Temperature -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow
Storage Temperature - 40 ~ 85° C (-40 ~185° F)
Certification
EMC CE/FCC Class B, CCC, BSMI, UKCA
Safety Certifications CB, UL, CCC, BSMI, UKCA
Size 190x245x130mm
Weight 1490g
CPU Pentium / Celeron / ATOM
Design Fanless
Ethernet ports count 2 ports
Serial port 4
SKU ARK-1222-U0A1U
Brand ADVANTECH
