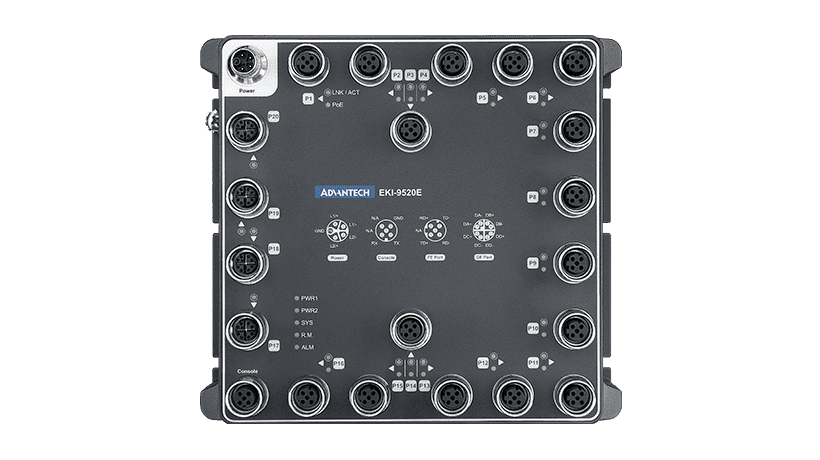

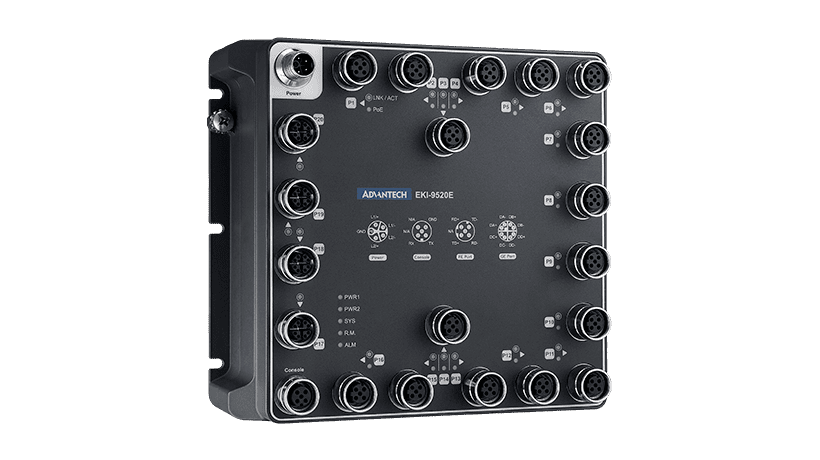

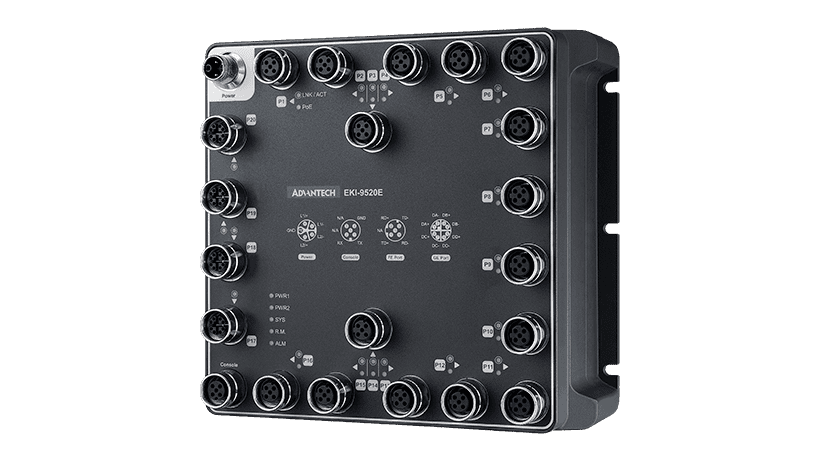

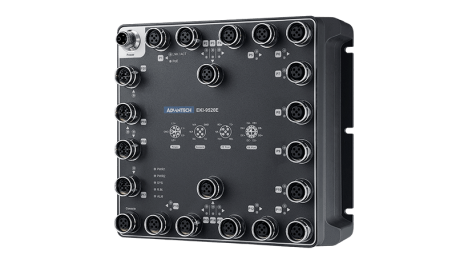

EKI-9520E-4GMPW-A EN50155 M12 16FE PoE+ 4GE Managed Switch with IP67 Housing

The Advantech EKI-9520E-4GMPW-A  Managed Switch is a rugged industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh environments, especially in railway and transportation applications.

This Layer 2 managed switch ensures stable performance, efficient network management, and seamless data communication even under extreme operating conditions.

• Layer 2 managed switch with 16 Fast Ethernet ports and 4 Gigabit Ethernet ports
• M12 connectors with secure push-pull mechanism (IEC 61076-2-010)
• IP67-rated rugged housing for maximum protection against dust and water
• Wide power input range:
  • Nominal: 24 ~ 110 VDC
  • Operating: 16.8 ~ 137.5 VDC
• Extended operating temperature: -40°C to +70°C

Designed for Railway Applications

This switch complies with key railway and industrial standards, ensuring reliable integration into onboard and trackside systems:

• EN50155
• EN50121-3-2
• EN45545-2
• EN61373
