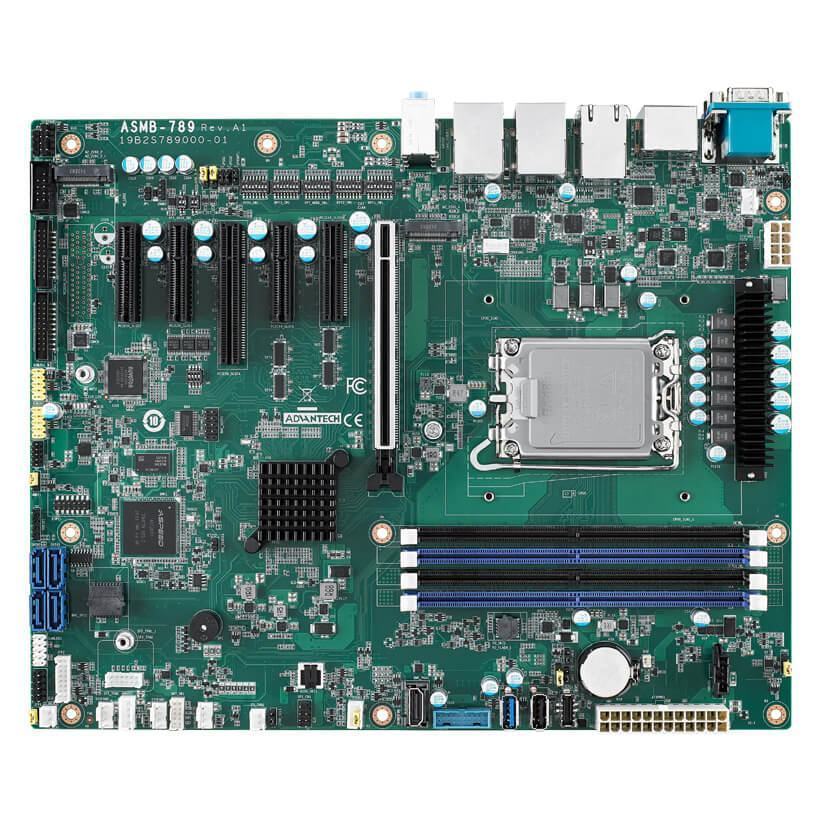

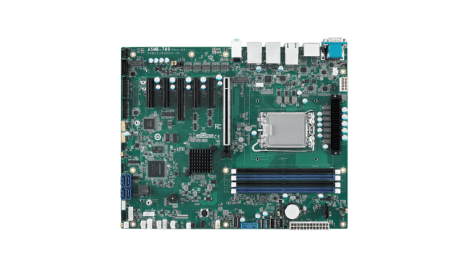

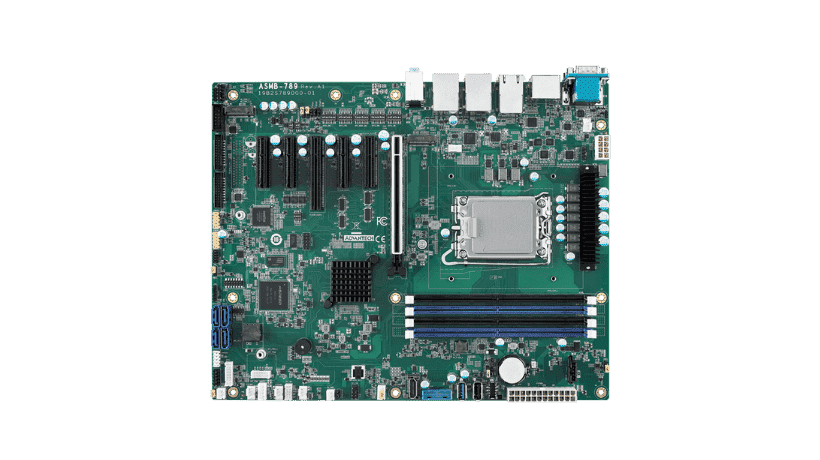

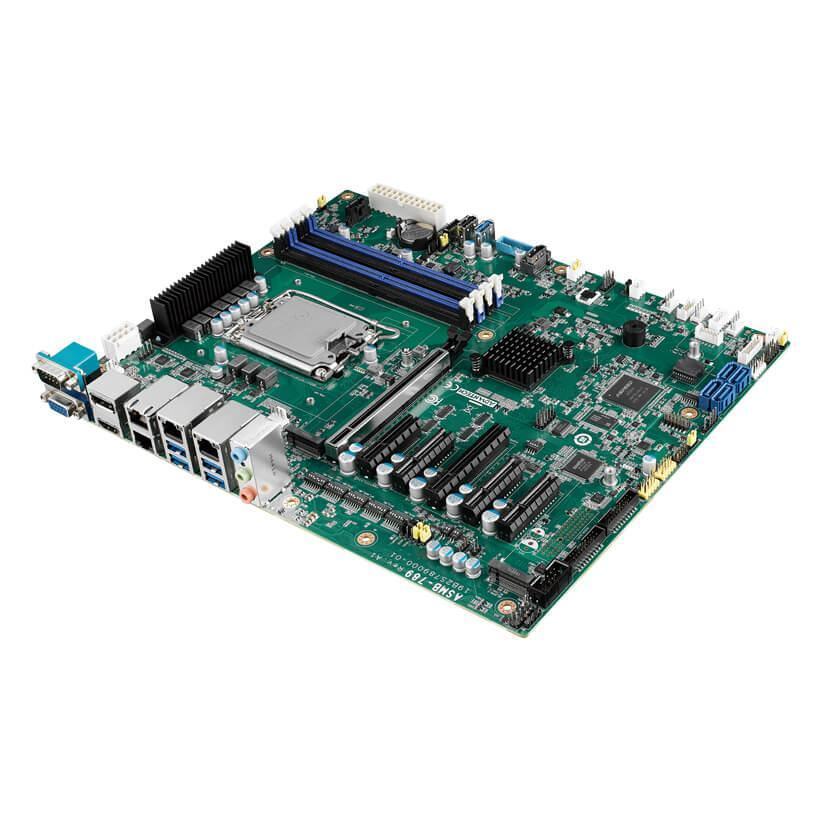

ASMB-789G4-00A1 ATX Server Board with LGA 1851 for Intel Core Ultra 9/7/5 and 4 x LAN

The Advantech ATX Server Board, code: LGA 1851, features compatibility with Intel Core Ultra 9/7/5 processors. It is designed for industrial applications requiring high-performance computing and robust connectivity.

Key Features:

• Supports Intel Core Ultra 9/7/5 processors with LGA 1851 socket and W880 chipset.
• Accommodates up to 192 GB DDR5 ECC/Non-ECC UDIMM memory at 5600 MT/s.
• Offers a variety of expansion options: 1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), and 5 x PCIe x4 slots.
• Enables triple independent display outputs via DisplayPort, VGA, and HDMI 2.0.
• Includes 4 x SATA3 ports and 7 x USB 3.2 ports for peripheral connectivity.
• Incorporates 1 x M.2 2280 slot (PCIe x4) for NVMe SSDs.
• Optimized for rackmount systems to ensure effective airflow for cooling.
• Operates reliably within a 0 ~ 60°C (32 ~ 140°F) temperature range.

This server board is ideal for industrial applications needing high-speed memory, multiple PCIe slots for expansions, and high-speed network connectivity with Quad GbE support.
