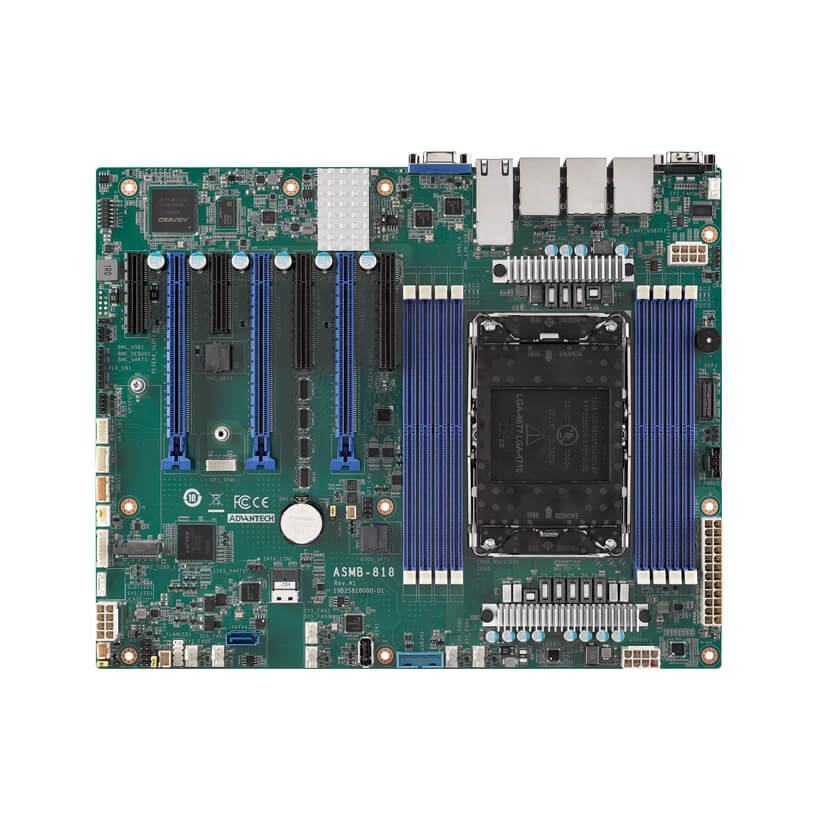

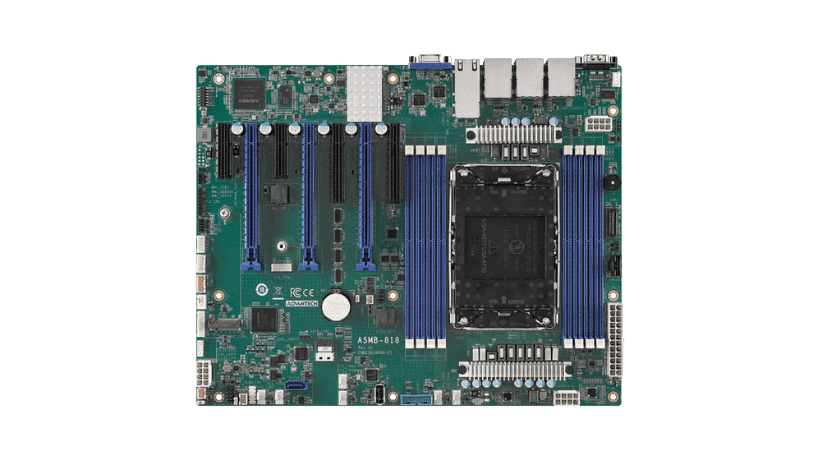

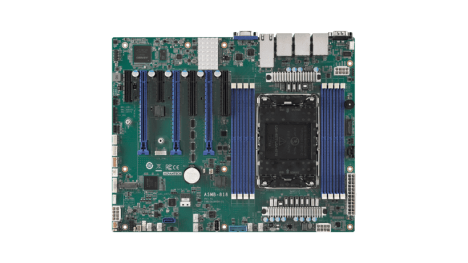

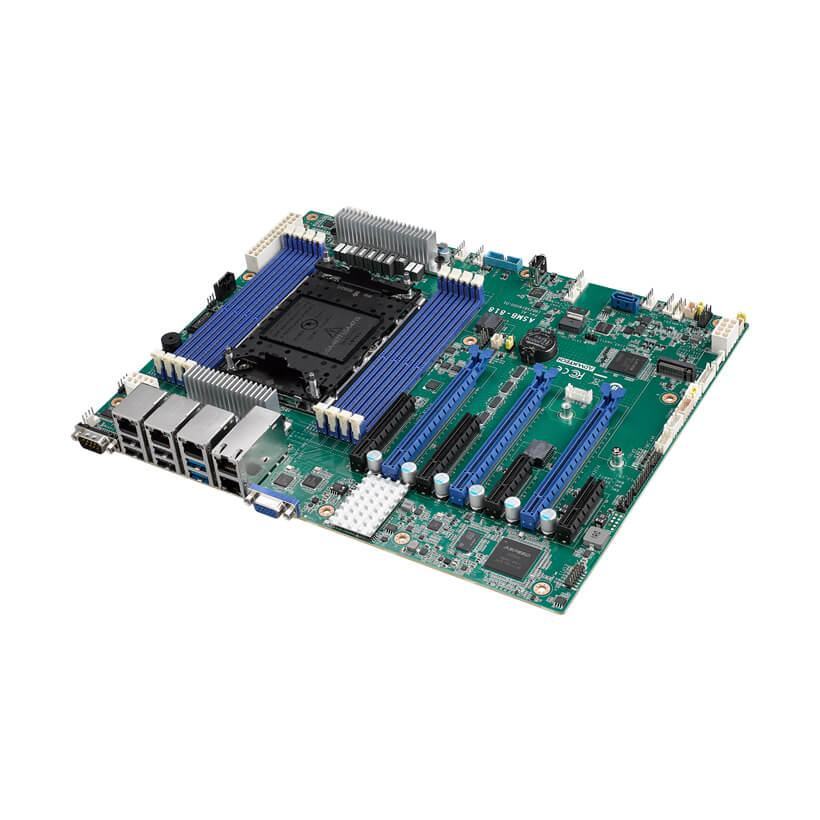

ASMB-818I-00A1 ATX Server Board LGA4710 Intel Xeon DDR5 IPMI Dual 10Gb LAN

The Advantech LGA4710 is a high-performance ATX server board designed to support 6th Gen Intel Xeon Scalable processors, offering robust capabilities for data centers and server applications. With SKU code LGA4710, this product from Advantech ensures top-tier server efficiency and expandability.

Key Features:

• Supports 6th Gen Intel Xeon Scalable processors with TDP up to 350W.
• DDR5 6400 MHz RDIMM support, up to 2TB, with MCRDIMM compatibility.
• Flexible PCIe Gen5 expansion: three x16 slots plus one x8 slot, or two x16 slots plus three x8 slots.
• Dual Intel X710 10GbE ports for high-speed networking.
• Five SATA 3.0 ports and one M.2 connector (PCIe x4) for diverse storage options.
• Onboard IPMI 2.0 with Redfish support for remote management.
• Operates within 0 ~ 60°C (32 ~ 140°F) ambient temperature range.

This ATX server board is optimized for use in data centers requiring advanced thermal management and high-efficiency power delivery systems. It offers comprehensive connectivity options with 4 x USB 3.2 (Gen1) ports for peripheral connections, enabling a streamlined server environment.

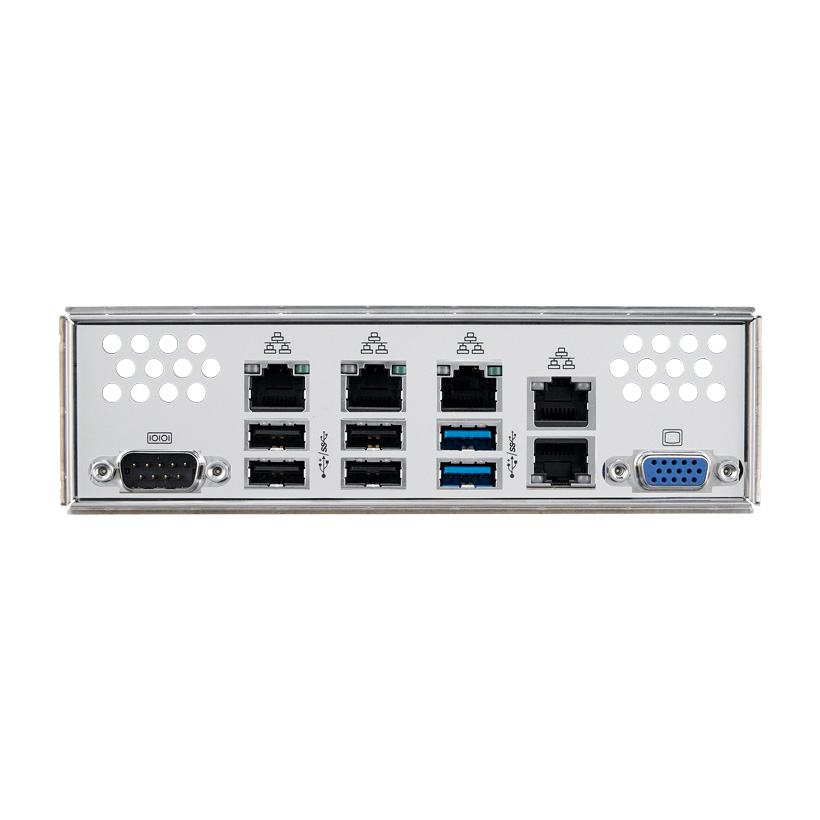

Equipped with 2 × 2.5GbE ports and 5 (1 for IPMI) RJ-45 connectors, this board ensures efficient data management and networking capabilities.

The system supports Aspeed AST2600 VGA output and provides programmable watchdog timer functionality for reliable performance.
