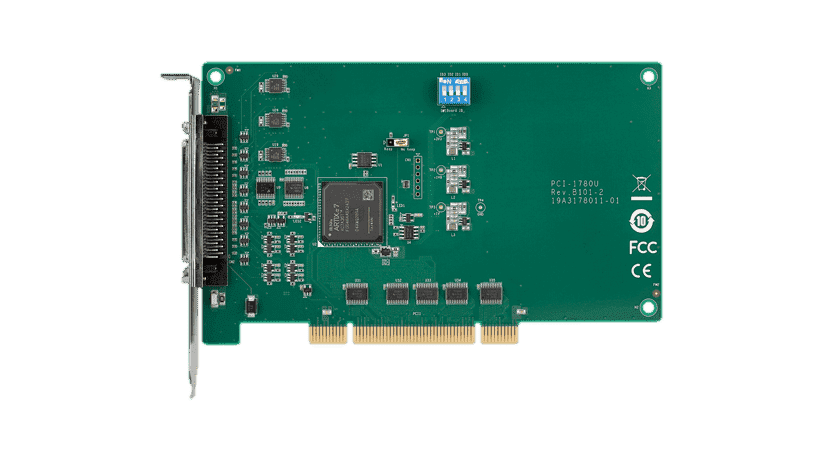

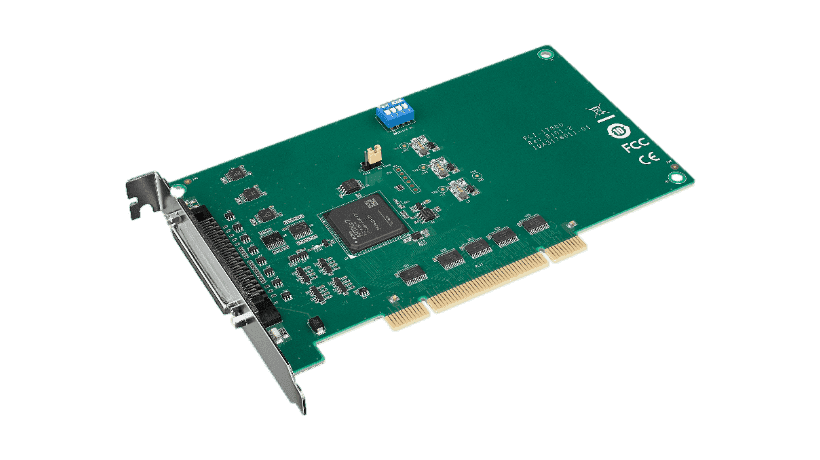

PCI-1780U-B 8-ch, 16-bit Counter/Timer Universal PCI Card

PCI-1780 is a general purpose multi-channel counter/timer card for the PCI bus. It targets the AM9513 to implement the counter/timer function by CPLD. It provides eight 16-bit counter channels, 8 digital outputs and 8 digital inputs. Its powerful counter functions cater to a broad range of industrial and laboratory applications. The card features 12 programmable counter modes, to provide one shot output, PWM output, periodic interrupt output, and to measure the frequency and the pulse width. The PCI-10168 shielded cable works well with PCI-1780 to reduce noise. Its wires are all twisted pairs, and the input signals and output signals are separately shielded, providing minimal cross talk between signals and the best protection against EMI/EMC problems.

Additionally, the PCI-1780U-B is equipped with eight independent 32-bit counters, supporting up to 10 MHz input frequency, and a Universal PCI V2.2 bus type. The card offers advanced features including 8 programmable clock sources, flexible interrupt source select, and BoardID™ switch for easy configuration in complex systems.
