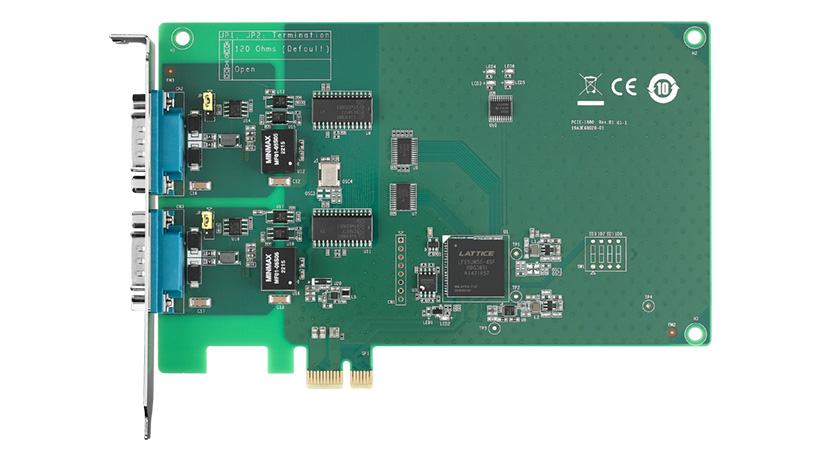

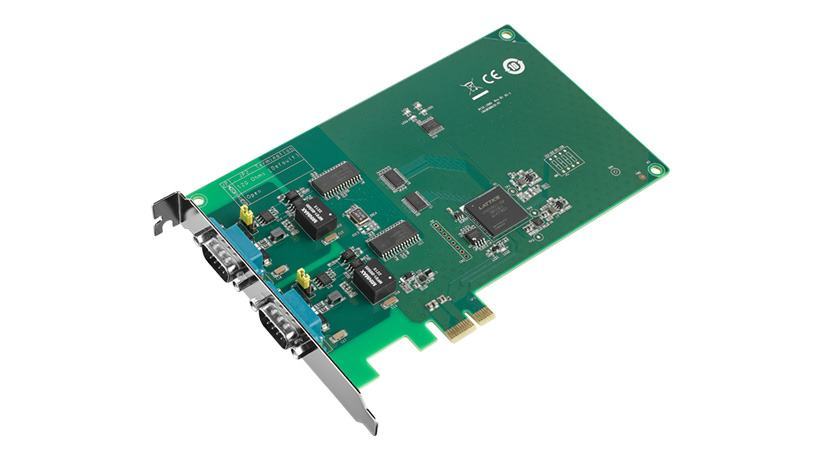

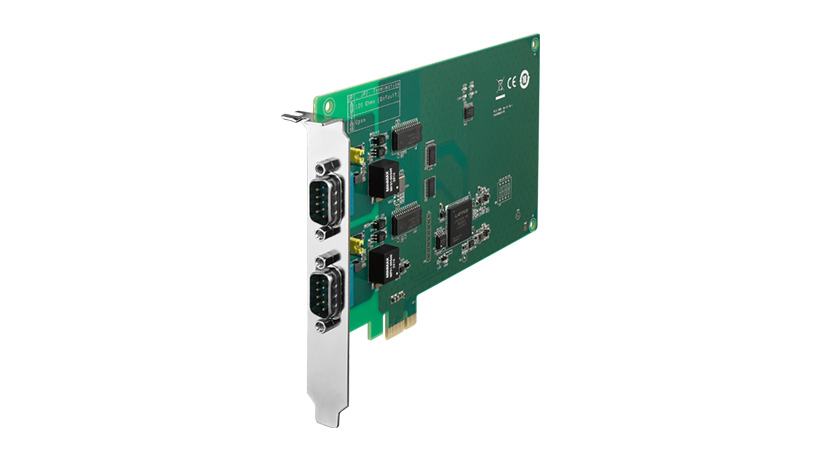

PCIE-1680-B 2-Port CAN-Bus PCIe Card with Isolation

The Advantech PCIE-1680 is a specialized communication card designed to integrate Controller Area Network (CAN) connectivity into PCs. The card, known for its robust design, operates with part number SKU (not provided). It features dual independent CAN controllers for simultaneous network operation, supporting critical industrial applications.

Key Features:

• Compliant with PCIe bus specification 1.2
• Supports two separate CAN networks concurrently
• High-speed transmission capability up to 1 Mbps
• CAN controller frequency of 16 MHz
• 2,500 VDC optical isolation for improved reliability
• Includes Windows DLL library and examples
• Compatible with Windows 10/11 and Linux 2.4.xx / 2.6.xx on Intel x86 platforms
• CE, FCC certified
• Operating temperature: 0 ~ 70 °C
• Supports Linux SocketCAN

Features independent NXP SJA-1000 CAN controllers. Includes transmit/receive status LED indicators for easy monitoring.
