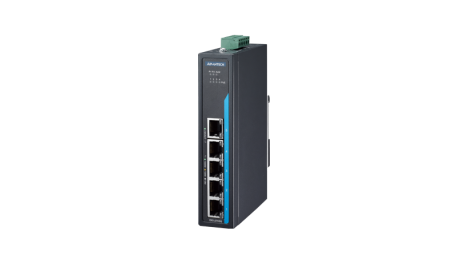

EKI-2705G-1GPI-B Unmanaged PoE switch 5 LAN with with 4x PoE+ 10/100/1000 Mbps

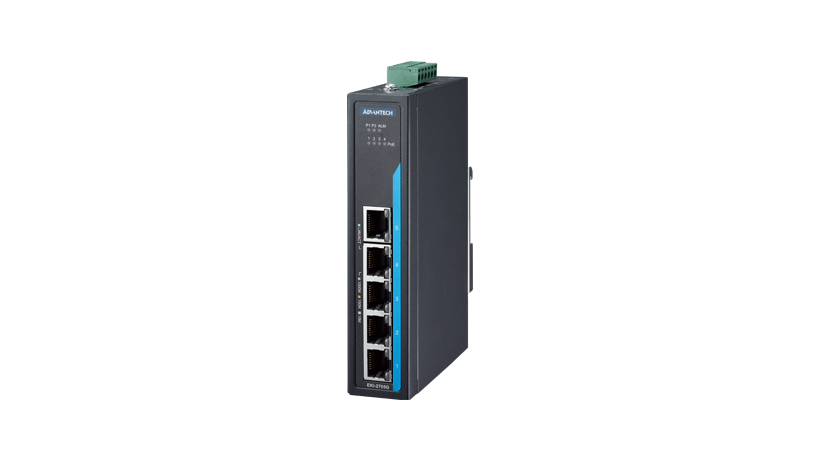

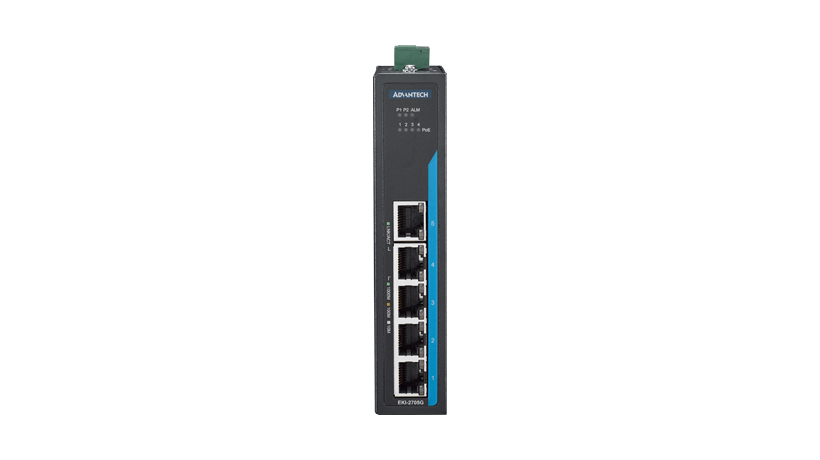

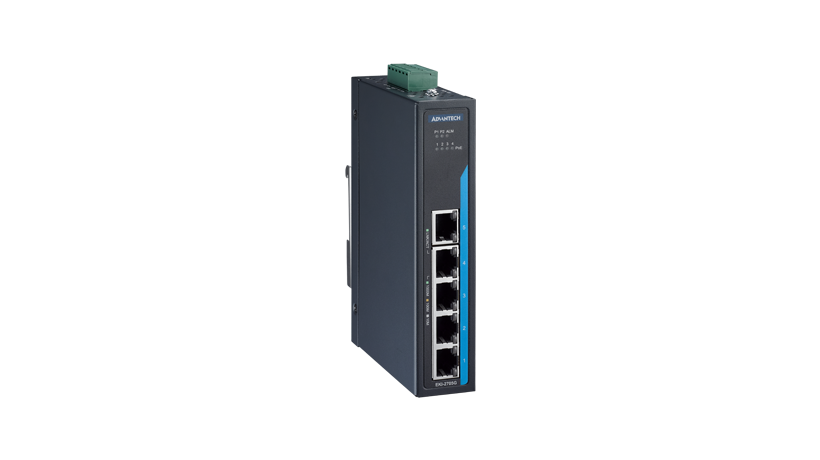

The EKI-2705G-1GPI-B is an Advantech unmanaged industrial PoE switch with 5 Gigabit Ethernet ports, designed for robust industrial networking. It is equipped to handle harsh environments with its sturdy construction and comprehensive power protection features.

Key Features:

• Support for 10/100/1000 Mbps auto negotiation
• 4-port IEEE 802.3 af/at PoE/PoE+ capability
• Redundant 24 ~ 48 VDC power inputs

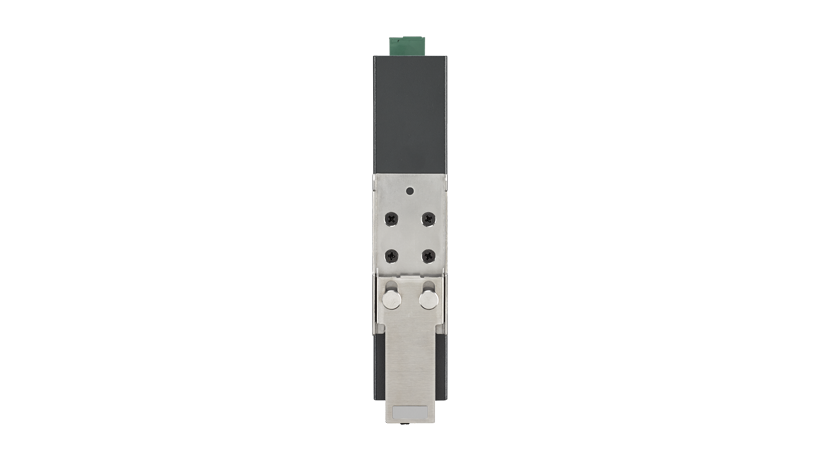

• DIN-rail mounting with IP30 metal casing

This switch offers a jumbo frame transmission of up to 9 kbytes and features comprehensive certifications including CE and FCC Class A for EMI, and UL 62368 for safety. Moreover, it can withstand shock, vibration, and freefall conditions as per IEC standards. Ideal for industrial applications, it supports 24 ~ 48 VDC power input and includes power polarity reverse protection and overload protection.

Additional specifications include a MAC table size of 2K, a packet buffer size of 1M bit, and an operational temperature range from -40 to 75°C. It also carries an MTBF of 1,697,086 hours, emphasizing its durability for long-term use in industrial settings.
