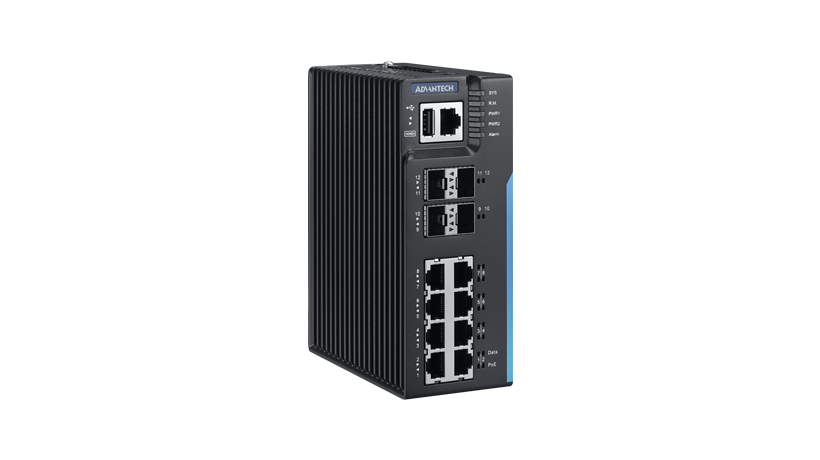

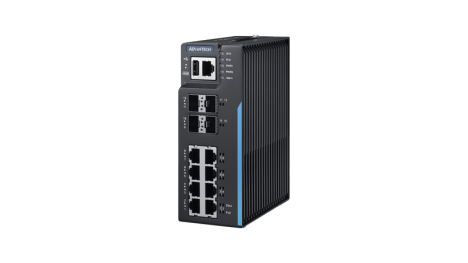

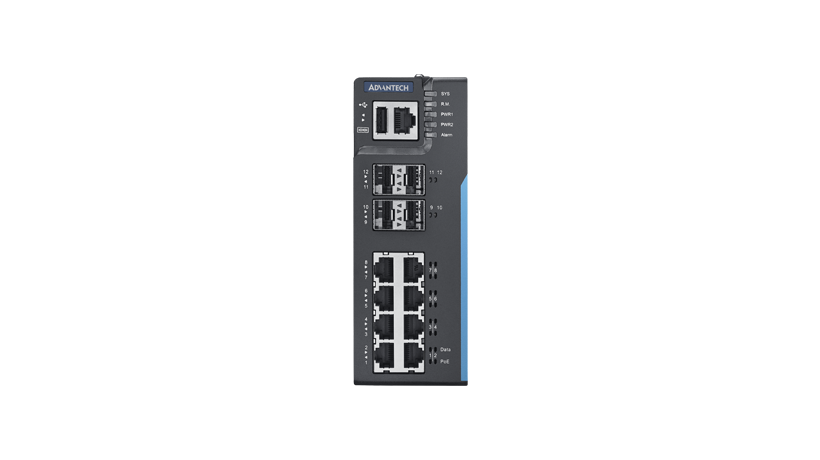

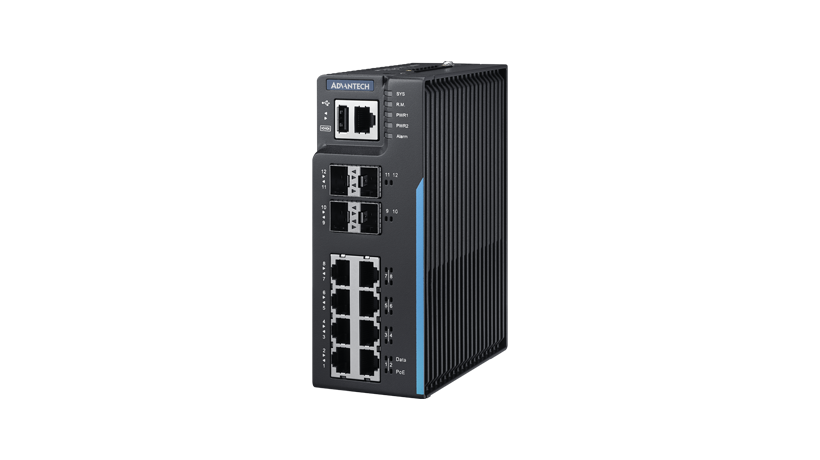

EKI-8712G-4XFPI-AE 8-Port Gigabit Managed Industrial PoE Switch with 4 10G SFP+ Ports

8-Port Gigabit Managed Industrial PoE Switch with 4 10G SFP+ Ports
8-Port Gigabit Managed Industrial PoE Switch with 4 10G SFP+ Ports
8-Port Gigabit Managed Industrial PoE Switch with 4 10G SFP+ Ports
8-Port Gigabit Managed Industrial PoE Switch with 4 10G SFP+ Ports
logo ADVANTECH Industrial computer manufacturer

The EKI-8712G-4XFPI-AE is particularly suitable for deploying industrial networks requiring both numerous PoE devices and high-speed uplinks.

Its 8 Gigabit PoE ports allow connecting and powering field devices, while its 4 10G SFP+ ports can form a fiber network, inter-switch links, or SHR.

Static routing, NAT, VLAN, multicast management, and QoS simplify the segmentation and prioritization of traffic between machines, production cells, and the central network.

For accelerated deployment, it integrates the IXM function, a DIN-rail or wall-mounted installation, and various remote administration tools such as SNMP, Web, NMS, SSH, and Modbus/TCP. The X-Ring Pro, ERPS, RSTP, MSTP, and STP protocols ensure network continuity in case of link failure.

Key Features:

  • 8 Gigabit Ethernet ports and 4 SFP+ ports
  • Supports 8 IEEE 802.3at/af PoE ports
  • X-Ring Pro for ultra-fast recovery time (<20 ms)
  • Security Pack with comprehensive network protection
Technical sheet

Ask for a quotation!

J+1 Chronopost delivery

Secured payment

23+ years experience

Experts team

Reknown brands

Sales department available

Monday to Friday, from 9am to 6pm

04 37 69 72 00
Characteristic Value
Copper Ethernet ports 8 RJ-45 10/100/1000BASE-T/TX ports
Fiber ports 4 mini-GBIC SFP+ ports
Ethernet negotiation Auto-negotiation
Transmission modes Full Duplex and Half Duplex
Cable detection Auto MDI/MDI-X
Ethernet standard 10 Mbps IEEE 802.3 for 10BaseT
Ethernet standard 100 Mbps IEEE 802.3u for 100BaseT(X)/FX
Gigabit Ethernet copper standard IEEE 802.3ab for 1000BaseT(X)
Gigabit Ethernet fiber standard IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
10 Gigabit Ethernet fiber standard IEEE 802.3ae
Flow control IEEE 802.3x
PoE ports Ports 1 to 8 compatible with IEEE 802.3af and IEEE 802.3at
PoE budget 240 W
Console port RS-232 on RJ-45 connector
USB port USB Type-A
Power connector 8-pin screw terminal block integrating relay output
Digital input 1 channel
Digital input logic level 1 +13 to +30 V
Digital input logic level 0 -30 to +3 V
Maximum digital input current 8 mA
Switching capacity 96 Gbps
Forwarding rate 71.2 Mpps
MAC address table 16,000 entries
Maximum jumbo frame size 12,288 bytes
Maximum IGMP groups 256
Maximum VLAN groups 256
VLAN ID range 1 to 4094
VLAN IEEE 802.1Q VLAN tagging
VLAN stacking IEEE 802.1ad QinQ
Port mirroring 1 to 1 or N to 1
Maximum mirroring sessions 4
Remote port analysis RSPAN
GARP protocols GVRP and GMRP
IPv4 multicast management IGMP Snooping v1, v2, and v3
IPv6 multicast management MLD Snooping
Multicast optimization IGMP Immediate Leave
Storm control Broadcast, multicast, and unknown unicast
Topology discovery IEEE 802.1ab LLDP and LLDP-MED
Industrial protocol Modbus/TCP
Standard redundancy IEEE 802.1D STP, IEEE 802.1w RSTP, and IEEE 802.1s MSTP
Industrial redundancy X-Ring Pro
X-Ring Pro recovery time Less than 20 ms
Ethernet ring protection ERPS G.8032
Priority queue scheduling WRR, Strict Priority, and hybrid priority
Maximum priority queues 8
Service classes IEEE 802.1p, IP TOS, and DSCP
Rate limiting Ingress and egress rate limiting
Dynamic link aggregation IEEE 802.3ad
Static link aggregation Static Port Trunking
Port security Static or dynamic MAC addresses, learning limitation, and MAC violation notification
IEEE 802.1X authentication Port or MAC address-based authentication
802.1X encryption methods MD5, PEAP, TLS, and TTLS
MAB authentication MAC Authentication Bypass
Authentication servers RADIUS and TACACS+
IP security IP Source Guard, DHCP Snooping, and ARP spoofing prevention
Access control lists IP ACL and MAC ACL
Maximum ACL entries 128
Security pack 802.1X, ACL, RADIUS, TACACS+, MAB, SNMPv3, HTTPS, SSH, and SFTP
PoE management System configuration, port settings, and status monitoring
DHCP functions Client, server, options 66, 67, and 82, and DHCP relay
Administration protocols SNMP v1, v2c, and v3, Web interface, Telnet, and RMON
Supported MIBs Standard MIB-II, private MIB, Ethernet-Like MIB, and RMON MIB groups 1, 2, 3, and 9
Secure access SSH 2.0 and SSL
Software update TFTP, SFTP, and HTTP
Update security Dual software image
Time synchronization SNTP client
Centralized monitoring NMS compatibility for remote visual monitoring and administration
Deployment function IXM to accelerate deployment and reduce configuration time
Unicast routing Static routing
Address translation NAT
Enclosure Metal
Protection rating IP40
Installation DIN-rail or wall-mount
Dimensions 57.5 × 152 × 116 mm
System indicators PWR1, PWR2, SYS, Alarm, and R.M.
Port indicators Link, speed, activity, and PoE
Operating temperature -40 to 75 °C
Operating temperature with four copper SFP modules -40 to 50 °C
Storage temperature -40 to 85 °C
Relative humidity 5 to 95%, non-condensing
Overcurrent protection Present
Reverse polarity protection Present
MTBF To be determined
System power consumption 24 W at 54 VDC
Power supply 48 VDC, range from 46 to 57 VDC
Recommended power supply for IEEE 802.3at PoE 53 to 57 VDC
Power redundancy Two DC power inputs
Fault output 1 relay output
Relay output capacity 1 A at 24 VDC
Electrical safety UL 62368
ESD resistance IEC 61000-4-2, 8 kV contact, and 15 kV air discharge
Radiation resistance IEC 61000-4-3, 20 V/m
Magnetic field resistance IEC 61000-4-8
Industrial EMC standards EN 61000-6-2 and EN 61000-6-4
Shock resistance IEC 60068-2-27
Drop resistance IEC 60068-2-32
Vibration resistance IEC 60068-2-6
Environmental compliance RoHS 2002/95/EC
Restriction on copper SFP modules Only 10 Gbps supported
Size 165x230x100mm
Weight 1300g
Mount options DIN Rail, Wall mount
SKU EKI-8712G-4XFPI-AE
Brand ADVANTECH
