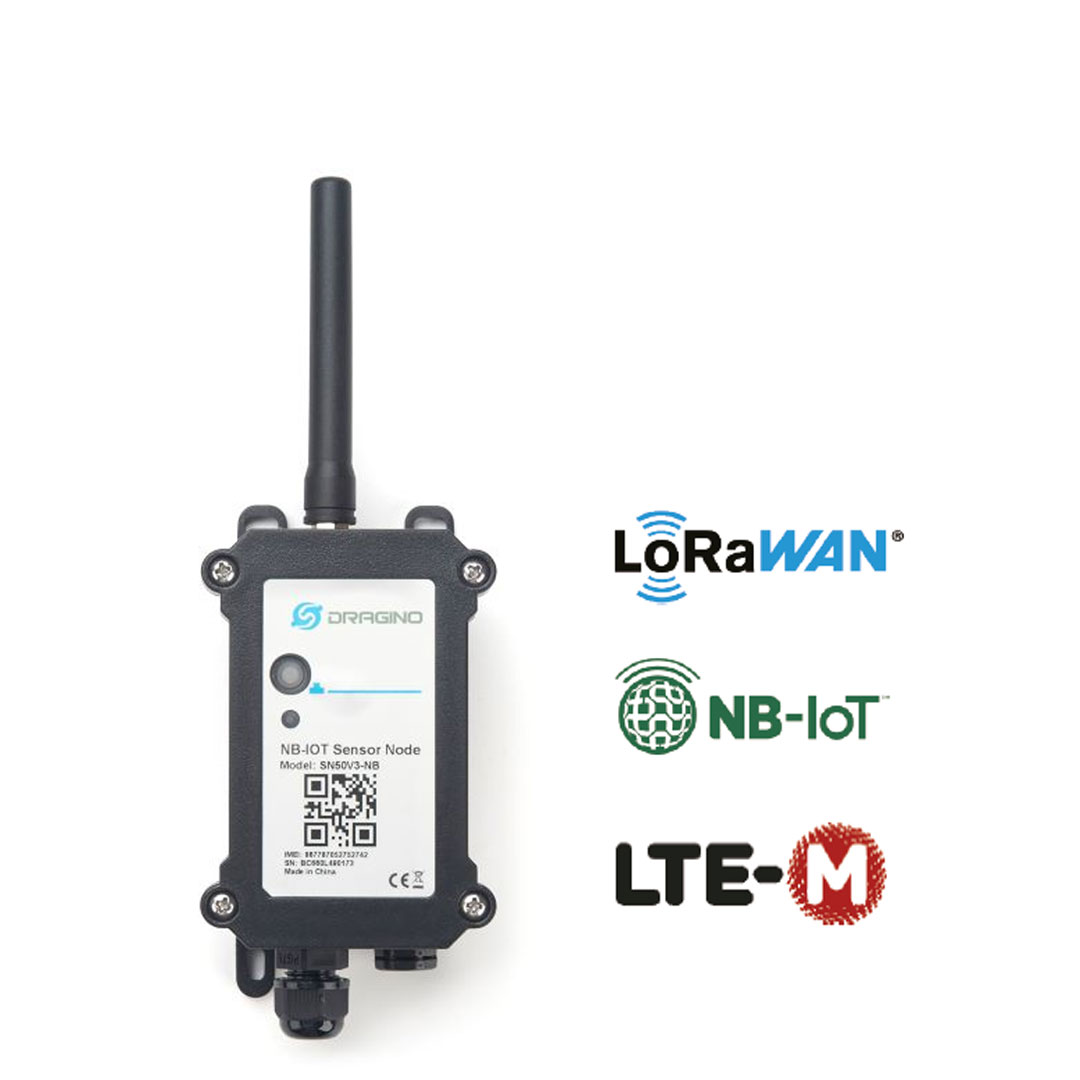

SN50v3 SN50v3-NB/xS – NB-IoT / CAT-M1 Wireless End Node

Technical specifications :

-Supported Networks: NB-IoT & CAT-M1 (LTE-M)
-NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85
-LTE-M Bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
-Uplink Protocols: MQTT, MQTTs, TCP, UDP, CoAP
-Hardware Interfaces: Digital I/O, UART, I2C, One-Wire, 3.3V and 5V outputs
-BLE for remote configuration and OTA updates
-Battery: 8500 mAh Li/SOCl2 (non-rechargeable) or solar version with Li-Ion battery
-Battery Protection: self-discharge <1%/year at 25°C
-Location support: GPS/GLONASS/BDS/Galileo/QZSS (version-dependent)
-RX Sensitivity: down to -139 dBm
-RF Power: max +22 dBm (100 mW)
-Industrial-grade outdoor casing with connector options: M12, M16, M20
-Multi-sampling with single uplink support
-1T Version: Includes preconfigured 1NCE SIM (500MB / 10 years) with ThingsEye IoT service
