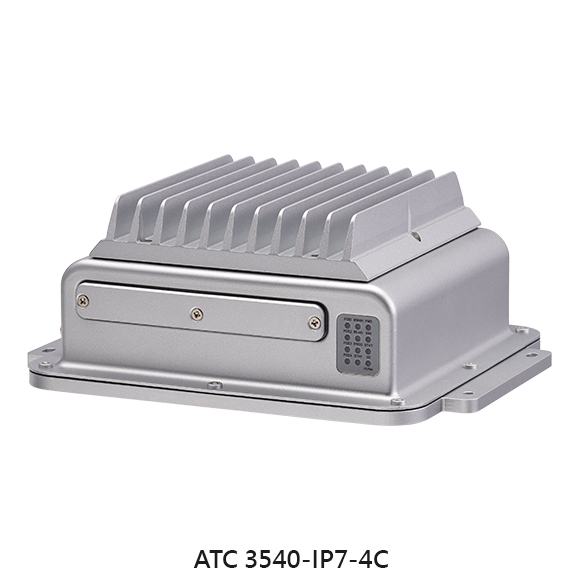

ATC 3540-IP7-4C NVIDIA® Jetson Orin™ NX Solution Accelerated Edge AI Computing

The ATC 3540-IP7 is a compact and rugged computer optimized for Edge AI, designed to meet the demands of embedded and industrial environments. Equipped with the NVIDIA® Jetson Orin™ NX module, it delivers top-tier computing power of up to 100 TOPS (INT8) for artificial intelligence inference while maintaining low energy consumption (25W). This device is ideal for Edge AI applications such as advanced vehicle recognition (ADAS), traffic signal control, industrial vision, and IoT gateways.

With its fanless design and IP67 certification, the ATC 3540-IP7 withstands extreme conditions, operating in a temperature range from -30°C to 70°C. It also meets the MIL-STD-810G military standards for vibration and shock, ensuring optimal durability in industrial and mobile environments.

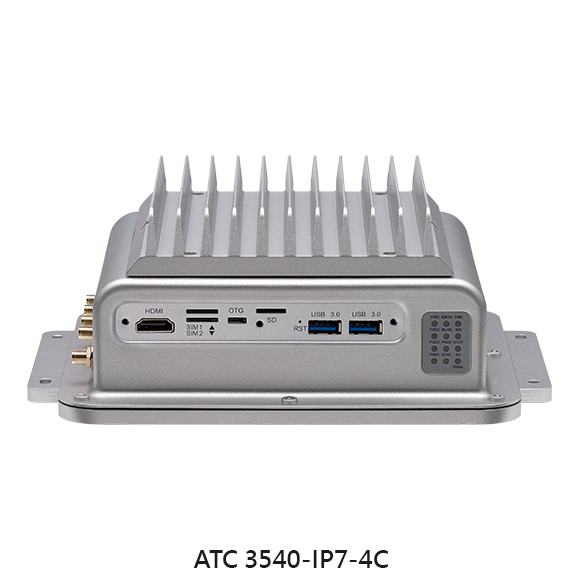

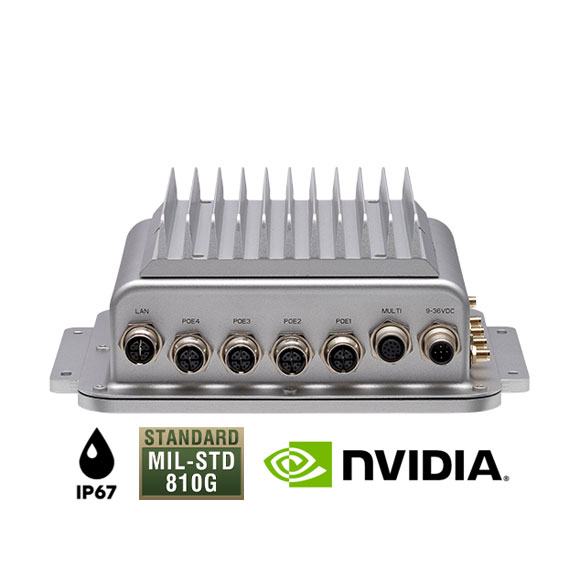

The ATC 3540-IP7 features multiple ports for rich connectivity, including four PoE+ ports for connecting IP cameras or LiDAR sensors, as well as USB 3.2, isolated CANBus, RS232, and HDMI ports, providing great flexibility for peripheral and sensor installations. The option to add 5G NR or Wi-Fi 5/6 modules enables advanced connectivity, facilitating AI inference in collaboration with cloud services for real-time model retraining.

In terms of compliance, the ATC 3540-IP7 is certified CE/FCC Class A, UKCA, Emark, and EN50155, making it suitable for applications in transportation and industry, ensuring both performance and durability.
