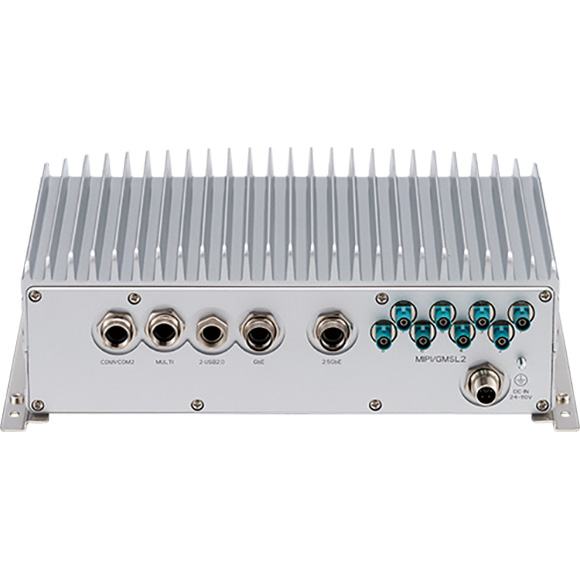

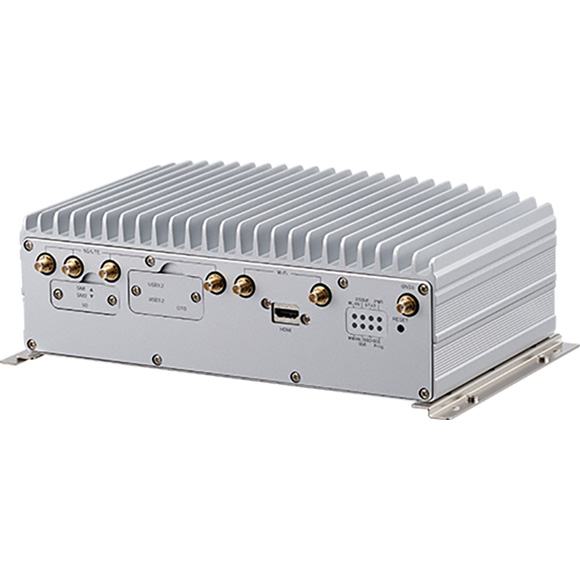

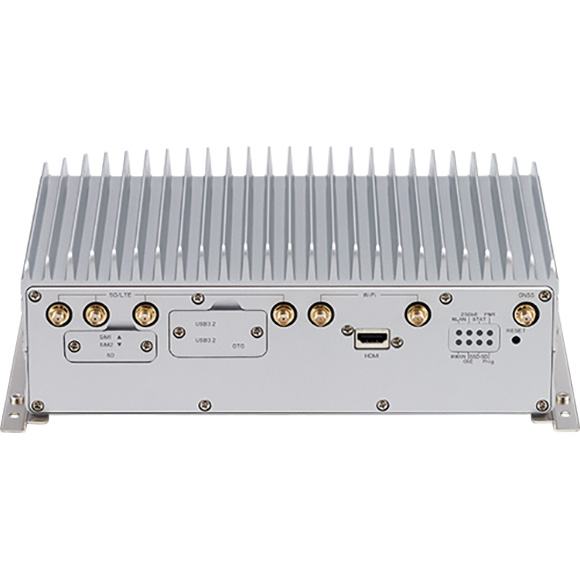

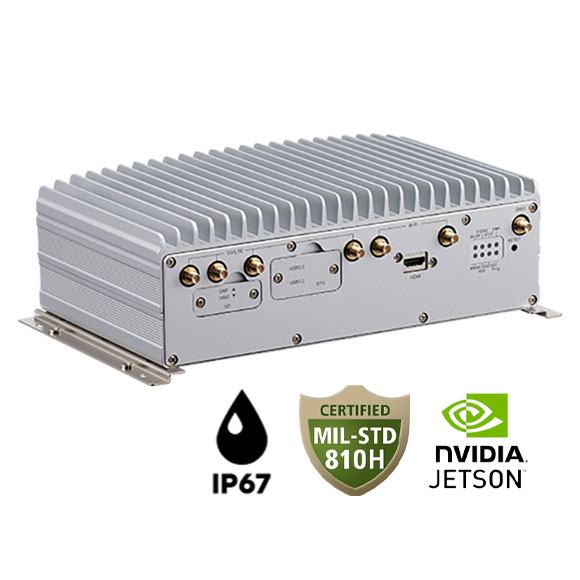

ATC 3750-IP7-WI8MR NVIDIA® Jetson AGX Orin™ Solution Performance Edge AI Computing for Rail

Built with the NVIDIA® Jetson AGX Orin™ module, the ATC 3750-IP7-WI8MR offers up to 275 TOPS (INT8) of computing power, allowing it to manage advanced AI applications, including railway safety assurance, operations optimization, maintenance management, and autonomous trains.

This compact and rugged device is IP67 certified and compliant with MIL-STD-810H military standards for vibration and shock resistance, ensuring reliability in extreme conditions with an operating temperature range from -25°C to 70°C. It supports a 24 to 110VDC power supply with isolation, ignition control, and over-voltage protection.

The specifications of the ATC 3750-IP7-WI8MR include:

• AI Processor: NVIDIA Jetson AGX Orin™ (up to 275 TOPS INT8)
• Memory: up to 64GB LPDDR5 and 64GB eMMC storage, with PCIe 4.0 NVMe support for additional storage
• Sensor Connectivity: 8 MIPI/GMSL2 ports for cameras and LiDAR sensors, plus 2.5GbE and GbE Ethernet ports for high-speed connections
• Expansion Options: GNSS, LTE/5G NR, Wi-Fi 5/6
• Peripheral Ports: USB 3.2, isolated CANBus, RS232, RS422/RS485, Console, HDMI, and various digital I/O (DI/DO) options
• Compliance and Certifications: CE/FCC Class A, UKCA, EN50155, EN45545-2

Thanks to NEXCOM’s advanced thermal solutions, it operates efficiently without a fan, even in harsh environments, while enabling AI model retraining via the cloud. Designed for railway transport applications, the ATC 3750-IP7-WI8MR is a powerful and flexible edge AI solution for critical environments.
