| Graphics Engine |
Intel® Iris® X |
| Maximum Capacity |
64 GB with 2 x slots |
| Notes |
Be sure to select thermal pad for CPU/RAM for RAM capacity expansion |
| M.2 B key Support |
2242 SSD (SATA signals) or 3042/3052 cellular modules (USB Signals) |
| M.2 E key Support |
2230 Wi-Fi modules (PCIe signals) |
| Full-sized mPCIe Support |
1 x (PCIe/USB 2.0 signals) |
| LAN B |
Intel® i210-IT GbE, IEEE 802.3AZ/802.1AS |
| LAN C |
Intel® i219-LM GbE, IEEE 802.3AZ/802.1AS |
| Total LAN Ports |
2 x 10/100/1000BASE-T Fast Ethernet (RJ45), 1 x 10/100/1000/2500BASE-T Fast Ethernet (RJ45) |
| TSN Support |
Supported via i225 LAN port, IEEE 802.1Qav/802.Qbv |
| Speed Range |
50 ~ 115.2 kbps |
| Isolation Protection |
2500 VDC |
| USB 2.0 |
1 x (Type A) |
| Digital Input - Wet Contact |
Logic 0: 10 ~ 30 VDC; Logic 1: 0 ~ 3 VDC |
| Digital Input - Dry Contact |
Logic 0: Shorted to GND; Logic 1: Open |
| Digital Output Channels |
8 x |
| Digital Output Voltage |
5 ~ 30 VDC |
| M.2 E key |
1 x for 2230 Wi-Fi modules (PCIe signals) |
| M.2 M key |
1 x for 2280 NVMe (PCIe x4 signals) |
| M.2 B key |
1 x for 2242 SSD (SATA signals) or 3042/3052 cellular modules (USB Signals) |
| nano SIM card slot |
1 x |
| Watchdog Timer |
Programmable timer with 255 intervals (1 ~ 255 sec) |
| Security |
TPM2.0 |
| Power Consumption (Typical) |
31W |
| Power Consumption (Maximum) |
55W |
| Power Connector |
1 x 2-pin terminal block |
| Form Factor |
Regular size |
| Enclosure |
Aluminum housing |
| Mount Option |
DIN Rail |
| Weight (Net) |
1.3 kg / 2.86 lb |
| Storage Temperature |
-40 ~ 85 °C/-40 ~ 185 °F |
| Relative Humidity |
95% RH @ 40 °C/104 °F, non-condensing |
| Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Vibration Protection (SSD) |
Operating, IEC 60068-2-64, 4Grms, random, 5 ~ 500Hz, 1hr/axis |
| Vibration Protection (HDD) |
Operating, IEC 60068-2-64, 0.3Grms, random, 5 ~ 500Hz, 1hr/axis |
| Ingress Protection |
IP20 |
| IoT Certifications |
Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified |
| Typical Applications |
Industrial automation and control, Edge computing and IoT gateway applications, Fieldbus communication gateways with optional iDoor expansion, Time-Sensitive Network (TSN) enabled real-time systems, DIN-rail mounted controller systems requiring fanless operation |
| Caveats |

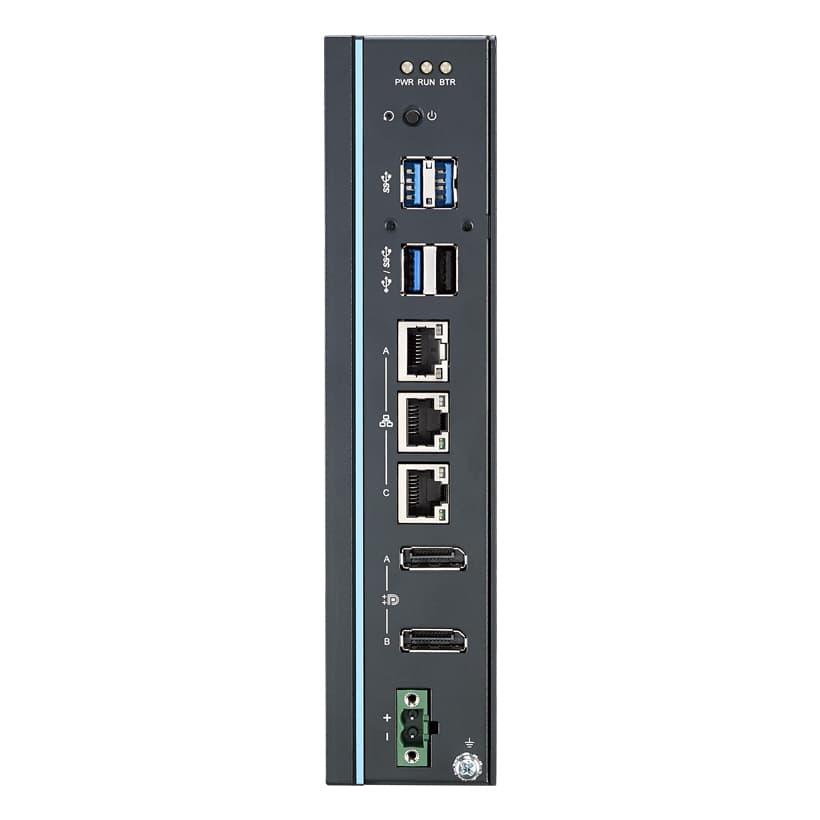

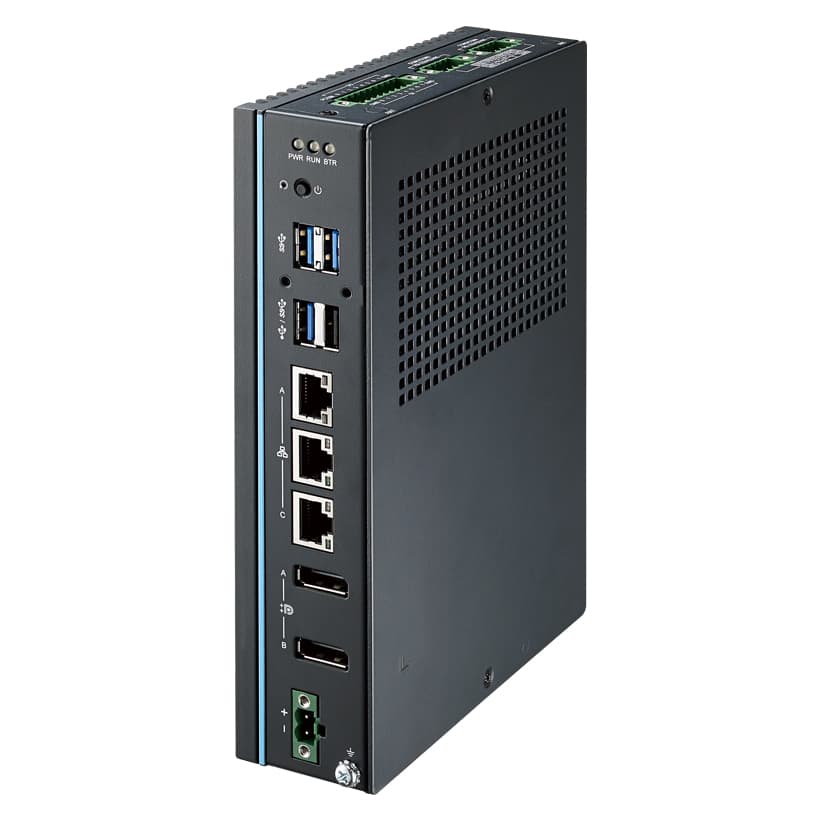

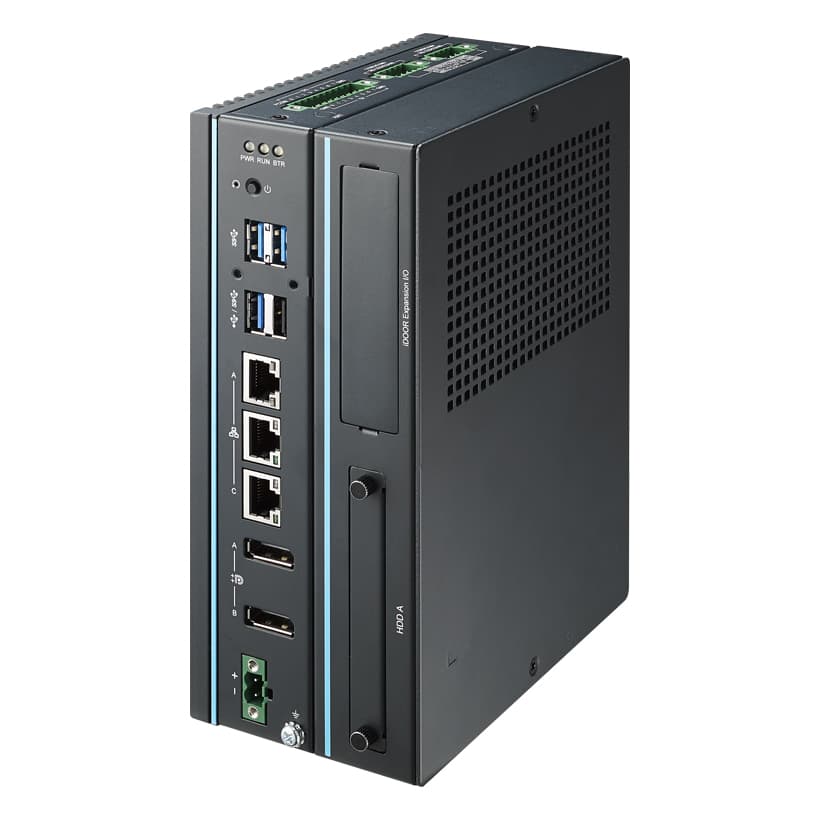

UNO-148-B33BA features the Intel Core i3-1115G4E processor (dual-core, 2.2 GHz base / 3.9 GHz turbo), which is the entry-level processor tier within the UNO-148 family. Memory capacity is expandable to 64 GB via dual SO-DIMM slots; thermal pads must be selected for CPU/RAM when expanding RAM capacity. Optional second-stack extension kits (UNO-148-IS2EA with iDoor + 2.5" storage, or UNO-148-P11EB with PCIe x4) can be used to expand I/O and storage capabilities. Maximum power consumption is 55W (base model); consumption may increase with extension kits (e.g., 61W with UNO-148-IS2EA, 76W with UNO-148-P11EB). Embedded OS options include Windows 10/11 LTSC and AdvLinux Ubuntu 20.04 or 22.04. |
| Processor System |
| CPU |
Intel® Core™ i3-1115G4E dual-core, 2.2 GHz (up to 3.9 GHz) |
| Memory |
| Type and Speed |
8 GB DDR4 SODIMM-3200 |
| Storage |
| M.2 M key Support |
2280 NVMe (PCIe x4 signals) |
| Graphics |
| Display Outputs |
2 x DP 1.4, up to 7680 x 3840 (8K) @ 60 Hz |
| Ethernet |
| LAN A |
Intel® i225-LM 2.5GbE, IEEE 802.3AZ/802.1AS |
| Serial Ports |
| Isolated Serial Ports |
4 x RS-232/422/485 (terminal block) |
| USB |
| USB 3.2 Gen 2 |
3 x (Type A) |
| Digital I/O |
| Digital Input Channels |
8 x with 2500 VDC isolation protection |
| Digital Output Capability |
| Sink |
500 mA max./channel |
| Expansion |
| Full-sized mPCIe |
1 x (PCIe/USB 2.0 signals) |
| Indicators & Buttons |
| LED Indicators |
1 x Power, 1 x RTC battery, 1 x LAN (active, status), and 1 x programmable indicator |
| Watchdog / TPM / BIOS |
| BIOS |
AMI UEFI 256Mbit |
| OS Support |
| Operating Systems |
Windows 10 2019 LTSC, Windows 11, AdvLinux (Ubuntu 20.04) |
| Power |
| Power Requirement |
10 ~ 36 VDC |
| Mechanical |
| Dimensions (W x D x H) |
45 x 140 x 200 mm (1.4 x 5.5 x 7.8 in) |
| Environmental |
| Operating Temperature |
-20 ~ 60 °C/-4 ~ 140 °F with 0.7 m/s airflow |
| Certifications & Compliance |
| Certifications |
CE, FCC, UL61010-2-201, CCC, BSMI, RHEL 8.4+ |
| SKU |
UNO-148 |
| Brand |
ADVANTECH
|
Configured and assembled in France
