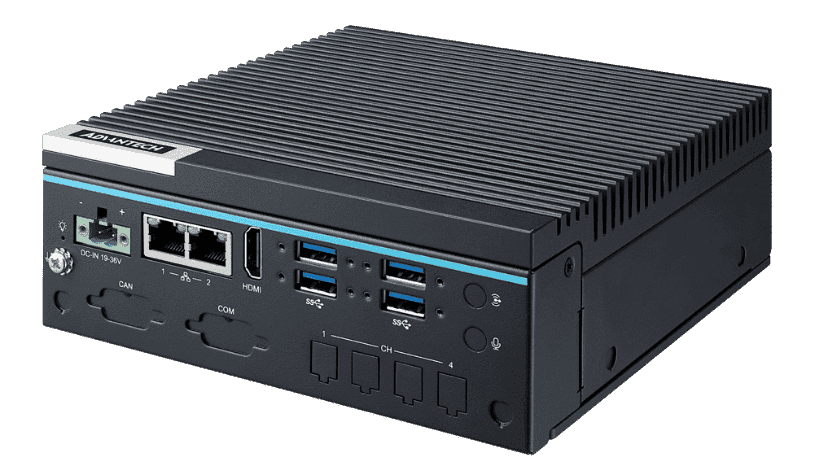

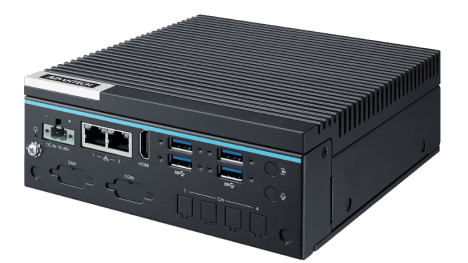

MIC-712-OX4A1 AI System with NVIDIA Jetson Orin NX 16GB / 128GB and optional GMSL, PoE, USB

The MIC-712-OX4A1 is an Advantech AI platform based on NVIDIA Jetson Orin NX. It is designed for mobility applications in safety and security.

Key Features:

• Ultra-slim design for mobile equipment in safety and security applications
• Embedded with NVIDIA Jetson Orin NX/Orin Nano
• Multiple expansions including GMSL, PoE, USB
• Support for NVIDIA super mode up to 157 TOPS performance
• Integrate Out-of-Band management within the system

The system's compact dimensions are 250L x 240W x 160H mm, and it has a gross weight of 2.550 kg, making it suitable for varied industrial settings.

The MIC-712-OX4A1 is equipped with an 8-core NVIDIA Arm Cortex A78AE CPU and a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, providing powerful edge AI capabilities. It includes 16GB LPDDR5 memory and a pre-installed 128GB NVMe SSD.

Additionally, the system offers extensive I/O options such as HDMI display output, Ethernet ports, and USB interfaces, along with M.2 expansions for connectivity and additional features like Micro SD and Nano SIM slot.

Operating within a temperature range of -25 ~ 70°C with specific airflow conditions, this unit supports Jetpack JP6.2 software ensuring compliance in various landscapes.
