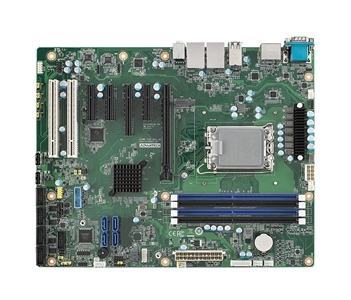

AIMB-788G2-00A1 Industrial ATX motherboard compatible with 12th, 13th, and 14th gen i9/i7/i5/i3 with DP + HDMI + VGA + USB 3.2 + M.2

Industrial ATX motherboard compatible with 12th, 13th, and 14th gen i9/i7/i5/i3 with DP + HDMI + VGA + USB 3.2 + M.2
logo ADVANTECH Industrial computer manufacturer

The AIMB-788G2-00A1 is compatible with 12th, 13th, and 14th gen Intel processors. This ATX motherboard can therefore support Intel Core i3, i5, i7, and i9 CPUs. It can also be equipped with up to 128GB of maximum RAM. It standardly features 2 gigabit Ethernet ports as well as 3 video outputs (DP, HDMI, VGA) and 8 external USB ports.

From the Advantech AIMB series, this industrial motherboard supports RAID (0, 1, 5, and 10) and has SATA and M.2 connectivity. It also features PCI, PCIe x4, PCIe x8, and PCIe x16 slots, making it possible to add large format GPU graphics cards.

Key Features:

  • Intel 12th/13th/14th generation Core i9/i7/i5/i3 support with Q670E chipset
  • Four DIMM sockets up to 128 GB DDR4 3200 MHz
  • Triple display with DP/HDMI/VGA and dual GbE LAN
  • M.2 and SATA RAID 0, 1, 5, 10 support
  • Integrated iBMC remote management for industrial IoT
  • AWS IoT Greengrass qualified

Additionally, the AIMB-788G2-00A1 includes an Advantech iBMC remote out-of-band power management solution on DeviceOn, and it is certified with CE and FCC standards. The board operates in temperatures from 0 ~ 60 °C and supports non-operating temperatures down to -40 °C.

Read more
Technical sheet

Ask for a quotation!

J+1 Chronopost delivery

Secured payment

23+ years experience

Experts team

Reknown brands

Sales department available

Monday to Friday, from 9am to 6pm

04 37 69 72 00
Configured and assembled in France
Characteristic Value
Processor System Socket LGA 1700, Chipset Q670E, Supported Processors Intel 12th/13th/14th generation Core i9/i7/i5/i3, Memory: Technology Dual Channel DDR4 3200 Non-ECC UDIMM, Max Capacity 128 GB, Sockets 4 x 288-pin DIMM, Storage: SATA Channels 4, SATA Max Data Transfer Rate 600 MB/s, SATA RAID RAID 0, 1, 5, 10, M.2 1 (PCIex4 Gen 4 M-key 2280 type), Graphics: Graphics Controller Chipset integrated Intel UHD Graphics, VRAM Shares system memory is subjected to OS, Display Output: VGA 1 (Resolution up to 1920 x 1200 @ 60Hz), HDMI 1 (Resolution up to 3840 x 2160 @ 60Hz), DisplayPort 1 (Resolution up to 4096 x 2304 @ 60Hz), Ethernet: Interface 10/100/1000 Mbps, GbE LAN1 Controller Intel I219-LM (PHY), GbE LAN2 Controller Intel I210-AT, Connector 2 x RJ-45, I/O Interfaces - Rear: USB 3.2 Gen 2 2, USB 3.2 Gen 1 2, USB 2.0 4, Serial (RS-232) 1, Audio 2 (Line-out, Mic-in), Ethernet 2, Watchdog Timer: Output System reset, Interval Programmable 1 ~ 255 sec, TPM: dTPM 2.0 module (optional, required to enable Intel vPro and TPM technologies), Intel Platform Trust Technology (Intel PTT) Ready for Windows 11, iBMC: Advantech iBMC remote out-of-band power management solution on DeviceOn, AWS IoT: AWS (Amazon Web Service) IoT Greengrass qualified, Power: Power On Configuration Intel Core i 65W, DDR4 32 GB x 4, Environmental: Operating Temperature 0 ~ 60 °C (32 ~ 140 °F), Non-Operating Temperature -40 ~ 85 °C, Operating Humidity 95% @ 40 °C, non-condensing
SKU AIMB-788G2-00A1
Brand ADVANTECH
