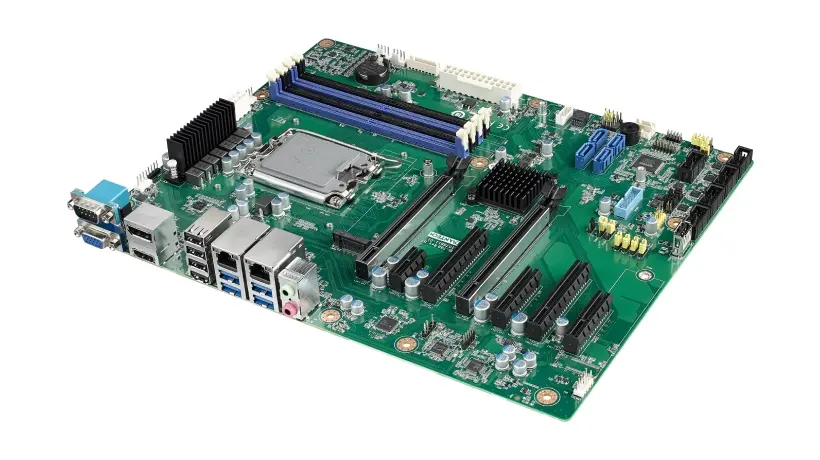

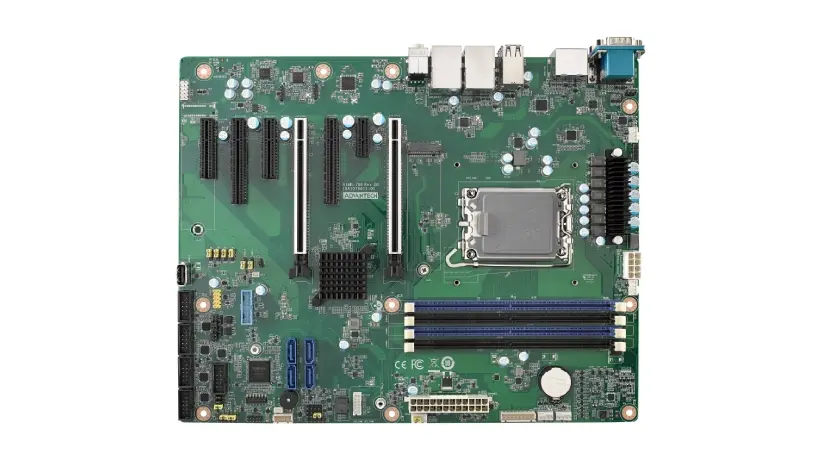

| Socket |
LGA 1700 |
| Chipset |
Q670E |
| Supported Processors |
Intel 12th/13th/14th generation Core i9/i7/i5/i3, Pentium G7400E/G7400TE, Celeron G6900E/G6900TE, Intel Core Processor Series 2 |
| Technology |
Dual Channel DDR5 Non-ECC UDIMM |
| Maximum Capacity |
48 GB per slot; 192 GB total |
| Sockets |
4 x 288-pin DIMM |
| DDR5 Speed |
4400 MT/s with one DIMM per channel, 4000 MT/s with two DIMMs in one channel, 3600 MT/s with two DIMMs per channel |
| Graphics Controller |
Chipset integrated Intel UHD Graphics |
| VRAM |
Shares system memory; amount subjected to OS |
| VGA Output |
1 (Resolution up to 1920 x 1200 @ 60 Hz) |
| HDMI Output |
1 (Resolution up to 3840 x 2160 @ 60 Hz) |
| DisplayPort Output |
1 (Resolution up to 4096 x 2304 @ 60 Hz) |
| SATA Channels |
4 |
| SATA RAID Support |
RAID 0, 1, 5, 10 |
| M.2 Slots |
1 (PCIe x4 Gen 4 M-key 2280 type) |
| SATA Speed |
SATA 3.0 600 MB/s |
| Interface |
10/100/1000 Mbps |
| LAN1 Controller |
Intel I219-LM (PHY) |
| LAN2 Controller |
Intel I210-AT |
| Connectors |
2 x RJ-45 |
| USB 3.2 Gen 1 |
4 ports on rear (5 Gbps) |
| USB 3.2 Gen 1 Internal Headers |
2 x 19-pin header (supports 2 additional USB 3.2 Gen 1 devices) |
| USB 2.0 |
4 ports on rear (480 Mbps) |
| USB 2.0 Internal Headers |
2 x 19-pin header (supports 2 additional USB 2.0 devices) |
| USB 2.0 Internal Type-A |
1 connector |
| RS-232 Rear |
1 |
| RS-232/422/485 Headers |
4 x RS-232, 1 x RS-232/422/485 |
| Codec |
Realtek ALC888S |
| Audio Outputs |
2 (Line-out, Mic-in) |
| PCIe x16 Slots |
2 (1 x Gen 5 x8 link, 1 x Gen 4 x8 link) |
| PCIe x8 Slots |
2 (1 x Gen 4 x4 link, 1 x Gen 3 x4 link) |
| PCIe x4 Slots |
2 (1 x Gen 4 x4 link, 1 x Gen 3 x4 link) |
| PCIe x1 Slots |
1 (Gen 4) |
| Type |
AMI 256 Mbit SPI Flash |
| Watchdog Timer Output |
System reset |
| Watchdog Timer Interval |
Programmable 1 ~ 255 sec |
| TPM |
dTPM 2.0 module required to enable TPM technologies |
| Intel PTT |
Intel Platform Trust Technology (Intel PTT) ready for Windows 11 |
| iBMC |
Advantech iBMC remote out-of-band power management on DeviceOn |
| GPIO |
8-bit |
| USB |
5 (2 x USB 3.2 Gen 1 via pin header, 2 x USB 2.0 via pin header, 1 x USB 2.0 type A connector) |
| Serial |
5 (4 x RS-232, 1 x RS-232/422/485) |
| SATA |
4 |
| M.2 |
1 (PCIe x4 Gen 4 M-key 2280 type) |
| SPI |
1 (Optional dTPM 2.0 module available) |
| Power On Condition |
Intel Core i 65W, DDR5 32 GB x 4 |
| Voltage +3.3V Current |
1.54 A |
| Voltage +5V Current |
1.96 A |
| Voltage +12V Current |
0.07 A |
| Voltage +5Vsb Current |
0.08 A |
| Voltage -12V Current |
0.04 A |
| Voltage -5V Current |
0.01 A |
| Dimensions (L x H) |
304.8 x 244 mm (12" x 9.6") |
| Form Factor |
ATX |
| Operating Temperature |
0 ~ 60 °C (32 ~ 140 °F), depends on CPU loading and system thermal solution |
| Non-Operating Temperature |
-40 ~ 85 °C |
| Operating Humidity |
95% @ 40 °C, non-condensing |
| Non-Operating Humidity |
95% @ 60 °C, non-condensing |
| Certifications |
CE, FCC |
| Part Number |
AIMB-788E-00A1 |
| Memory |
Non-ECC UDIMM DDR5 up to 192 GB |
| Display |
VGA + HDMI + DP |
| USB 3.2 Gen 1 |
6 |
| USB 2.0 |
7 |
| COM |
6 |
| GbE LAN |
2 |
| AMT |
Yes |
| M.2 |
1 |
| SATA 3.0 |
4 |
| SW RAID |
Yes |
| iBMC |
Yes |
| CPU |
Intel i3, Intel i5, Intel i7, Intel i9 |
| SKU |
AIMB-788E-00A1 |
| Brand |
ADVANTECH
|
