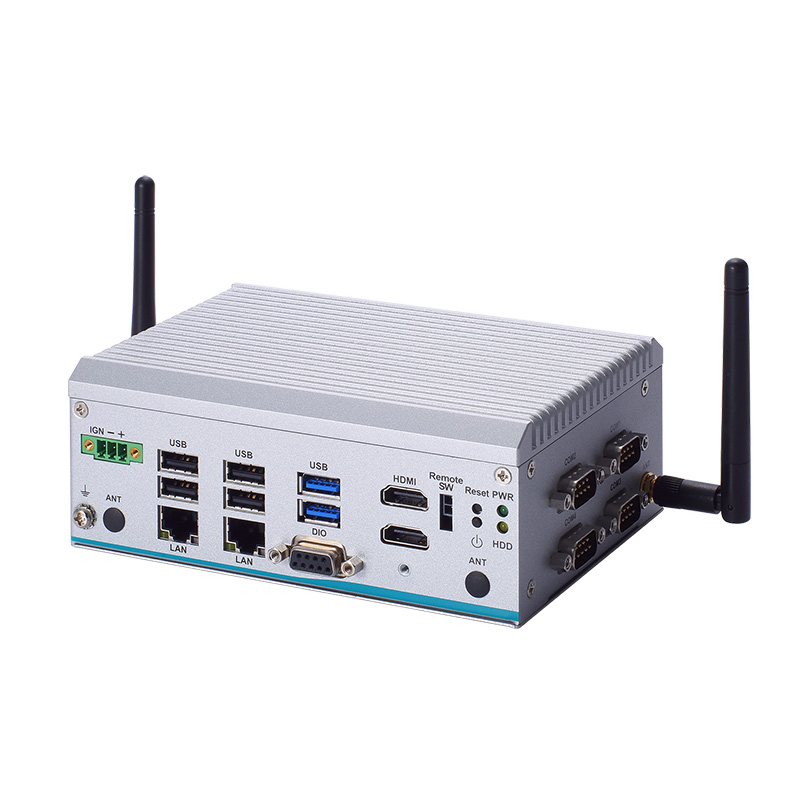

The eBOX100B is a compact fanless PC suitable for industry, robotics, and transport. It stands out with very comprehensive connectivity including 2 x 2.5GbE Intel® I226-V LAN ports, 4 x RS-232/422/485 serial ports with autoflow, 6 x USB ports, an 8-channel TTL DIO interface, and 2 lockable HDMI outputs.

It withstands shocks, vibrations, and extreme temperatures:

  • IEC 60068-2-27 with SSD
  • IEC 60068-2-64 with SSD
  • MIL-STD-810G
  • Operating from -40° to +70°C
Technical sheet

Ask for a quotation!

J+1 Chronopost delivery

Secured payment

23+ years experience

Experts team

Reknown brands

Sales department available

Monday to Friday, from 9am to 6pm

04 37 69 72 00
Characteristic Value
Processor Intel® Processor N150 Twin Lake, up to 3.6 GHz, 6 W
System Memory 1 x 8 GB embedded LPDDR5, option for 16 GB on project
Chipset SoC
BIOS AMI
Top-side I/O 4 x RS-232/422/485 with autoflow, 1 antenna opening
Bottom-side I/O 1 antenna opening

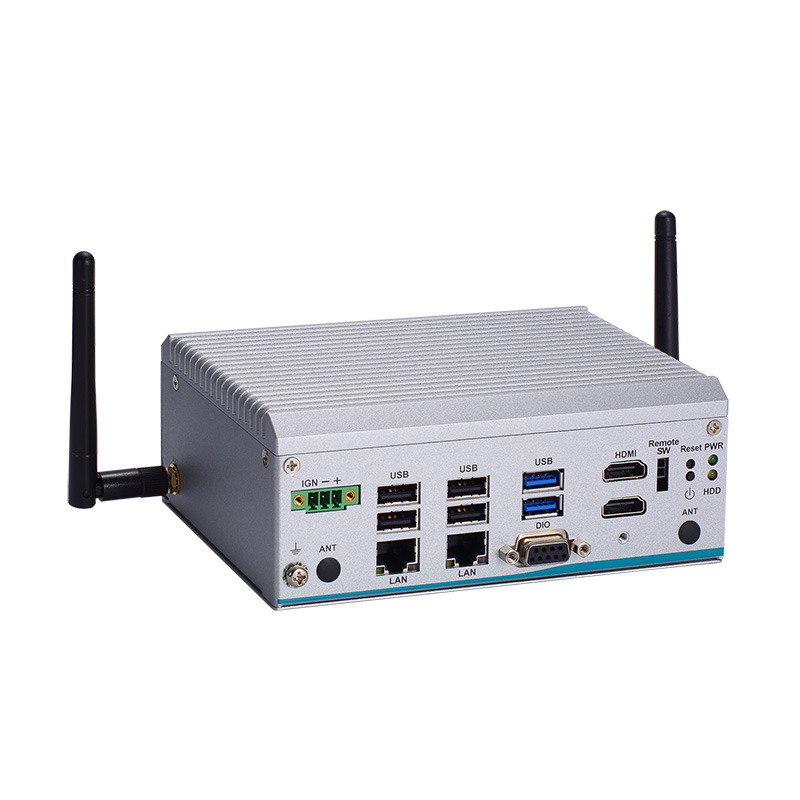

Front I/O 2 x LAN 2.5GbE Intel® I226-V, 2 x USB 3.2 Gen 2, 4 x USB 2.0, 2 x lockable HDMI, 1 x 8-channel TTL DIO, 1 x reset button, 1 x remote switch connector, 1 x power button, 1 x VDC type Phoenix power connector, 1 x chassis ground, 2 x antenna openings
Watchdog Timer 255 levels, from 1 to 255 seconds
Storage 1 x M.2 2280 Key M for NVMe SSD, 1 x SSD/HDD SATA 2.5" up to 15 mm height
Expansion Interfaces 1 x full-size Mini PCI Express Card slot USB 2.0 + PCIe + SIM signal
Wi-Fi Interface 1 x M.2 Key E 2230 socket with USB 2.0 + PCIe x1
NVMe Interface 1 x M.2 Key M 2280 socket with PCIe x4 Gen3
SIM Slot 1 x internal SIM slot for Mini PCIe Card slot
TPM TPM 2.0
System Indicators 1 green LED for system power, 1 orange LED for HDD activity
Power Supply 9 to 36 VDC with ignition
Inrush Current 1.5 to 13 A
Operating Temperature -40°C to +70°C with Wide Temperature DRAM and SSD
Relative Humidity 10% to 90%, non-condensing
Shock Resistance IEC 60068-2-27 with SSD, 50G, half-sinus, duration 11 ms; MIL-STD-810G
Vibration Endurance IEC 60068-2-64 with SSD, 3 Grms STD, random, 5 to 500 Hz, 1 hour/axis; MIL-STD-810G

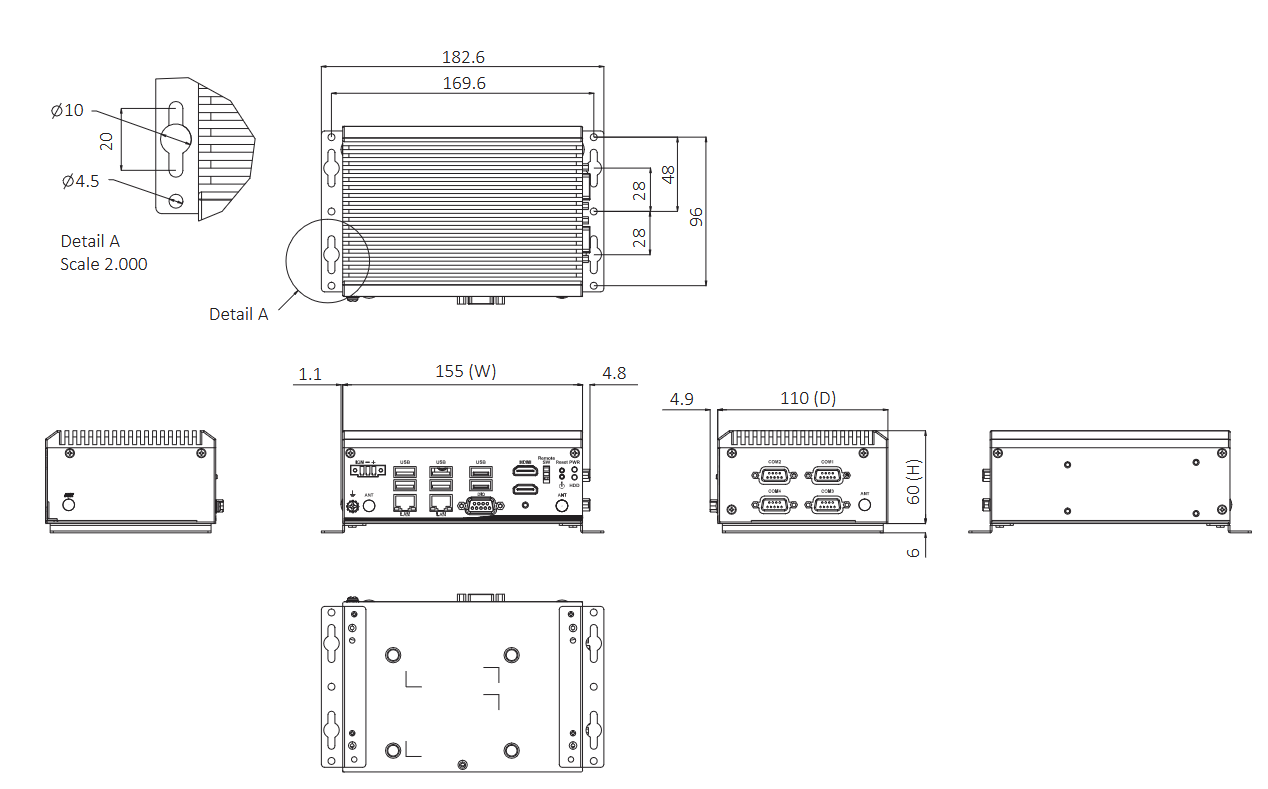

Dimensions 155 x 110 x 60 mm
Weight net 1.1 kg, gross 1.5 kg
Certifications CE, FCC Class A, UKCA
OS Support Windows 10 21H2, Windows 11 IoT, Linux
Storage Options NVMe M.2 SSD 128 GB or more, 2.5" SSD/HDD 100 GB or more

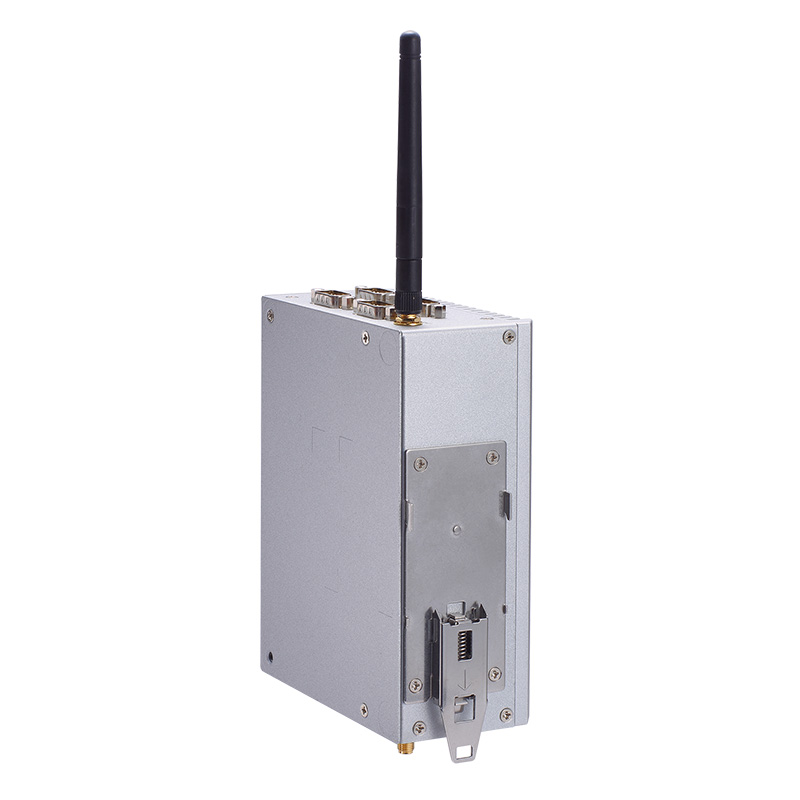

Mounting Options wall mount kit E29R129102, DIN-rail kit E29R129133, VESA kit E29R129134
Power Option 24 V 60 W power adapter, reference 509000005500
Wireless Communication Options Wi-Fi/LTE module
Power Protections OVP, UVP, OCP, SCP, reverse polarity protection
Operating System Linux, Windows 11
Design Fanless
SKU eBOX100B
Brand AXIOMTEK
