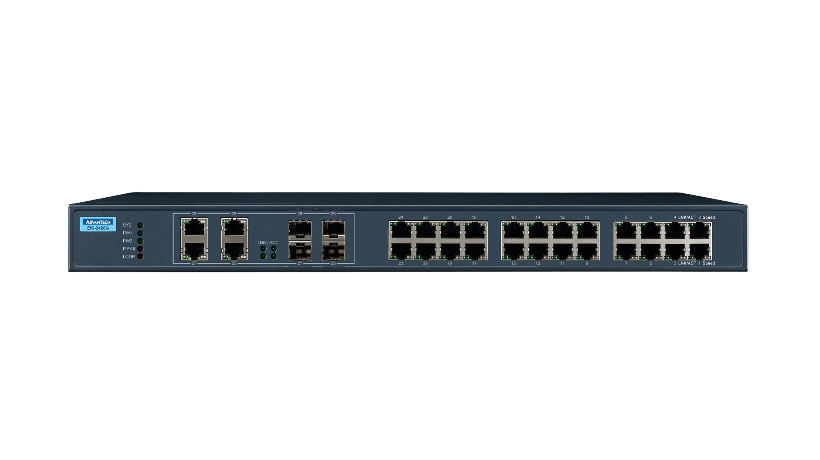

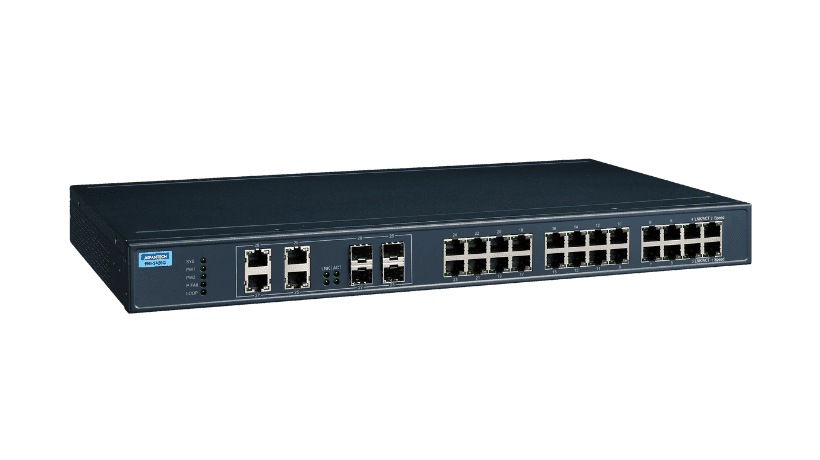

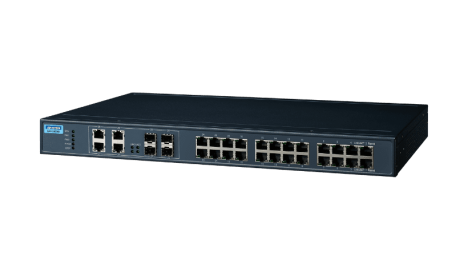

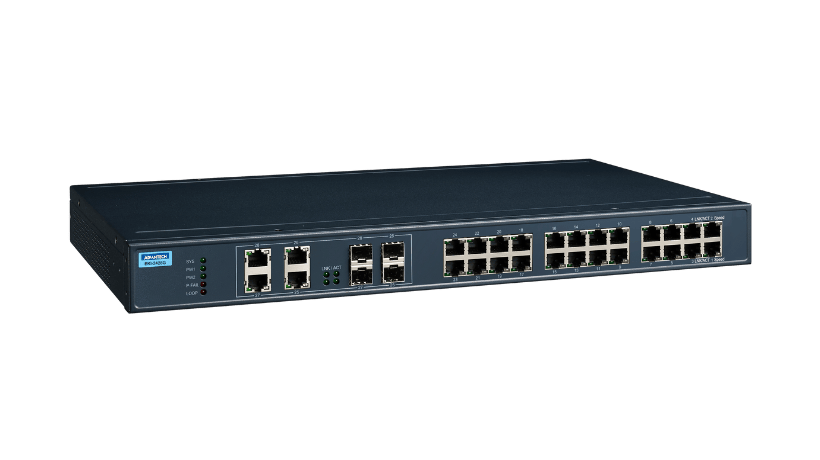

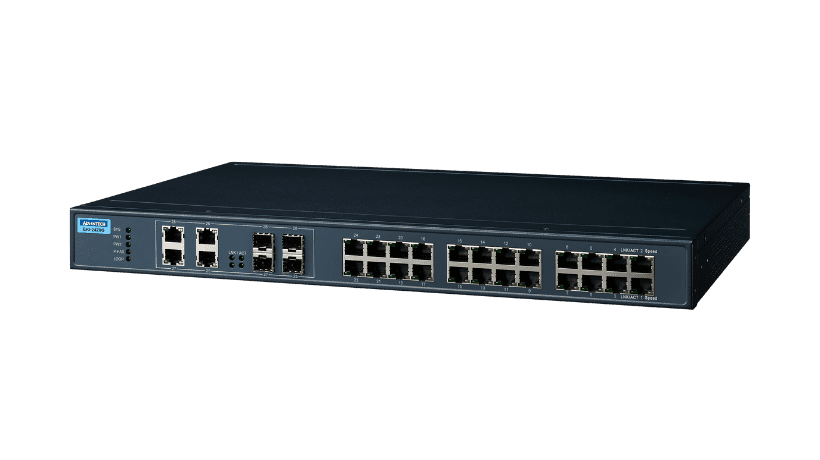

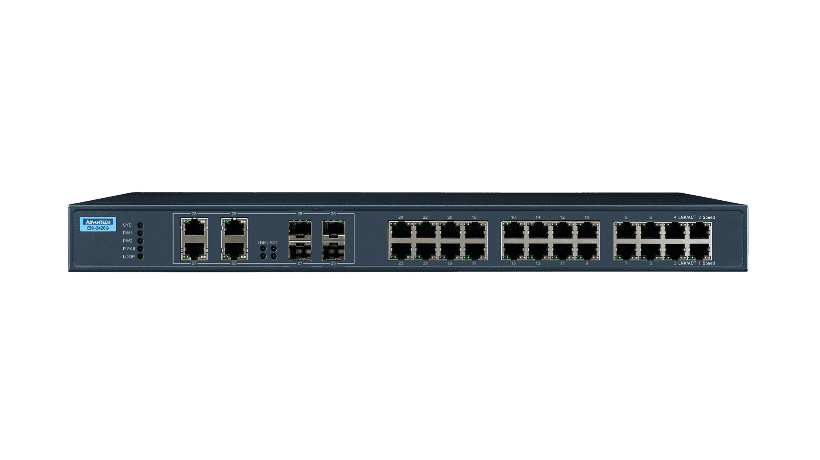

EKI-2428G-4CI-BE Unmanaged switch 24GE+4G combo ports with wide temperature range

The EKI-2428G from Advantech is an industrial unmanaged switch with 24 Gigabit Ethernet ports and 4 Gigabit combo ports. Its chassis is suitable for rack installations. It meets the requirements of industrial environments, deployed on the edge as well as in the core of the network.

Key features:

• 24 x Gigabit ports + 4 x combo copper/SFP ports
• SFP socket for easy and flexible fiber expansion
• Support for 8K MAC addresses
• Wide operating temperature range from -40 ~ 70°C

The EKI-2428G is powered by DC 12 to 48 V, ensuring reliable performance in industrial environments. It meets EMI and EMS standards with CE, FCC, and EN certifications and supports temperatures from -40 to 70°C. With a 56Gbps switching fabric speed, it ensures efficient data management within industrial networks.

Additional specifications include an energy consumption of 20W at 24V, IP30 metal enclosure and compliance with IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.3ab standards.

This switch is equipped with RJ45 and combo SFP connectors, enhancing its connectivity options. It offers protection against power reversal and current overload, supporting demanding industrial applications.
