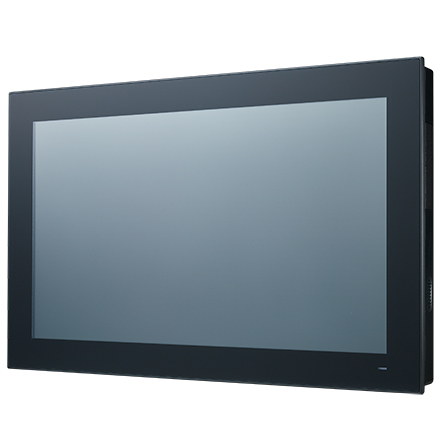

PPC-3211W-P77A Panel PC fanless 21.5" Full HD IP66 Intel i7-7600U x2 LAN GB, GPIO, DP, VGA, COM

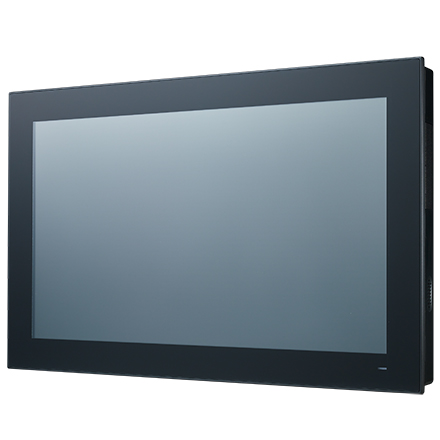

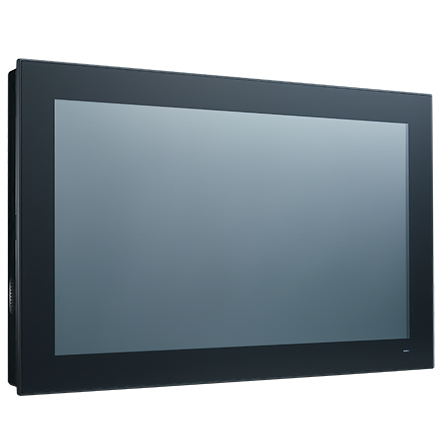

The Panel PC PPC-3211W-P77A offers a 21.5" capacitive touch display in an ultra-slim chassis equipped with an Intel Core I7 processor. Fanless, it is perfect for production lines and use as a thin client.

Key Features:

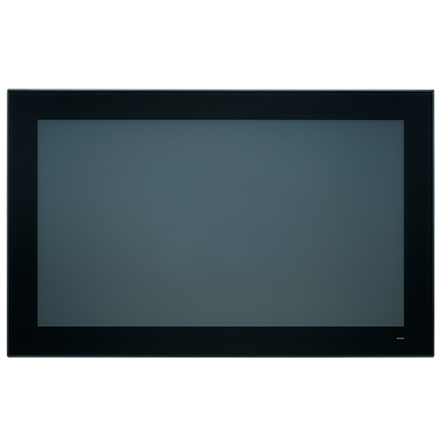

21.5" true-flat Full HD LCD with anti-glare coating
Intel® Core™ i7-7600U processor with fanless design
Supports PCIe x4 or PCI expansion
Dual Gigabit Ethernet with IEEE1588 support

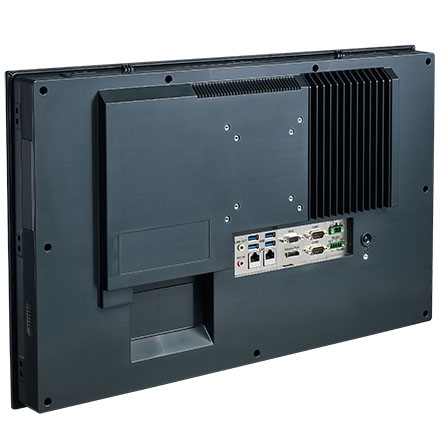

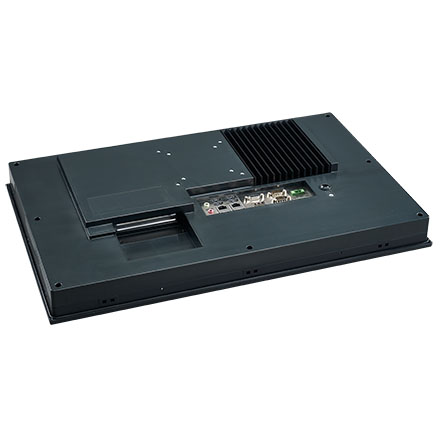

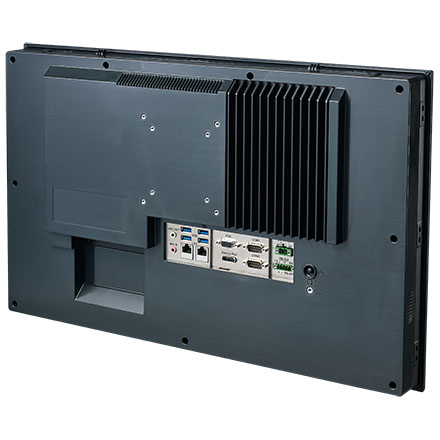

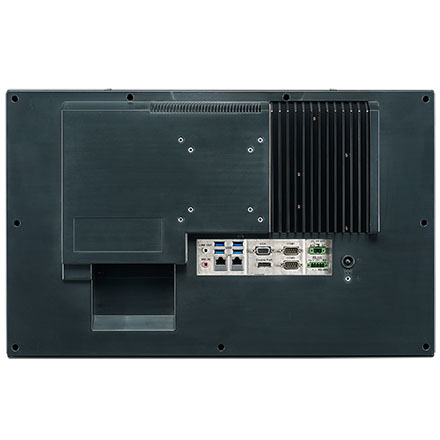

This panel PC offers comprehensive connectivity:

x2 RS-232
x2 RS-422/485
x4 USB 3.0
x2 LAN GB
x1 VGA
x1 DP
x1 GPIO

This fanless panel PC can also be equipped with an I3 or I5 processor (7th gen.)

Technical sheet

Ask for a quotation!

J+1 Chronopost delivery

Secured payment

23+ years experience

Experts team

Reknown brands

Sales department available

Monday to Friday, from 9am to 6pm

04 37 69 72 00

Configured and assembled in France

Characteristic	Value
Processor	7th Gen. Intel® Core™ i7-7600U 2.8 GHz Dual-Core
Memory	1 x DDR4 SO-DIMM Slot
Storage	1 x SATA M.2 SSD slot, 2 x 2.5" SSD/HDD Bay
I/O	2 x RS-232, 1 x RS-422/485, 4 x USB 3.0
Connectivity	Dual GbE, support IEEE1588
Power Input	9~32 VDC
Operating Temperature	0~50 °C
Certifications	CE, FCC Class B, UL, CCC, VCCI
Size	470x660x285mm
Weight	9640g
CPU	Intel i3, Intel i5, Intel i7
Mount options	VESA
IP	Front IP66
Touch	Capacitive multi-touch
SKU	PPC-3211W-P77A
Brand	ADVANTECH
