List of Compatible Processors:
- Intel® Core™ i9-14900, PBP 65W
- Intel® Core™ i9-14900T, PBP 35W
- Intel® Core™ i7-14700, PBP 65W
- Intel® Core™ i7-14700T, PBP 35W
- Intel® Core™ i5-14500, PBP 65W
- Intel® Core™ i5-14500T, PBP 35W
- Intel® Core™ i5-14400, PBP 65W
- Intel® Core™ i5-14400T, PBP 35W
- Intel® Core™ i3-14100, PBP 65W
- Intel® Core™ i3-14100T, PBP 35W
- Intel® Core™ i9-13900, PBP 65W
- Intel® Core™ i9-13900E, PBP 65W
- Intel® Core™ i9-13900TE, PBP 35W
- Intel® Core™ i7-13700, PBP 65W
- Intel® Core™ i7-13700E, PBP 65W
- Intel® Core™ i7-13700TE, PBP 35W
- Intel® Core™ i5-13500, PBP 65W
- Intel® Core™ i5-13500TE, PBP 35W
- Intel® Core™ i5-13400, PBP 65W
- Intel® Core™ i5-13400E, PBP 65W
- Intel® Core™ i3-13100, PBP 60W
- Intel® Core™ i3-13100E, PBP 60W
- Intel® Core™ i3-13100TE, PBP 35W
Compatible GPUs* :
- NVIDIA® RTX™ 50 series
- Quadro series
- RTX™ 6000 Ada Generation
*: Optional GPU
| Characteristic |
Value |
| Processor |
Intel® Core™ i9/i7/i5/i3 of the 14th, 13th, and 12th generation, PBP up to 65 W |
| Chipset |
Intel® PCH H610E |
| Integrated Graphics |
Intel® UHD Graphics 770 |
| AI Acceleration |
compatible with NVIDIA® RTX™ 50 Series and Quadro Series graphics cards |
| Maximum Supported GPU |
NVIDIA® RTX™ 6000 Ada Generation option, graphics card not included |
| CUDA® Cores |
support for NVIDIA® GPUs with thousands of CUDA® cores for deep learning, rendering, streaming, and AI applications |
| Expansion Slot |
PCIe 4.0 x16 |
| Supported GPU Power |
PCIe x16 graphics card up to 650 W |
| GPU Space |
3-slot space available |
| Recommended GPU Dimensions |
up to 340 mm x 141 mm x 70 mm |
| Memory |
2 x DDR5 SO-DIMM, non-ECC, unbuffered, up to 64 GB, 32 GB per module |
| SATA Storage |
2 x 2.5" SATA 3.0 HDD/SSD slots |
| M.2 Storage |
1 x M.2 Key M 2280 SSD, PCIe 4.0 x4 or SATA 3.0 |
| Display |
2 x DisplayPort 1.4 |
| Network |
1 x RJ45 1GbE Intel® I219LM port |
| High-speed Network |
1 x RJ45 2.5GbE Intel® I226LM port |
| Serial Ports |
1 x COM DB9 RS-232 |
| Configurable Serial Port |
1 x COM DB9 RS-232/422/485 |
| Rear USB |
4 x USB 3.2 Gen 1 and 2 x USB 2.0 |
| GPIO |
1 x internal 8-pin connector for 8-bit GPIO |
| Audio |
1 x Line out and 1 x Mic in |
| Power Supply |
850 W power block |
| Input Power |
AC 100 V to 240 V |
| Output Power |
DC +12 V |
| Operating Temperature |
0 °C to 45 °C |
| Storage Temperature |
-20 °C to 80 °C |
| Humidity |
10% to 90%, non-condensing |
| Shock Protection |
20 G, 11 ms, according to IEC 60068-2-27 |
| Random Vibration Protection |
2 Grms from 5 Hz to 500 Hz, IEC 60068-2-64 with SSD |
| Sinusoidal Vibration Protection |
2 Grms from 5 Hz to 500 Hz, IEC 60068-2-6 with SSD |
| Certifications |
CE, FCC Class A, LVD |
| System Security |
TPM 2.0 |
| Operating Systems |
Windows 10 64-bit and Linux |

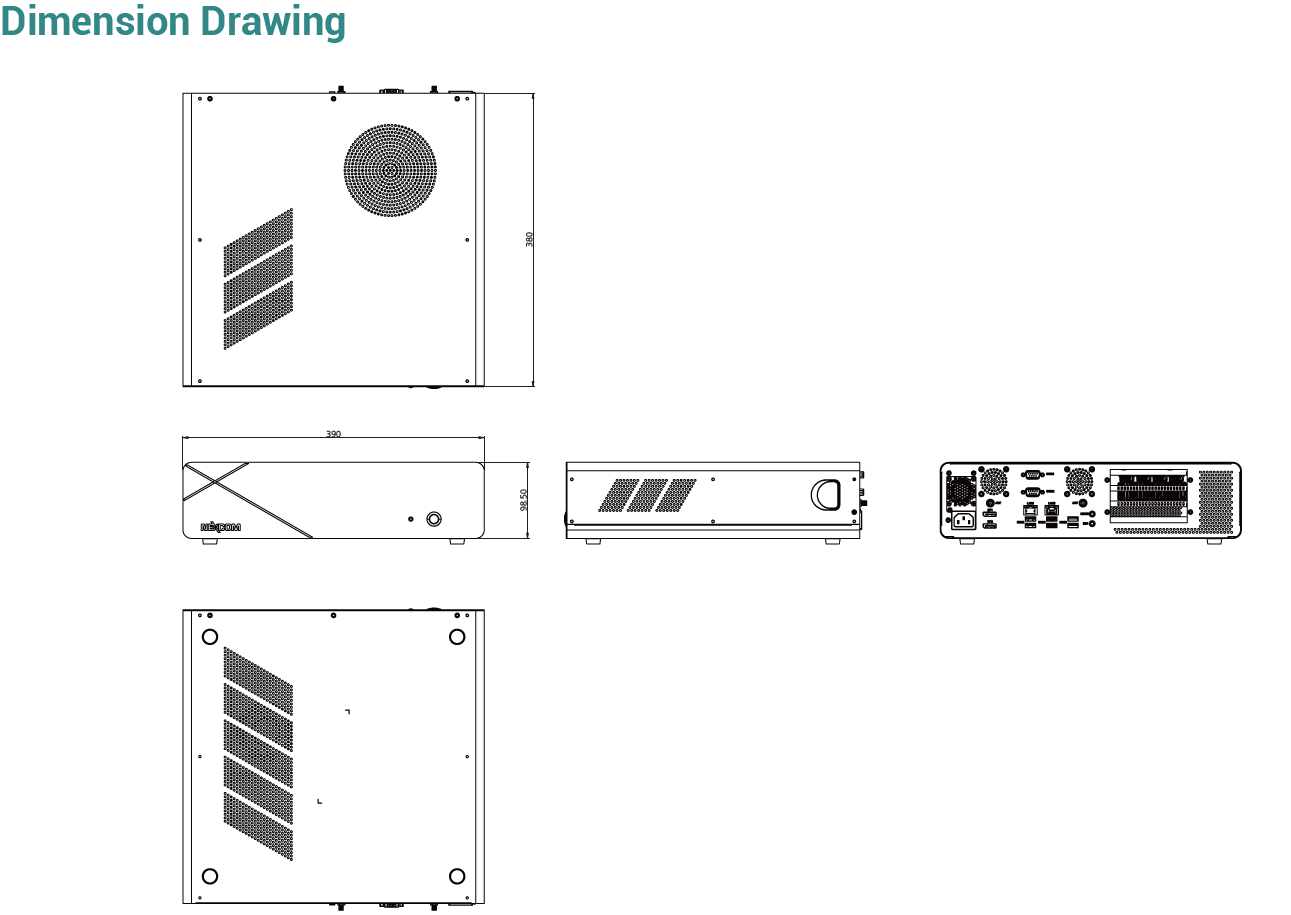

| Dimensions |
390 mm x 380 mm x 98.5 mm |
| Weight |
6.7 kg |
| Graphic card |
NVIDIA RTX A6000 |
| AI Architecture |
NVIDIA RTX GPU |
| SKU |
AIEdge-Xr310 |
| Brand |
NEXCOM
|
Configured and assembled in France
