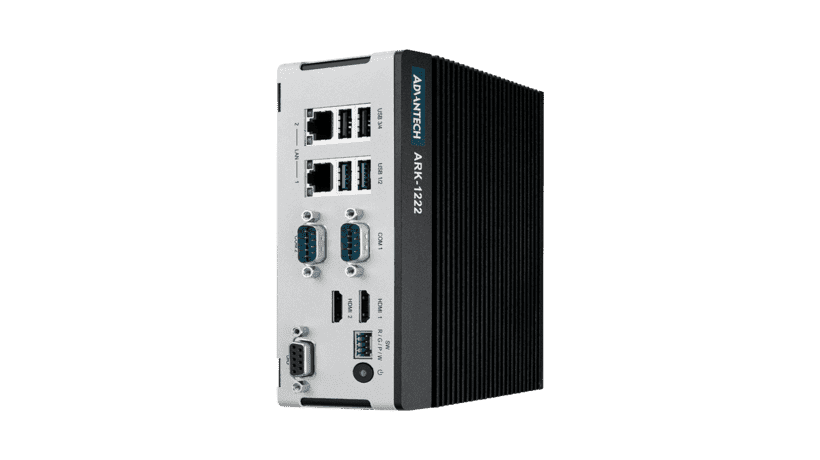

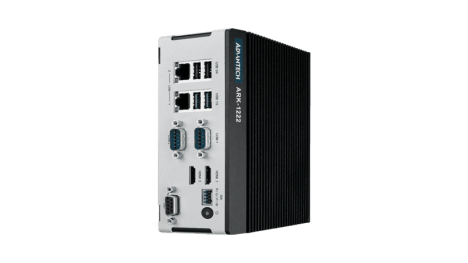

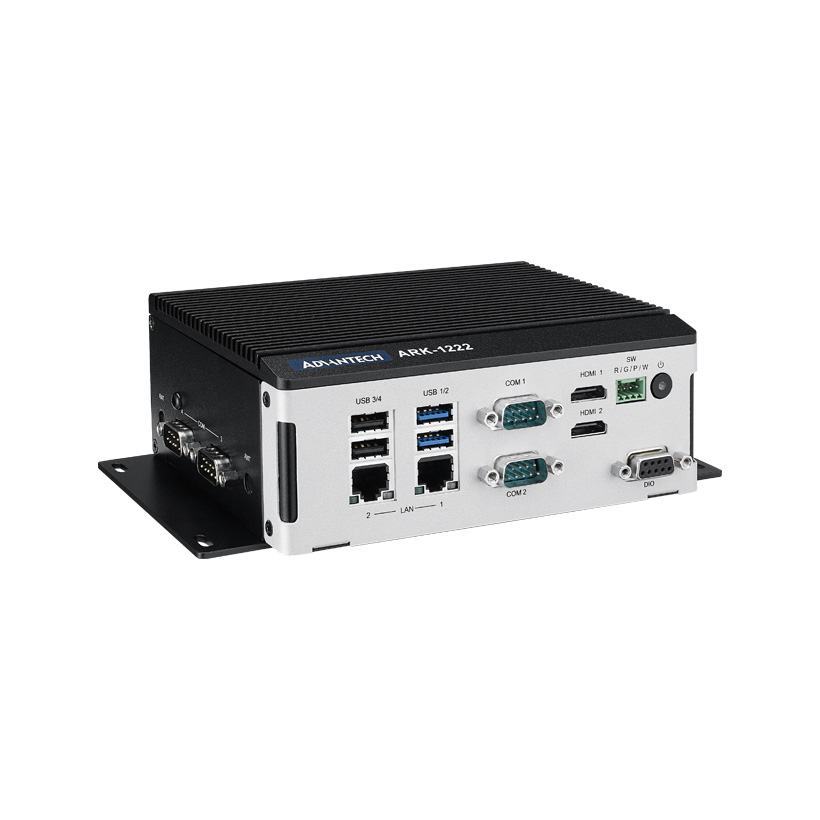

ARK-1222-S5A1U Fanless PC with Intel Processor x7433RE, x2 HDMI 4K, x2 LAN, x4 USB, GPIO and iDoor extension

Fanless PC with Intel Processor x7433RE, x2 HDMI 4K, x2 LAN, x4 USB, GPIO and iDoor extension
Fanless PC with Intel Processor x7433RE, x2 HDMI 4K, x2 LAN, x4 USB, GPIO and iDoor extension
Fanless PC with Intel Processor x7433RE, x2 HDMI 4K, x2 LAN, x4 USB, GPIO and iDoor extension
Fanless PC with Intel Processor x7433RE, x2 HDMI 4K, x2 LAN, x4 USB, GPIO and iDoor extension
Fanless PC with Intel Processor x7433RE, x2 HDMI 4K, x2 LAN, x4 USB, GPIO and iDoor extension
Fanless PC with Intel Processor x7433RE, x2 HDMI 4K, x2 LAN, x4 USB, GPIO and iDoor extension
Fanless PC with Intel Processor x7433RE, x2 HDMI 4K, x2 LAN, x4 USB, GPIO and iDoor extension
Fanless PC with Intel Processor x7433RE, x2 HDMI 4K, x2 LAN, x4 USB, GPIO and iDoor extension
Fanless PC with Intel Processor x7433RE, x2 HDMI 4K, x2 LAN, x4 USB, GPIO and iDoor extension
Fanless PC with Intel Processor x7433RE, x2 HDMI 4K, x2 LAN, x4 USB, GPIO and iDoor extension
logo ADVANTECH Industrial computer manufacturer

This compact fanless PC with Intel x7433RE1.5G processor by Advantech is designed for industrial applications requiring high reliability and continuous performance in harsh environments.

Features:

  • Intel N97 and x7433RE Quad Core SoC
  • DIN-Rail system with essential I/O ports on the front profile
  • Two independent 4K HDMI outputs
  • 2 x Intel i226-IT LAN and 4 x RS-232/422/485 COM ports
  • 2 x USB 3.2 and 2 x USB 2.0
  • 8-bit programmable GPIO
  • Optional iDoor extension supported

Flexible installation via Rail-DIN, supporting both high-resolution video outputs and multiple communication interfaces, including LAN and COM, ensuring adaptability to various professional fields.

Technical sheet

Ask for a quotation!

J+1 Chronopost delivery

Secured payment

23+ years experience

Experts team

Reknown brands

Sales department available

Monday to Friday, from 9am to 6pm

04 37 69 72 00
Characteristic Value
Environment Operating Vibration:With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Environment Operating Shock:With SSD/mSATA: 30G
Processor
CPU Intel Atom® x7433RE
Number of Cores 4
Frequency 1.5 GHz
BIOS AMI EFI 256 Mbit
Memory
Technology DDR5 4800 MHz
Max Capacity 16 GB built-in
Slot 1 x 262-pin SO-DIMM
Support ECC No
Graphics
HDMI 2
Dual Display HDMI1 + HDMI2
Ethernet
Controller 2
LAN1 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN
LAN2 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN
Audio
Main System Realtek ALC888S, High Definition Audio, Line-out, Mic-in
I/O Interface

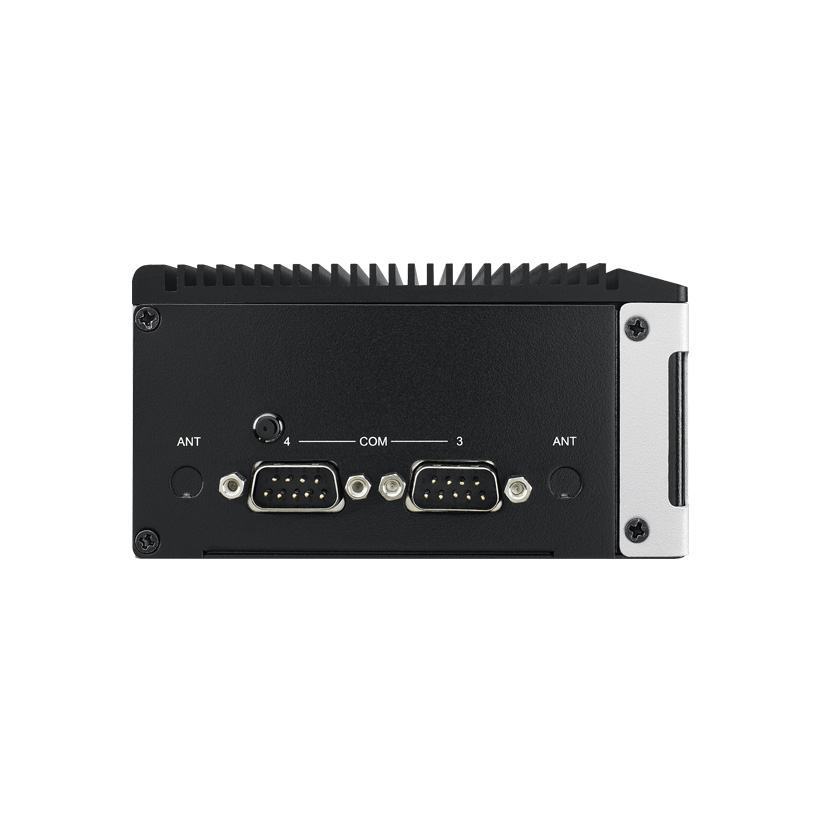

Serial Port 4 x RS-232/422/485 port with auto flow control
Serial 4
USB Interface 2 x USB 3.2, 2 x USB 2.0
GPIO 8-bit
Expansion
Mini PCI Express 1
CAN Bus 2 ports (by optional cable)
Mini PCIe #1 1 x Full-size
M.2 1 x M.2 2230 E key and 1 x M.2 2280 B key with nano SIM holder
Others
TPM TPM 2.0
Watchdog Timer 255 levels timer interval, setup by software
Storage
mSATA 1 x Full-size (support either mSATA or miniPCIe)
NVMe 1 x PCIex2 (Share with M.2 2280 B key)
Software Support
Microsoft Windows Windows 10/11 IoT Enterprise LTSC
Linux Ubuntu 24.04
Power
Power Type AT/ATX
Input Voltage 12 ~ 28 VDC
Power Adapter AC to DC, 90W (Optional)
Mechanics
Construction Aluminum housing
Mounting DIN-Rail/Wall/VESA Mounting KIT (Optional)

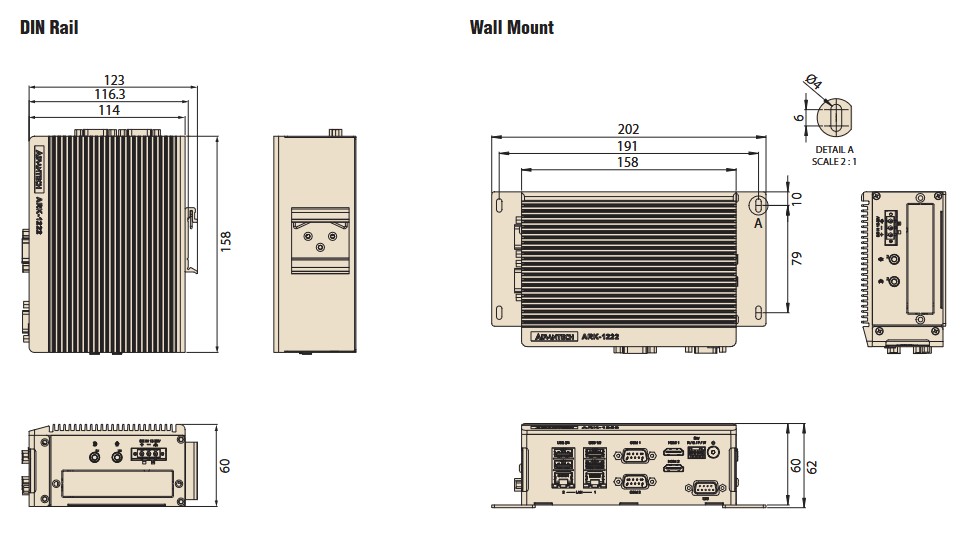

Dimensions 60 x 158 x 114 mm (2.34” x 6.22” x 4.49”)
Weight 0.9kg
Environment
Relative Humidity 95% @ 40° C (non-condensing)
Operating Temperature -40 ~ 70 °C (-40 ~ 158 °F) with 0.7 m/s air flow
Storage Temperature - 40 ~ 85° C (-40 ~185° F)
Certification
EMC CE/FCC Class B, CCC, BSMI, UKCA
Safety Certifications CB, UL, CCC, BSMI, UKCA
Size 185x245x130mm
Weight 1490g
Operating System Linux, Windows 10 Pro, Windows 11
Mount options DIN Rail, Wall mount
Design Fanless
Ethernet ports count 2 ports
SKU ARK-1222-S5A1U
Brand ADVANTECH
