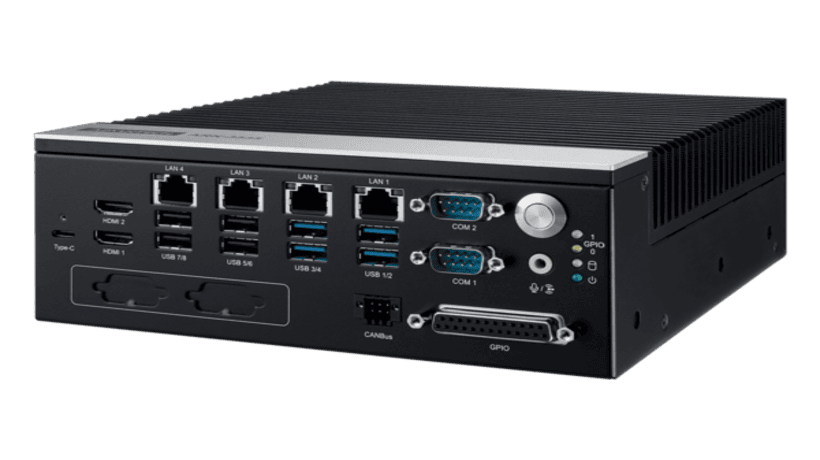

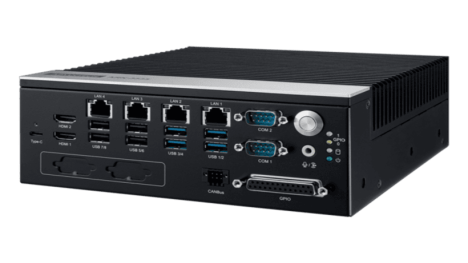

ARK-3535-T5A1 Fanless embedded box PC AMD Ryzen 8640U with 3x 2.5 GbE and HDMI

The ARK-3535-T5A1 is an Advantech fanless embedded box PC powered by the AMD Ryzen Embedded 8000 Series Processor, designed for high-performance applications in industrial environments.

• Support AMD Ryzen 8640U/8845HS Processor
• DDR5-5600 SO-DIMM memory support up to 96G
• Triple displays with 2 x HDMI2.1 + 1 x Type C (DP ALT mode)
• TPM on board for system security
• Up to 1 x GbE, 3 x 2.5 GbE, 6 x COM, 2 x USB3.2 Gen2+ 2 x USB3.2 Gen1+ 4 x USB2.0, 16-bit GPIO, 2 x CANBus
• -20 ~ 50 °C extended operating temperature
• 9V ~ 36V wide range power input

The system is equipped with DDR5 5600 MHz memory, accommodating up to 96GB across 2 x 262 pin DDR5 SO-DIMM sockets. The connectivity options include triple displays supported by 2 HDMI ports and 1 USB Type C. Comprehensive I/O interfaces boast 6 serial ports, multiple USB 3.2 and 2.0 ports, and dual CAN ports.

It also supports a wide operating temperature range and varied power input for flexible deployments.
