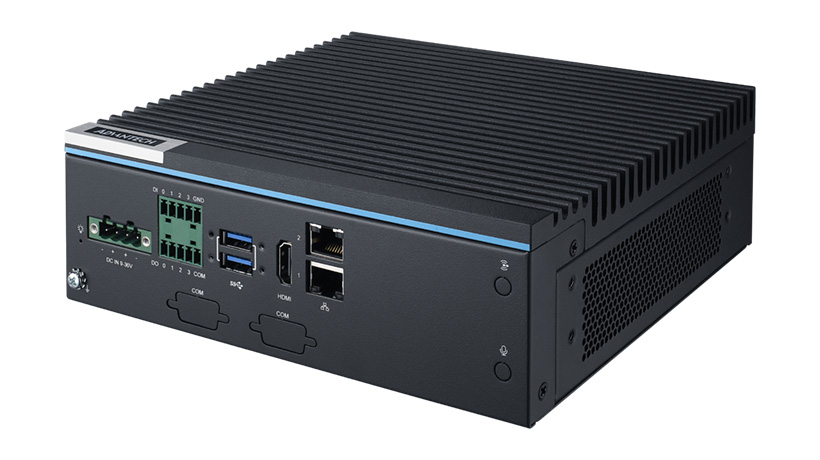

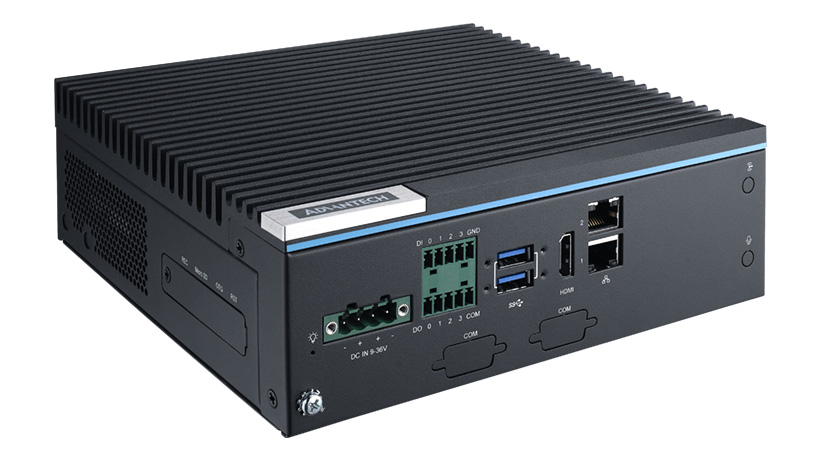

MIC-713-OX4B3 Fanless AI PC with NVIDIA Jetson Orin NX 157 TOPS

The MIC-713-OX4B3 is a compact and fanless platform designed to deploy artificial intelligence applications directly in the field: industrial vision, automated quality control, video analysis, robotics, autonomous equipment, and predictive maintenance.

Its NVIDIA Jetson Orin NX 16 GB module delivers up to 157 TOPS to process streams locally and limit exchanges with the cloud.

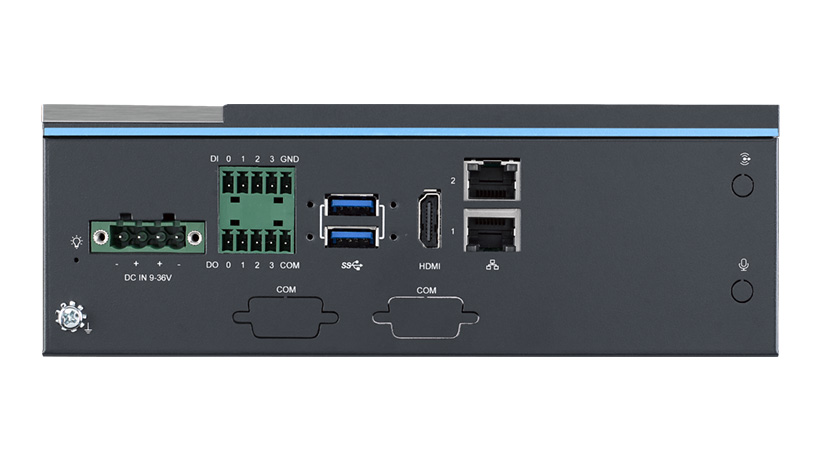

Its 2 Gigabit Ethernet ports, 6 USB 3.2 Gen 2 ports, CAN FD interface, and optional RS-232/422/485 serial ports facilitate integration with cameras, sensors, controllers, and industrial networks. Wi-Fi 6, 5G, dual SIM, and GMSL extensions also allow for adaptation to mobile, isolated, or multisite installations. 24/7 remote monitoring and OTA deployments via Allxon simplify the operation of an Edge AI equipment park.

Key features:

• Compact fanless design
• Integrates NVIDIA Jetson Orin NX up to 157 TOPS
• Supports 2 x GbE, 6 x USB 3.2 Gen 2
• Supports 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
• Supports Allxon for 24/7 monitoring and OTA deployment
