| Processor |
Intel® N-series Processor N150 Quad-core up to 3.6 GHz Twin Lake |
| System memory |
8GB onboard LPDDR5 SDRAM |
| Optional memory |
16GB onboard LPDDR5 SDRAM per project |
| Chipset |
SoC integration |
| BIOS |
AMI |
| AI accelerator |
optional M.2 AI accelerator card |
| AI performances |
up to 214 TOPS with Axelera Metis module |
| AI Applications |
object detection, image classification, video analysis, computer vision inference at Edge |
| Intel Certification |
Intel® ESQ for Metro AI Suite Device |
| AI extension interface |
1 x M.2 Key M 2280 PCIe Gen 3 x4 for AI accelerator card or NVMe SSD |
| Extension constraint |
AI accelerator card and NVMe SSD cannot be used simultaneously |
| Ethernet Network |
2 x LAN 2.5GbE Intel® I226-V |
| Wireless connectivity |
Wi-Fi 6E via M.2 Key E 2230 |
| Cellular connectivity |
LTE via optional Mini PCIe card |
| GPS |
compatible via optional Mini PCIe card |
| SIM slot |
1 x Nano SIM |
| Display |
1 x HDMI 1.4 |
| USB |
2 x USB 3.2 Gen 2 and 2 x USB 2.0 |
| Optional lockable kit |
lockable kit for 4 USB ports and 1 HDMI |
| Optional I/O |
default slot with 3 x DB9 half-cut bracket |
| Optional COM Ports |
RS232 / RS422 / RS485 up to 2 DB9 ports via optional cable |
| Optional DIO |
up to 16 TTL DIO channels via optional cables |
| Optional CAN bus |
dual CAN bus 2.0A/B via mPCIe MIO108-2CAN-mPC module |
| Optional Storage |
1 x 2.5” SATA SSD/HDD, 1 x M.2 Key M 2280 NVMe SSD or 1 x mSATA SSD |
| mPCIe / mSATA constraint |
mPCIe module and mSATA cannot be used simultaneously |
| TPM |
TPM 2.0 |
| Watchdog Timer |
255 levels, 1 to 255 seconds |
| System indicators |
1 green LED for system power and 1 orange LED for SSD |
| Power management |
smart USB power on/off control |
| Power Supply |
9-36 VDC input, typically 12/24 VDC |
| Smart ignition |
built-in smart ignition control |
| Inrush current |
0.37 A / 1.93 A |
| Electrical protections |
OVP, UVP, OCP, SCP, and reverse polarity protection |
| Operating temperature |
-40 °C to +70 °C with wide temperature AI accelerator and SSD |
| Temperature with Axelera Metis |
-20 °C to +70 °C |
| Relative Humidity |
10% to 95%, non-condensing |
| Vibrations |
IEC 60068-2-64 with SSD, 3 Grms random, 5 to 500 Hz |
| Military vibrations |
MIL-STD-810H Method 514.8 Category 20 Figure 514.8C-2 |
| Shocks |
IEC 60068-2-27 with SSD, 50G half-sine, 11 ms |
| Military shocks |
MIL-STD-810H Method 516.8 Procedure I with SSD, 40G trapezoidal, 11 ms |

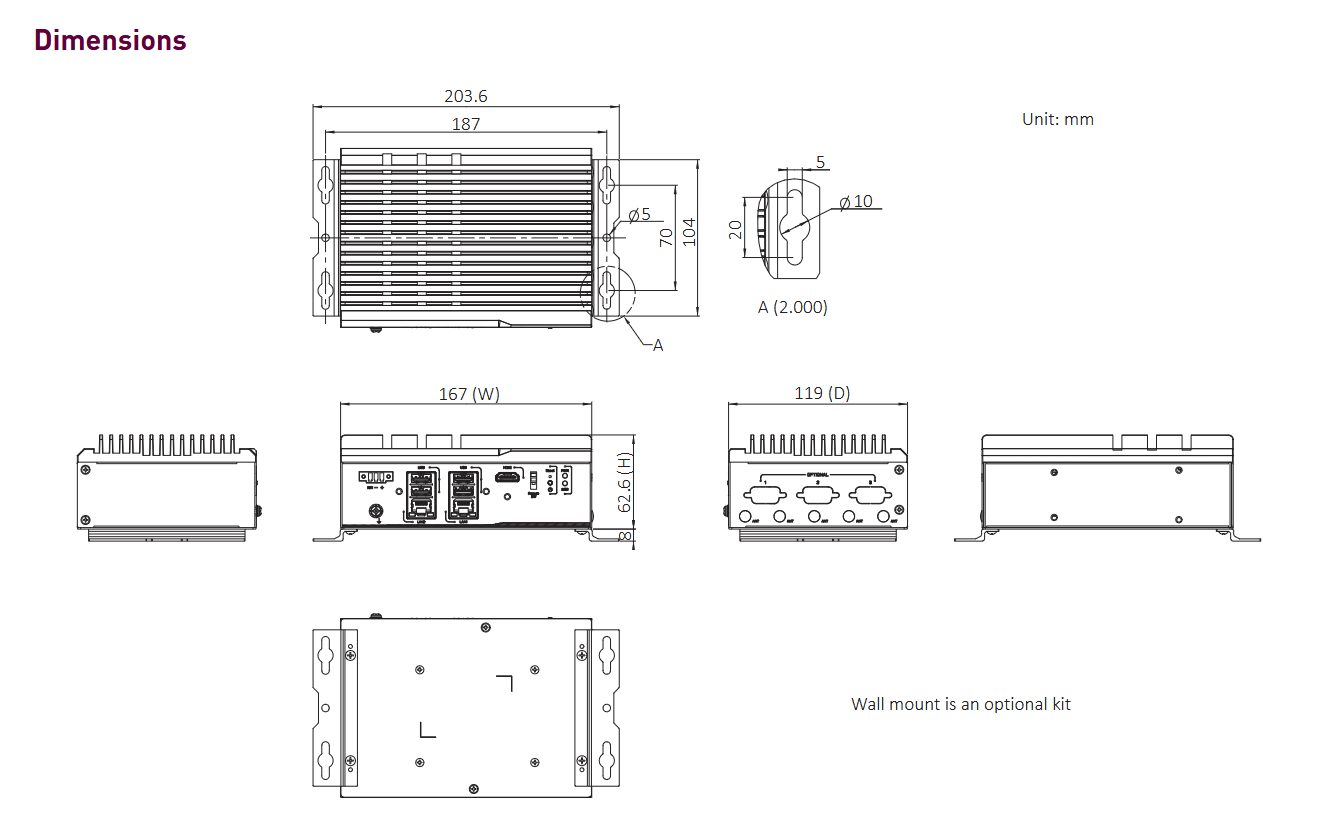

| Dimensions |
167 x 119 x 62.6 mm |
| Net / gross weight |
1.1 kg / 1.86 kg |
| Certifications |
CE, FCC Class A, UKCA |
| Supported operating systems |
Linux Ubuntu 24.04 LTS and Windows 11 IoT |
| Optional mounting |
wall mount kit or DIN rail kit |
| Design |
Fanless |
| SKU |
AIM101 |
| Brand |
AXIOMTEK
|
Configured and assembled in France
