NIFE-105W Fanless compact PC Intel Atom Dual Core x1 HDMI, x2 LAN GB, x4 USB, GPIO and x2 COM DB9

Fanless compact PC Intel Atom Dual Core x1 HDMI, x2 LAN GB, x4 USB, GPIO and x2 COM DB9
Fanless compact PC Intel Atom Dual Core x1 HDMI, x2 LAN GB, x4 USB, GPIO and x2 COM DB9
Fanless compact PC Intel Atom Dual Core x1 HDMI, x2 LAN GB, x4 USB, GPIO and x2 COM DB9
Fanless compact PC Intel Atom Dual Core x1 HDMI, x2 LAN GB, x4 USB, GPIO and x2 COM DB9
Fanless compact PC Intel Atom Dual Core x1 HDMI, x2 LAN GB, x4 USB, GPIO and x2 COM DB9
logo NEXCOM Industrial computer

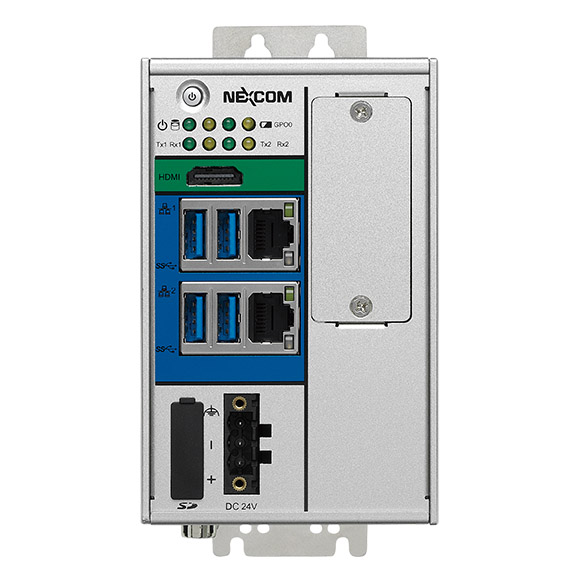

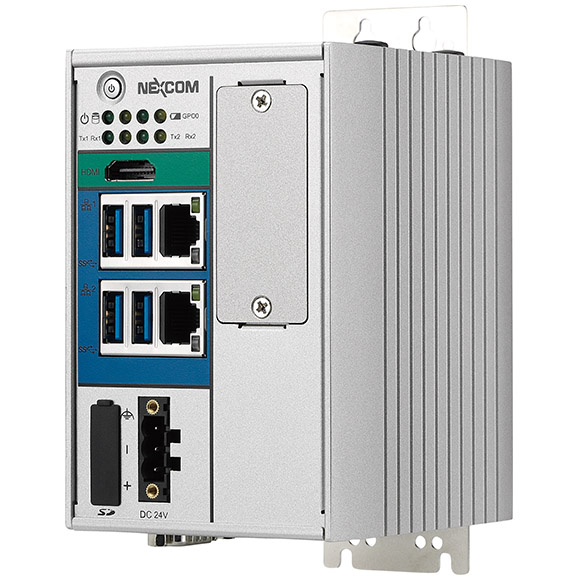

The NIFE 105W is a fanless PC designed for industrial installations requiring energy efficiency and ease of deployment.

Regarding communication, it combines 2 Gb Ethernet ports, two RS232/422/485 serial ports with automatic flow control, as well as mini-PCIe slots for:

  • Wi-Fi modules
  • 3.5G
  • LTE
Technical sheet

Ask for a quotation!

J+1 Chronopost delivery

Secured payment

23+ years experience

Experts team

Reknown brands

Sales department available

Monday to Friday, from 9am to 6pm

04 37 69 72 00
Configured and assembled in France
Characteristic Value
Processor Intel Atom® x5-E3930 Dual Core 1.8 GHz
Memory 4 GB DDR3L embedded
Display 1 HDMI output
Network 2 Intel® I210-IT GbE LAN ports
Network functions Wake-on-LAN, teaming and PXE
Front USB ports 4 USB 3.0 ports, 900 mA
Removable Storage 1 external SD slot, data storage only
Front extension 1 FBI extension slot
Indicators Power LED, HDD access, low battery, programmable GPO and Tx/Rx
Power control 1 ATX power on/off switch
Top interface 1 remote switch
SIM card 1 SIM slot
RTC battery 1 RTC battery socket

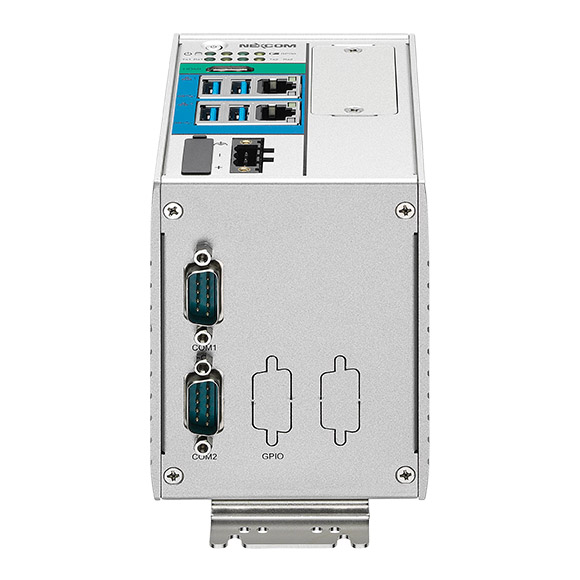

Serial ports 2 DB9 ports compatible with RS232/422/485 with Auto Flow Control
Optional I/Os 1 optional DB9 with 4 GPI and 4 GPO
Internal USB interface 1 USB 2.0 port, 500 mA max
Internal COM interface COM3/4 on pin header, RS232 with TX/RX/RTS/CTS signals
General I/Os 4 GPI and 4 GPO, TTL 5 V
Embedded storage 16 GB eMMC
Optional storage mSATA module
Mini-PCIe Extension 1 1 full-size mini-PCIe USB + PCIe socket for Wi-Fi, LTE or mSATA module
Mini-PCIe Extension 2 1 full-size mini-PCIe USB + PCIe socket for optional modules
Power supply typical +24 VDC ±20%
Optional power adapter 24 V, 60 W

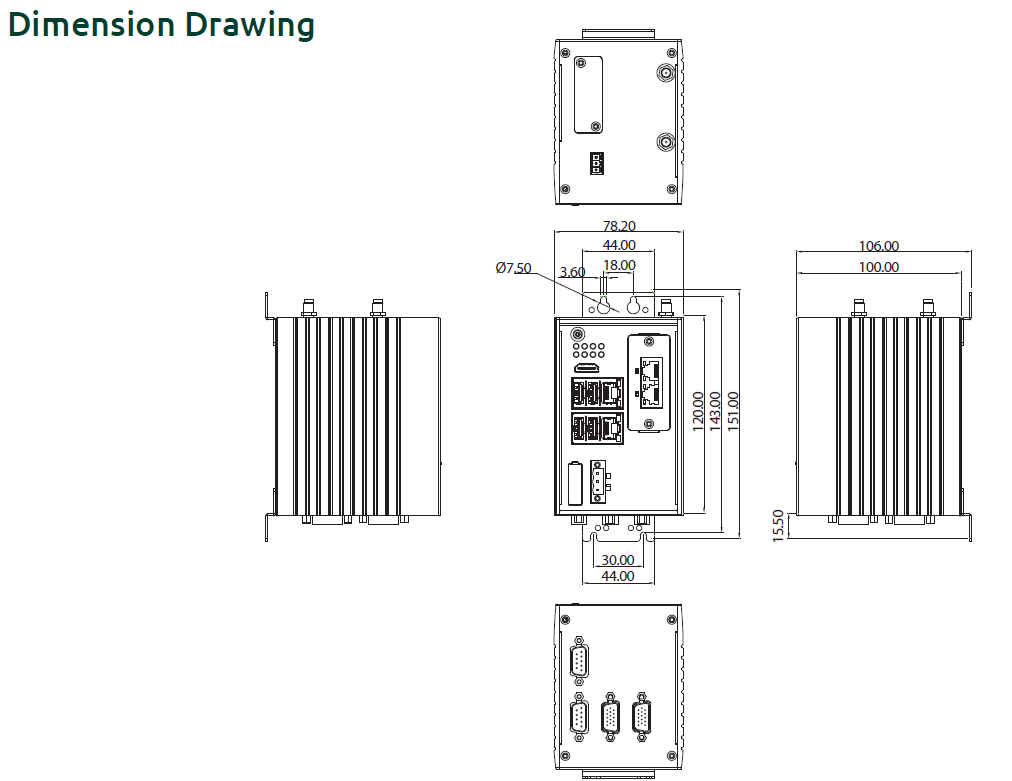

Dimensions 78.2 mm x 100 mm x 120 mm
Chassis aluminum and metal with front access design
Operating temperature -20°C to +70°C
Storage temperature -20°C to +80°C
Relative humidity 10% to 95%, non-condensing
Shock resistance 50G, half-sine, 11 ms, IEC60068-27 with mSATA/eMMC
Random vibration resistance 2 Grms at 5~500 Hz, IEC60068-2-64
Sine vibration resistance 2 Grms at 5~500 Hz, IEC60068-2-6
Certifications CE, EN61000-6-2, EN61000-6-4, FCC Class A
Supported operating system Microsoft Windows 10 Enterprise 64-bit
Operating System Windows, Windows 10 Pro
CPU Pentium / Celeron / ATOM
Mount options Table, Wall mount
Design Fanless
Extreme temp Yes
SKU NIFE-105W
Brand NEXCOM
