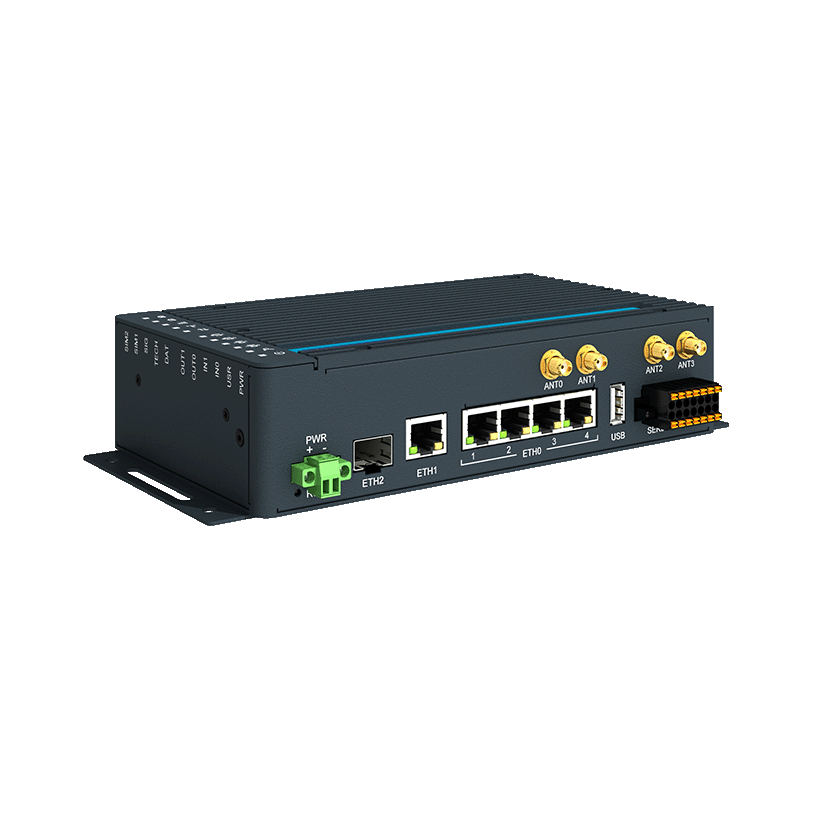

| Manufacturer description |
ultra-high-speed 5G router and high-performance Edge Computing gateway |
| Usage area |
model intended for the global market, subject to local regulations and approvals |
| Operator-specific certification variant |
FirstNet |
| Processor |
ARM Cortex-A72 64-bit, quad-core at 1,200 MHz |
| RAM |
1,024 MB |
| eMMC storage |
4,096 MB |
| Available space for Router Apps |
838 MB |
| Available space for user data |
512 MB |
| Flash memory |
4 MB |
| Watchdog |
hardware watchdog |
| Real-time clock |
RTC backed by battery |
| Hardware security |
TPM 2.0 module and anti-tamper button |
| Operating system |
ICR-OS based on Linux |
| Software customization |
Router Apps and Advantech SDK |
| Development environments |
Open Linux, Python, Bash, C, C++, Node-RED, and Docker |
| Cellular connectivity |
5G NR Sub-6 GHz compliant with 3GPP Release 16 |
| 5G modes |
NSA and SA |
| Connection continuity |
automatic fallback to LTE-A Pro and 3G networks |
| Maximum 5G NSA speed |
3.4 Gbps downlink and 550 Mbps uplink |
| Maximum 5G SA speed |
2.4 Gbps downlink and 900 Mbps uplink |
| 5G NSA bands |
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, and n79 |
| 5G SA bands |
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, and n79 |
| Maximum LTE speed |
1.6 Gbps downlink and 200 Mbps uplink |
| LTE-FDD bands |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, and B71 |
| LTE-TDD bands |
B34, B38, B39, B40, B41, B42, B43, and B48 |
| LTE-LAA band |
B46 |
| Maximum HSPA+/UMTS speed |
42 Mbps downlink and 5.76 Mbps uplink |
| HSPA+/UMTS bands |
B1, B2, B3, B4, B5, B6, B8, and B19 |
| SIM slots |
two Mini-SIM 2FF readers |
| SIM chip |
MFF2 available as project customization |
| Cellular antennas |
four SMA connectors |
| Ethernet interfaces |
five RJ45 10/100/1,000 Mbps ports, including one independent and four switched ports |
| Ethernet isolation |
1.5 kV |
| PoE power supply |
four PoE/PoE+ PSE ports |
| PoE standards |
IEEE 802.3af-2003 and IEEE 802.3at-2009 |
| Fiber interface |
one independent SFP cage accepting modules up to 10 Gbps |
| RS-232 interface |
one link with Tx, Rx, GND, RTS, and CTS |
| RS-485 interface |
one link with A(-), B(+), and GND |
| CAN interface |
one CAN bus with CAN_H and CAN_L |
| Serial and I/O connector |
14-pin terminal block |
| Digital inputs |
two inputs consuming 3 mA |
| Digital outputs |
two Open Drain outputs, 48 V and 500 mA |
| USB interface |
one USB 2.0 Host port |
| Removable storage |
one MicroSD card reader |
| GNSS |
GPS, GLONASS, BeiDou, Galileo, QZSS, and SBAS |
| GNSS protocol |
NMEA |
| GNSS antenna |
passive antenna, L1 band shared on ANT3 and L5 band on ANT1 |
| GNSS cold acquisition time |
27.93 seconds |
| GNSS hot acquisition time |
11.55 seconds |
| GNSS reacquisition time |
1.09 seconds |
| Wi-Fi |
not integrated on the ICR-4461S-1ND variant |
| Bluetooth |
not integrated on the ICR-4461S-1ND variant |
| Network protocols |
DHCP, NAT/PAT, SSH, VRRP, PPPoE, SNMP, SMTP, dynamic DNS, DNS proxy, VLAN, QoS, NTP, IPv6 Dual Stack, and Wake-on-LAN |
| Routing protocols |
RIP, BGP, OSPF, IS-IS, and NHRP via Router Apps |
| Routing functions |
backup routes, port forwarding, Host Port Routing, Ethernet bridging, and load balancing |
| Industrial and IoT protocols |
Modbus RTU/TCP gateway, IEC 60870-5-101 to IEC 60870-5-104 gateway, DF1, DNP3, MQTT, and LwM2M via Router Apps |
| Communication security |
HTTPS, SSH, SFTP, DMZ, and firewall |
| Filtering |
IP addresses, MAC addresses, and incoming or outgoing ports |
| VPN tunnels |
WireGuard, OpenVPN, IPsec with IKEv1 and IKEv2, GRE, L2TP, PPTP, and DMVPN |
| Authentication |
RADIUS, TACACS+, two-factor authentication, and SCEP |
| Encryption |
DES, 3DES, AES, RSA up to 4,096 bits, Ed25519, MD5, and SHA |
| Firmware update |
automatic from server, locally via LAN or remotely via WAN |
| Diagnostics |
data usage, detailed long-term statistics, configuration report, routing table, and remote diagnostics via SSH |
| Logs |
system log, reboot log, and kernel log |
| Event engine |
scripts triggered by digital inputs, network, data usage, delay, power, or temperature |
| Notifications |
e-mail and SNMP trap |
| Configuration |
Web interface, SSH, four switchable profiles, auto-update, backup, and restore |
| Centralized administration |
supervision, provisioning, management, and VPN centralization with WebAccess/DMP |
| Power supply |
9 to 48 VDC on two-pin terminal block |
| Power consumption with PoE PSE without Wi-Fi |
5.6 W idle, 6.5 W average, and 138.6 W maximum |
| Standby mode |
170 mW for PoE PSE version |
| Operating temperature |
-40 to +75 °C |
| Storage temperature |
-40 to +85 °C |
| Relative humidity |
0 to 95% |
| Protection index |
IP30 |
| Dimensions |
47 × 110 × 195 mm |
| Weight |
1,340 g |
| Housing |
robust metal chassis with grounding screws |
| Mounting |
wall or optional DIN rail mounting |
| Cybersecurity compliance |
EN 18031-1 |
| Electrical safety |
IEC 62368-1 |
| National approvals |
CE, UKCA, FCC, and IC |
| Operator approvals |
FirstNet and AT&T, with Verizon and T-Mobile available on project |
| Mechanical resistance |
EN 60068-2-27, EN 60068-2-64, MIL-STD-810G, and SAE J1455 |
| Climatic resistance |
EN 60068-2-1, EN 60068-2-2, EN 60068-2-14, EN 60068-2-78, MIL-STD-810G, SAE J1455, and NEMA TS2 |
| Environmental compliance |
REACH, RoHS 3, and WEEE |
| Transport certification |
E-mark |
| Size |
190x245x95mm
|
| Weight |
1490g |
| Features |
4G LTE / GPS, Ethernet RJ45, Serial Port, USB port |
| Mount options |
DIN Rail, Wall mount |
| Design |
Fanless |
| Protocoles |
MQTT, Modbus RTU, Modbus TCP |
| SKU |
ICR-4461S-1ND |
| Brand |
ADVANTECH
|
