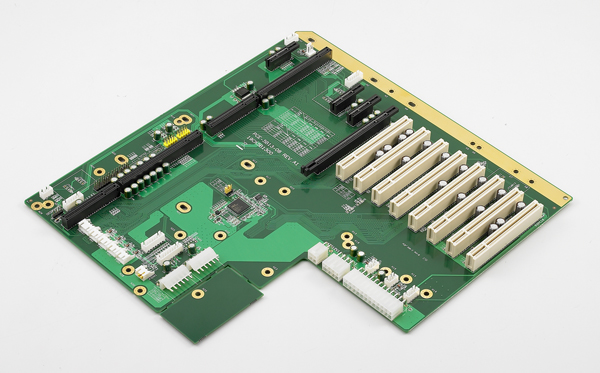

PCE-5B13-08A2E 13-Slot PICMG 1.3 Backplane, 4 PCIe, 8 PCI, RoHS

Advantech’s PCE-5B13-08A2E, 13-slot PICMG 1.3 backplane is engineered for high-performance system integration in industrial environments. Fully compliant with the SHB Express (PICMG 1.3) standard, it ensures long-term compatibility with both current and future technologies.

Key Features

• 13-slot backplane designed for a 14-slot chassis
• 1 dedicated CPU card slot (Single Board Computer)
• PCI Express slots: 1 x16 and 3 x1
• PCI slots: 8 x 32-bit / 33 MHz
• Compatible with a wide range of Advantech IPC chassis: IPC-510, IPC-610, IPC-611, ACP-4000, ACP-4010, ACP-4320, ACP-4360, and ACP-4340
• Scalable I/O bandwidth exceeding 10 GB/s
• RoHS compliant for improved environmental sustainability

This SHB backplane is an ideal foundation for building next-generation servers, workstations, and industrial platforms. It enables flexible integration of commercial I/O cards across PCIe, PCI-X, PCI, and ISA interfaces.
