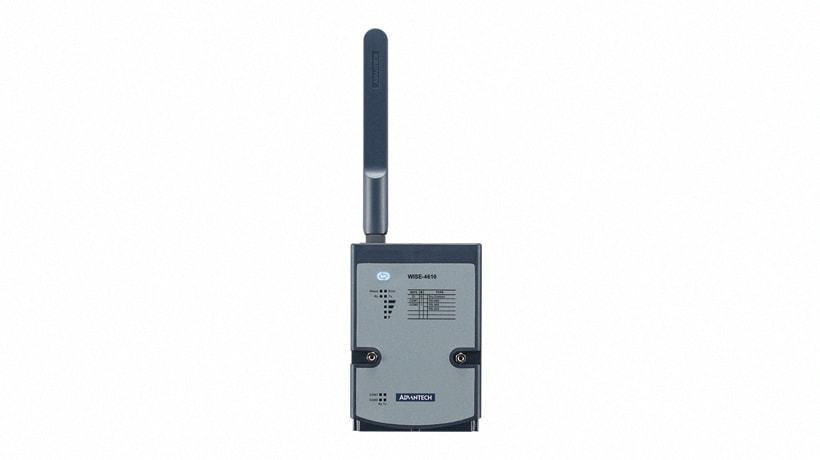

WISE-4610-EA Advanced Industrial LoRaWAN Module - EU868

WISE-4610 features a wireless sensor node based on LoRa network technologies targeting outdoor applications. Not only does it provide wireless communication coverage of 5 kilometers, it also has a long battery life due to the low power consumption of the LoRa network.

Support LoRaWAN wireless frequency with external detachable antenna
Application-ready I/O combination with optional M12 connectors, IP65
Wide voltage power input with 10 ~ 50VDC
Longer communication range
Better penetration through concrete and steel

Technical sheet

Ask for a quotation!

J+1 Chronopost delivery

Secured payment

23+ years experience

Experts team

Reknown brands

Sales department available

Monday to Friday, from 9am to 6pm

04 37 69 72 00

Characteristic	Value
LEDs	Status, Error, Tx, Rx, Battery/Signal Level
Certificats	CE, FCC Class A, IC, NCC
Consommation	0.5 W @ 24 VDC
Alimentation	10~50 VDC
Taux de transfert	50 kbps
Ports USB	1 x Micro-B USB
Humidité	5~95% RH (non-condensing)
Protection IP	IP65
Température max. en fonctionnement	-25~70 °C (-13~158 °F)
Température de stockage	-40~85 °C (-40~185 °F)
Humidité (stockage)	0~95% RH (non-condensing)
Alimentation	10~50 VDC
Montage	DIN 35 rail, Wall, Pole, Stack
Poids	0.5 kg
Dimensions	82 x 122 x 49 mm
Banque de fréquences	EU 863~870 (MHz), US 902~928 (MHz), AU 915~928 (MHz), AS 919~924 (MHz), JP 920~928 (MHz)
Technologies	LoRaWAN, Private LoRa
SKU	WISE-4610-EA
Brand	ADVANTECH
