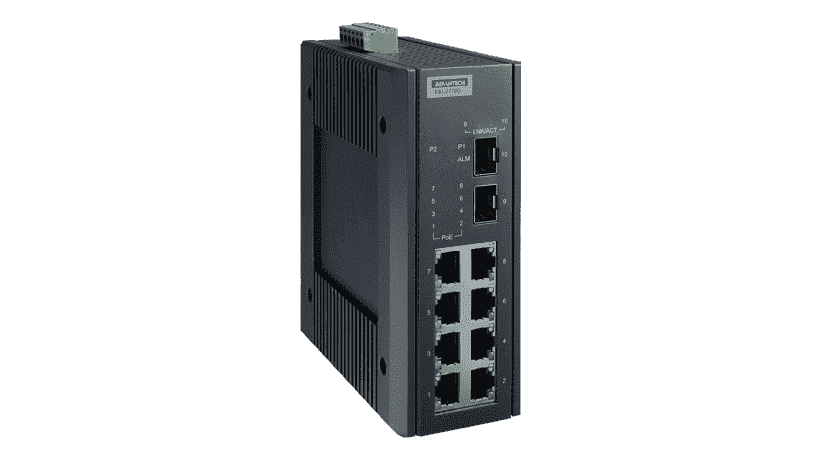

EKI-2710G-2FPI-A 8GE + 2G SFP Port Gigabit Unmanaged Industrial PoE Ethernet Switch

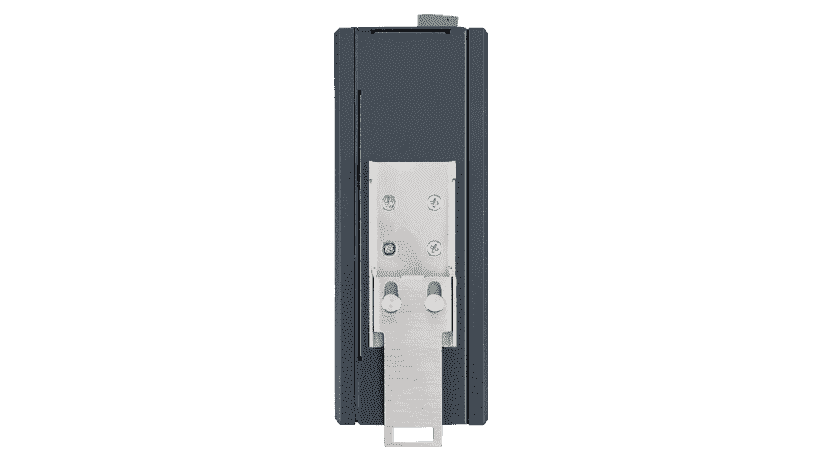

The EKI-2710G-2FPI-A is an unmanaged industrial Ethernet switch, equipped with 8 Gigabit Ethernet (GE) ports and 2 Gigabit SFP ports, supporting PoE (Power over Ethernet) technology. This model complies with IEEE 802.3at/af standards, providing up to 30 W of power per port, with a total power budget of 240 W. It is designed for demanding industrial environments, with an extended operating temperature range of -40°C to 75°C, and is mounted on a DIN rail with an IP30-rated metal enclosure for protection.

Here are some key features:

• 8 RJ-45 ports at 10/100/1000 Mbps and 2 SFP ports at 100/1000 Mbps.
• PoE+ support to power devices via Ethernet.
• Jumbo frame transmission up to 9 kB.
• Protection against current overload and reverse polarity.

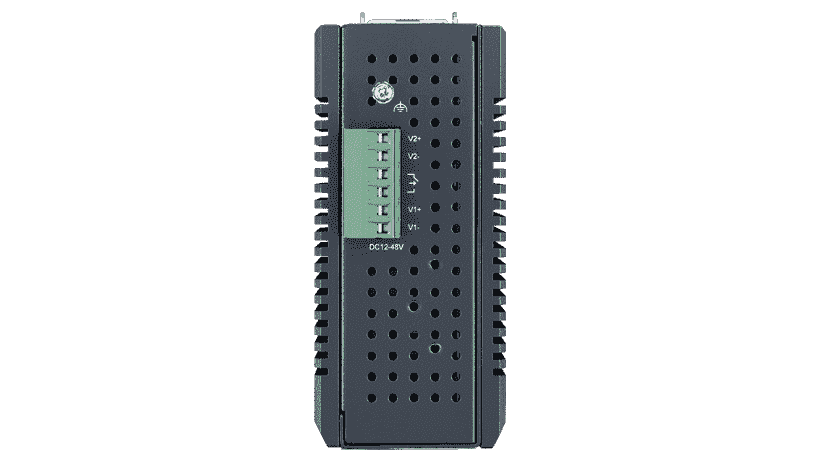

• Redundant power input from 12 to 48 VDC and relay output for alarm management.
• Resistant to harsh environments, with certifications for shock, vibration, and electromagnetic interference (CE, FCC, IEC).
• Switch offering 20 Gbps capacity and a transmission rate of 14.8 Mpps.

This model is particularly suitable for industrial applications requiring a robust and reliable Ethernet connection, with support for high-speed data transmission and the ability to directly power connected devices via PoE.
