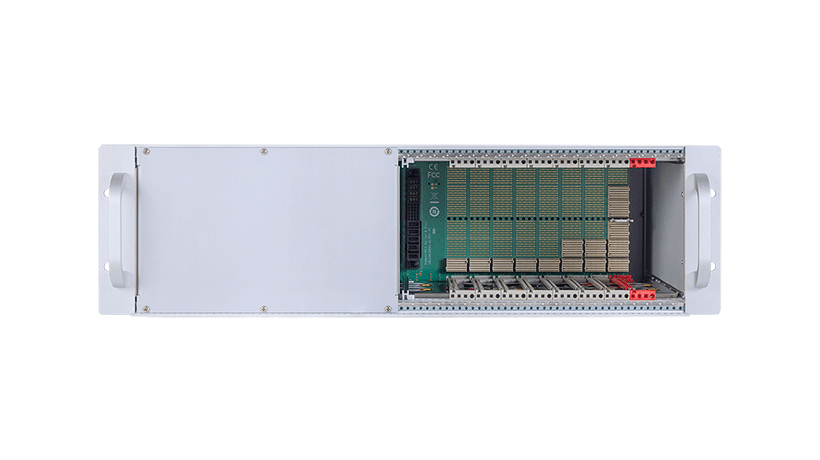

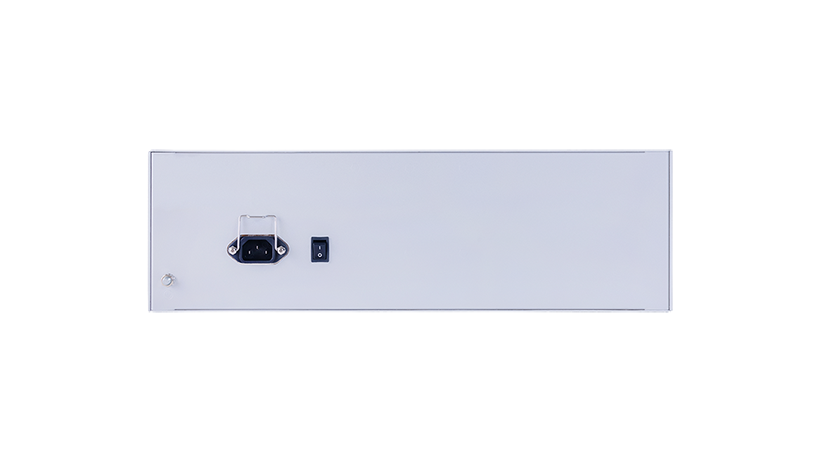

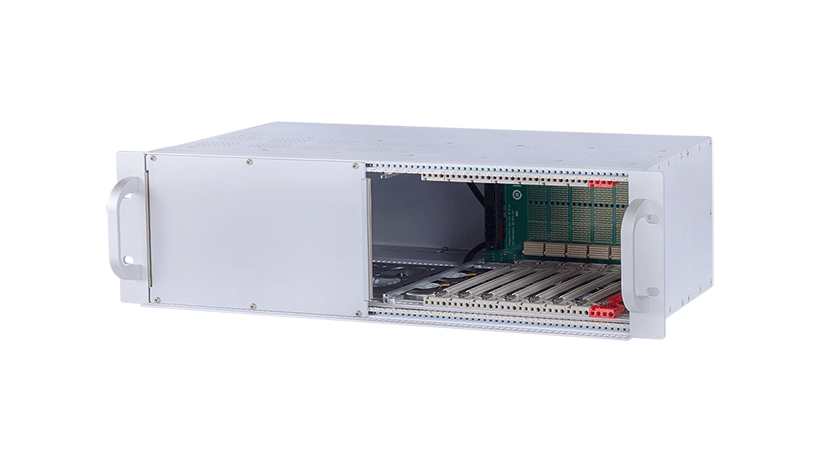

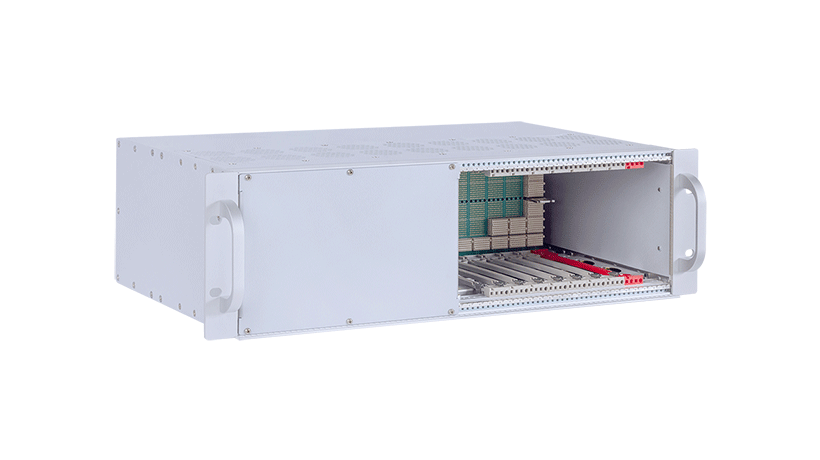

MIC-300A1-S1S1 84HP 3U CompactPCI chassis with 8-slot backplane

The MIC-300A1-S1S1 is designed to integrate robust modular systems intended for industrial automation, test and measurement equipment, telecommunications, or critical embedded applications.

Its CompactPCI Serial backplane allows for a processor card to be combined with seven peripheral cards and supports PCI Express Gen3, SATA Gen3, USB 2.0, USB 3.0, and Ethernet 10GBase-T communications.

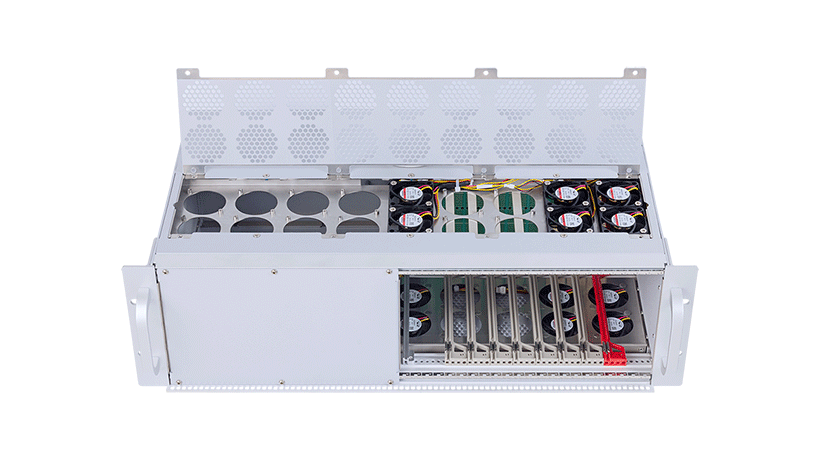

Its 3U 84HP architecture also offers free slots to integrate application-specific extensions, while its twelve fans ensure cooling for heavily equipped configurations.

Key features:

• 4U/3U height options and 84HP/44HP width with an 8-slot CPCI-S backplane
• efficient integrated cooling system
• supports PCIe (Gen3), SATA (Gen3), USB 2.0/3.0, and Ethernet 10GBase-T interfaces
• fully meshed backplane Ethernet connectivity
• compliant with PICMG CPCI-S.0 R2.0 standard

It is also suitable for extreme environments with temperatures ranging from -40 to +70 ℃ and humidity up to 95% at 40 ℃ (non-condensing).

Certification includes CE/FCC for EMC and safety standards.
