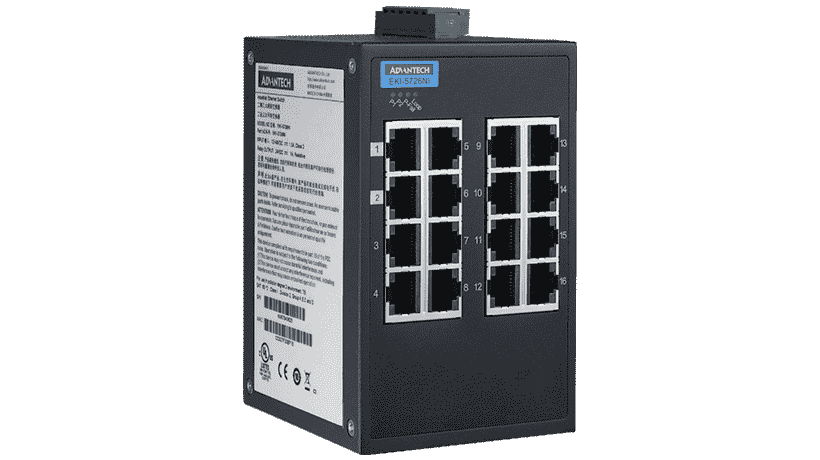

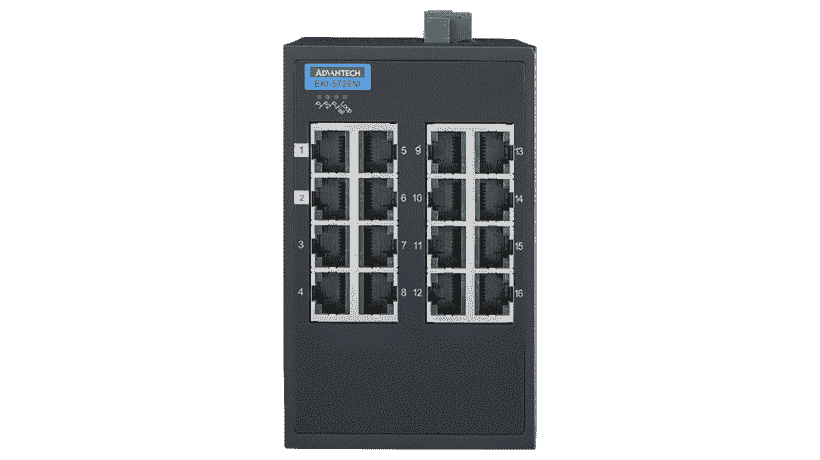

EKI-5726NI-A 16 port Gigabit Ethernet Switch

It also prioritizes traffic for reliable communication on PROFINET networks with PROFINET PTCP filtering.

The EKI-5726NI is an industrial Ethernet switch offering 16 Gigabit ports, designed for use in demanding environments. It supports 10/100/1000 Mbps speeds with auto-negotiation and includes EMS Level 3 protection against electromagnetic interference, making it particularly suitable for outdoor environments.

Key Features:

Connectivity: 16 RJ45 Gigabit Ethernet ports with Auto MDI/MDI-X support and PROFINET PTCP filtering for reliable communication on PROFINET networks.
Switching Performance: 32 Gbps capacity, with Jumbo frame support up to 9,216 bytes, and an 8K MAC address table.
Power Supply: Wide-range input from 12 to 48 VDC, with redundant inputs and relay output for failure signaling.
Durability: IP30 metal enclosure, DIN rail mountable, capable of operating in extreme temperatures from -40°C to 75°C.
Certifications: Compliant with LVD 62368, CE, FCC Class A standards, and resistant to shock, freefall, and vibration (IEC standards).
With a MTBF (Mean Time Between Failures) of over 2.7 million hours, this device ensures exceptional durability and prioritized communication for automation protocols.
